Samsung SCL770 - Loading

Samsung Electronics1-14

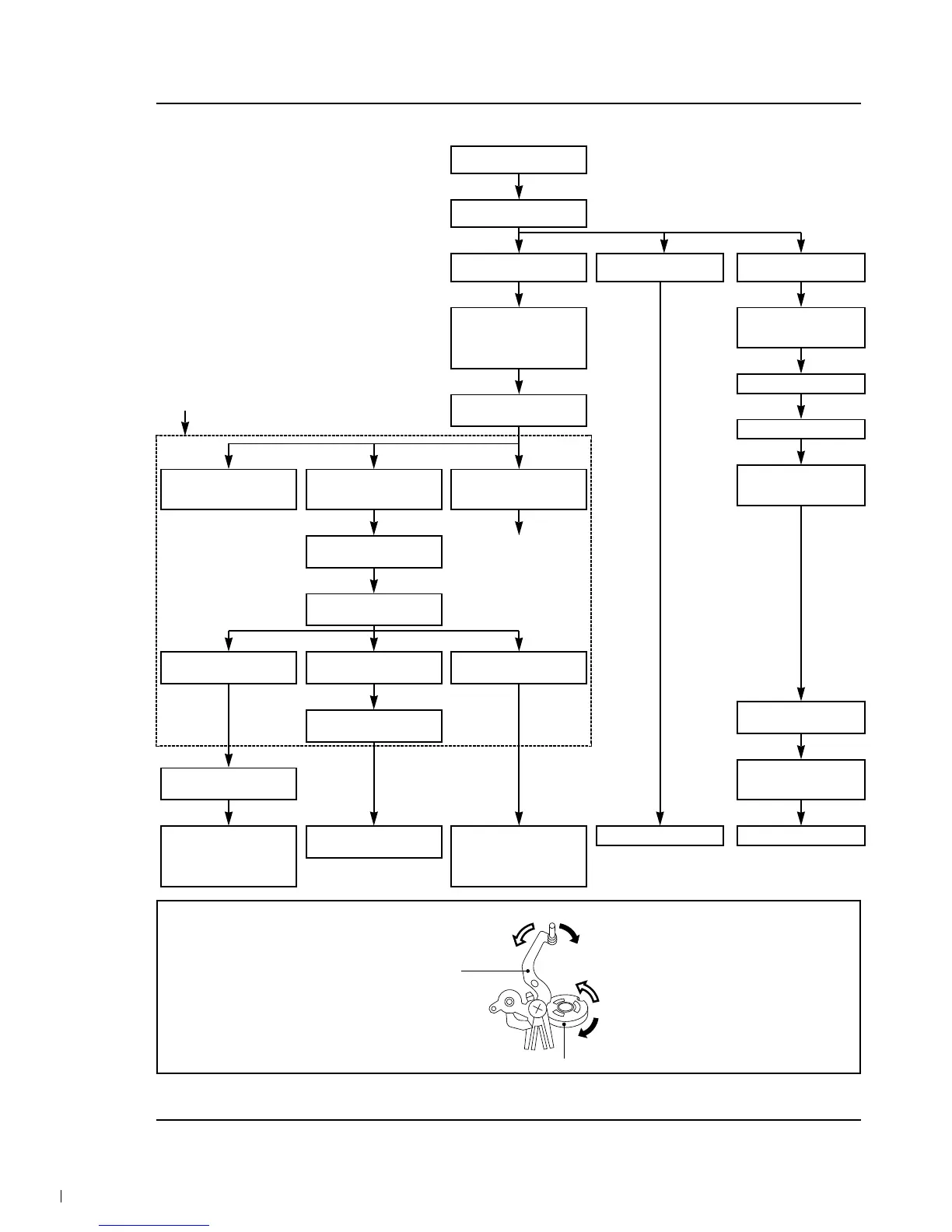

Operation
1-4-2 Loading
Fig. 1-14
Cassette in
Housing down.
Motor Loading rotates. Drum rotates forward.
Motor Capstan rotates in
reverse.
Gear Wheel Motor and
Gear Worm Loading, Gear
Loading, Switch Mode, Gear
Cam Main rotates.
Gear Capstan and Belt
Timing, Gear Pulley, Gear
Idler rotates.
Chassis Sub moves in
direction of arrow.
Chassis Sub stops at loading-
complete postion and
contacts rail of Main Chassis.
Arm Loading S,T move in
direction of arrows and Pole
Base S,T Slide.
Arm Tension and Arm
Review, Arm Pinch Roller
Shift.
Motor Loading stops slight-ly,
and then rotates forward.
Slider Main moves to left.
Pole Base S, T attach to
Base Drum.
Motor Loading stops.
Pinch Roller attaches to
Capstan Shaft.
Pinch Roller rotates back-ward
and then forward.
Arm Pinch Roller is rotated
by Slider Main, and Pinch
Roller detaches from
Capstan Shaft.
Motor Loading rotates in
reverse and then stops.
Arm Tension rotates in direc-
tion of arrow slightly, and
Lever Brake S, Brake Main T
contact Reel for braking.
Drum stops. Motor Capstan stops.
Brake Sub S Ass’y released.
Reel S rotates.
Motor Capstan stops.
Motor Capstan rotates for-
ward slightly (for shifting
idler to Reel T) and stops.
Reel S rotates counterclock-
wise
slightly, and then Reel
Motor Capstan rotates back-
ward slightly and forward.
ARM TENSION
* This operation makes tape loading.
