Samsung SCL770 - Sub Chassis

Samsung Electronics 1-5
Operation
Mode Chassis Sub
OFF ON
EJECT
UNLOAD
SUB LOAD
STOP
PLAY

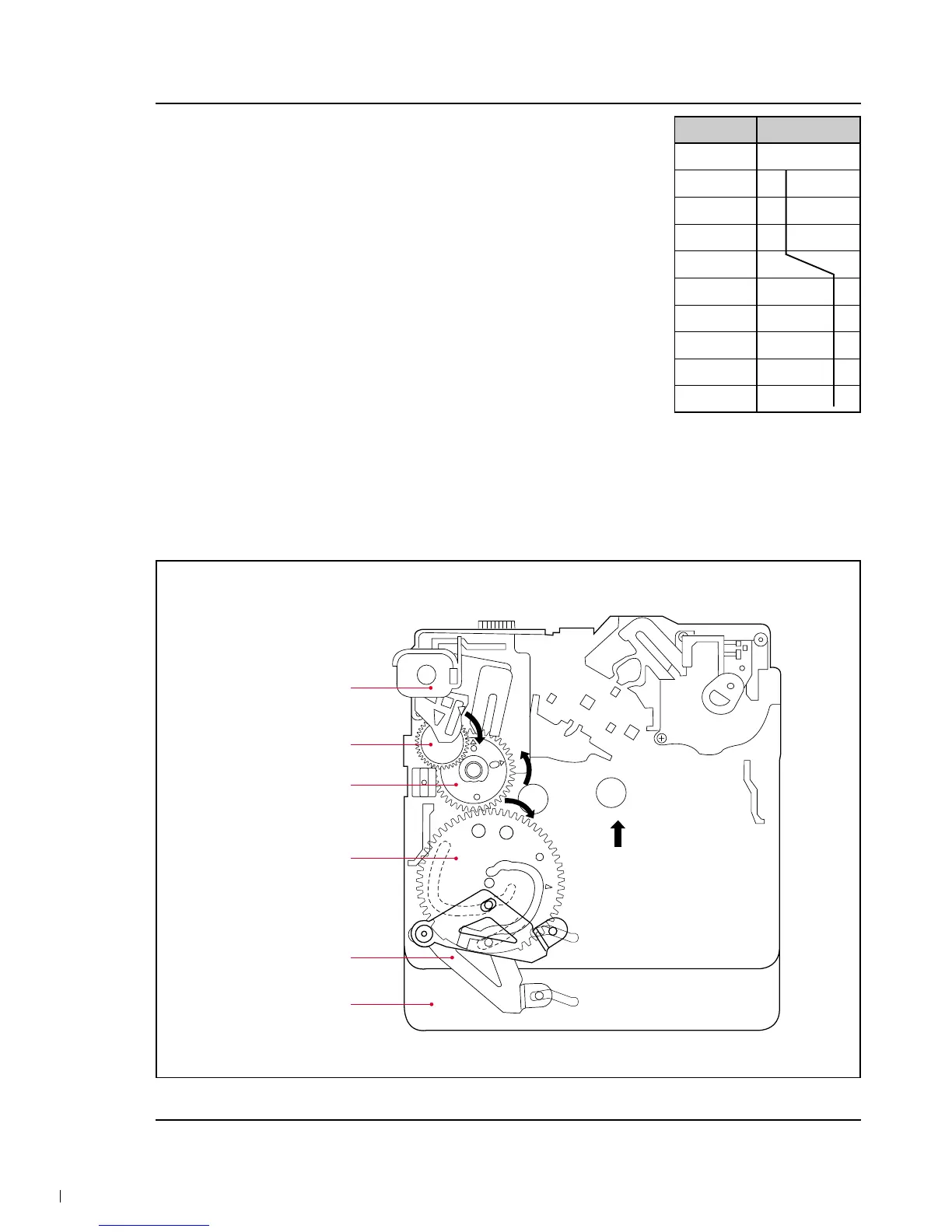

Fig. 1-5
MOTOR LOADING 1
GEAR LOADING 2
SWITCH MODE 3
GEAR CAM MAIN 4
LEVER CAM 5
CHASSIS SUB 6
1-3-2 Sub Chassis
Motor Loading 1 rotates.
↓
Gear Loading 2 rotates.
↓
Switch Mode 3 rotates.
↓
Gear Cam Main 4 rotates.
↓
Lever Cam 5 turns.
↓
Chassis Sub 6 slides.
