Samsung SCL770 - Pole Base S, T

1-3-7 Pole Base S, T
Motor Loading 1 rotates.
↓
Chassis Sub 2 moves.
↓
Arm Loading S 4 and T 5 are actuated by Cam Curve of Slider Main 3 .
↓
Pole Base S 6 , T 7 slides along S rail and T rail.
↓
Slider Main 3 moves to left.
↓
Pole Base S 6 , T 7 attaches to “V” groove of Main Chassis 8 .
Samsung Electronics1-10
Operation
Mode Pole Base S,T
OFF ON
EJECT
UNLOAD
SUB LOAD
STOP
PLAY

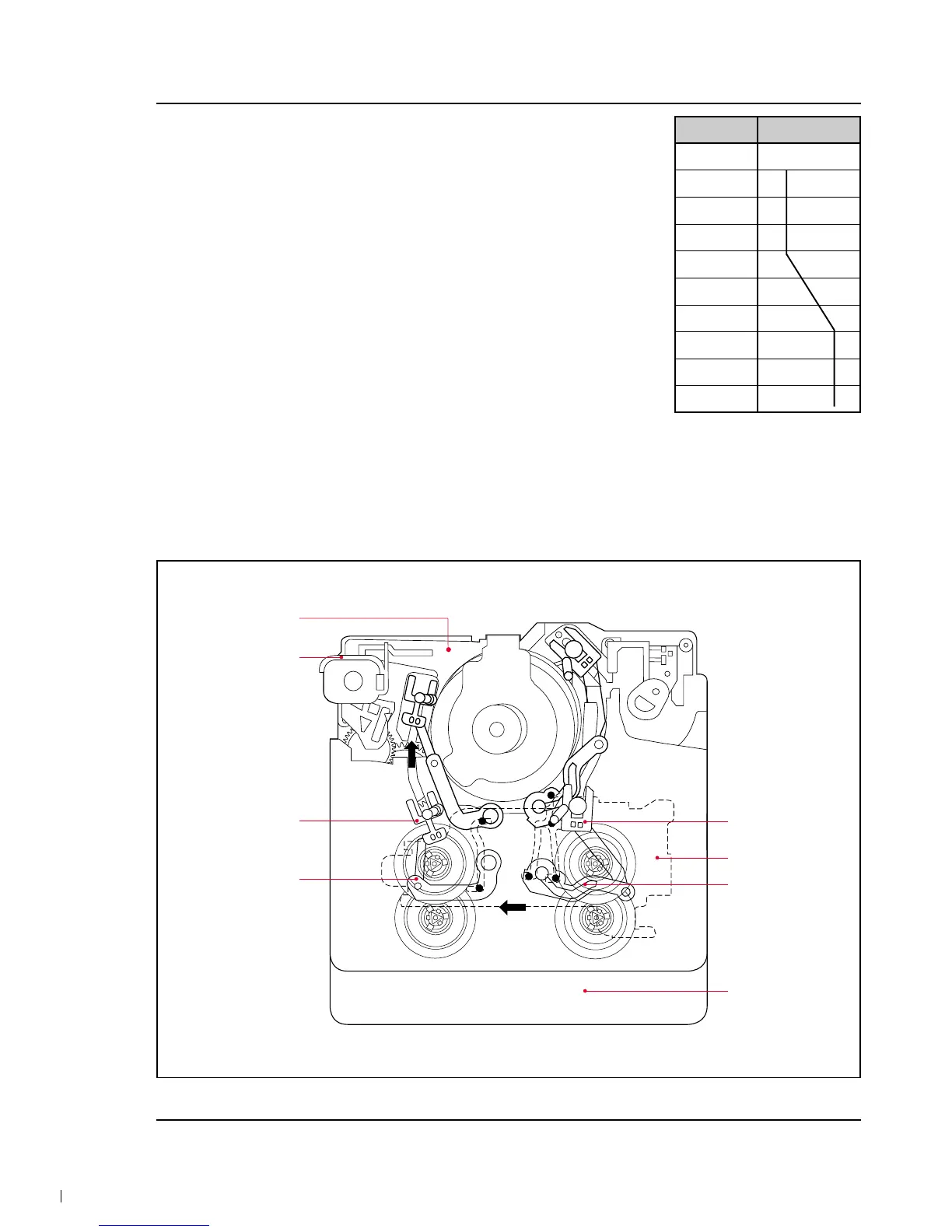

Fig. 1-10
MAIN CHASSIS 8
MOTOR LOADING 1
POLE BASE S 6
ARM LOADING S 4
7 POLE BASE T
3 SLIDER MAIN
5 ARM LOADING T
2 CHASSIS SUB
