Samsung SCL770 - Idler & Holder FPC Disassembly and Reassembly

3-4 Idler & Holder FPC
3-4-1 Disassembly
1. Remove 2 screws 1 , then lift the Cover Reel
Ass’y 2 in the direction of arrow.
2. Lift the Idler Ass’y 3 from the Pin 4 .
3. Remove 1 screw 5 , then lift the Holder FPC 6 .
3-4-2 Reassembly
1. Fit the Idler Ass’y 3 into the Pin 4 .
2. Mount the Cover Reel Ass’y 2 to the Deck Ass’y
in the reverse direction of arrow.
3. Secure with 2 screws 1 .
4. Mount the Holder FPC 6 and then secure with 1
screw.
Samsung Electronics3-4
Disassembly and Reassembly

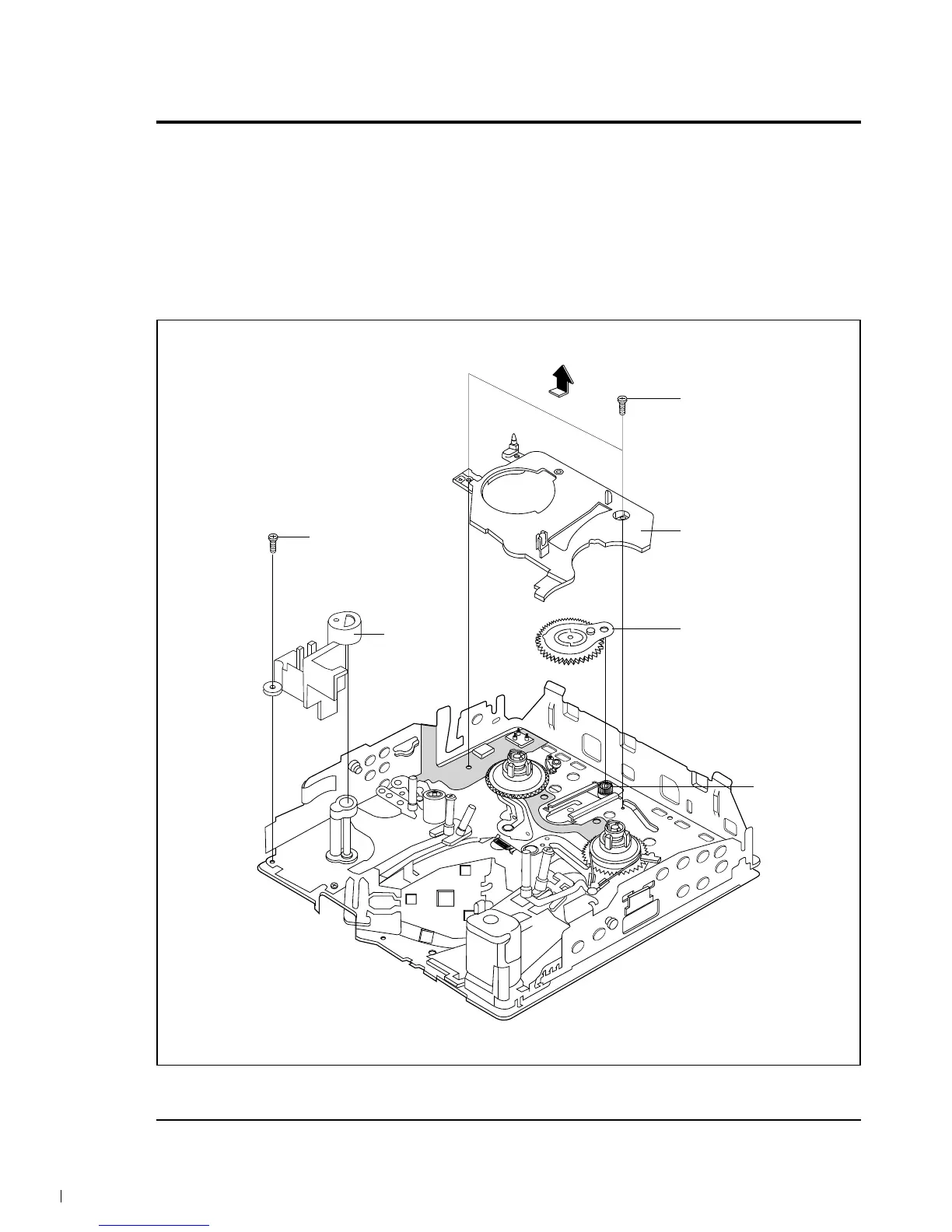

Fig. 3-4 Idler & Holder FPC
1 2 SCREW
2 COVER REEL ASS'Y
3 IDLER ASS'Y
4 PIN
5 1 SCREW
6
HOLDER
FPC
