Samsung SCL770 - Housing Disassembly and Reassembly

Samsung Electronics3-2
Disassembly and Reassembly
3-2 Housing

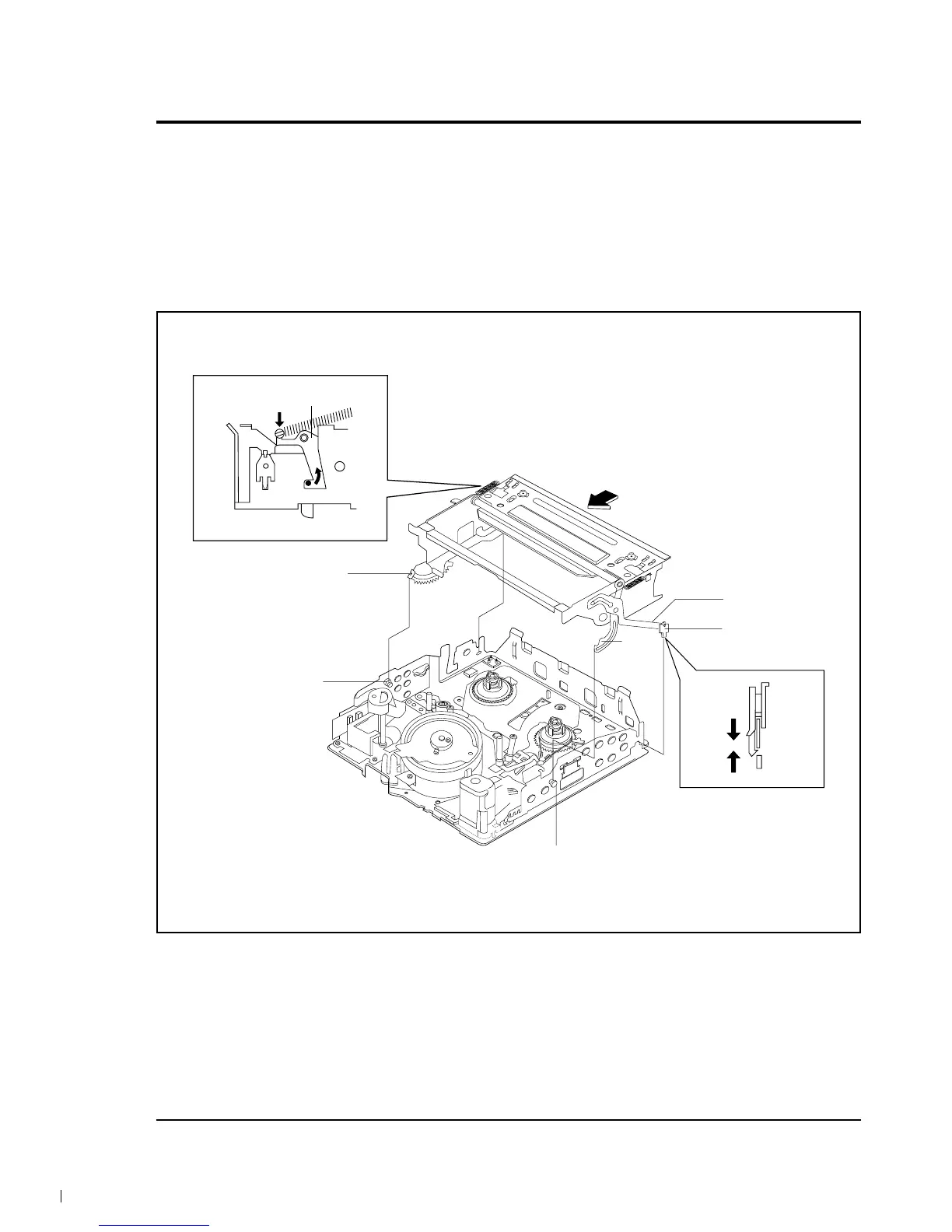

Fig. 3-2 Housing
3-2-1 Disassembly
To disassembly the Housing Assembly :
1. Press the lever (see arrow, figure “A”). Turn the
Lever Lock 1 in the direction of arrow “B”.
2. Unlock the hook of the Roller Sub 2 and then
separate the Lever 3 from the Sub Deck.
3. Separate the Arm L 4 and Arm R 5 from the
Pin Arm 6 and lift the Housing Ass’y.
3-2-2 Reassembly
1. Mount the Arm L 4 and Arm R 5 to Pin Arm
6 .
2. Mount the Roller Sub 2 to the Sub Deck.
Then put the hook into the slot, while sliding it
as shown in figure “B”.
C
3 LEVER
2 ROLLER SUB
6 PIN ARM
A
B
4 ARM L
5 ARM R
< Fig . A >
< Fig . B >
1
LEVER
LOCK
6 PIN ARM
