Samsung SCL770 - Mode Position Change; Cassette in Cassette down

Samsung Electronics 1-13
Operation
1-4-1 Cassette in Cassette down
1
3
7
2
4
5
6

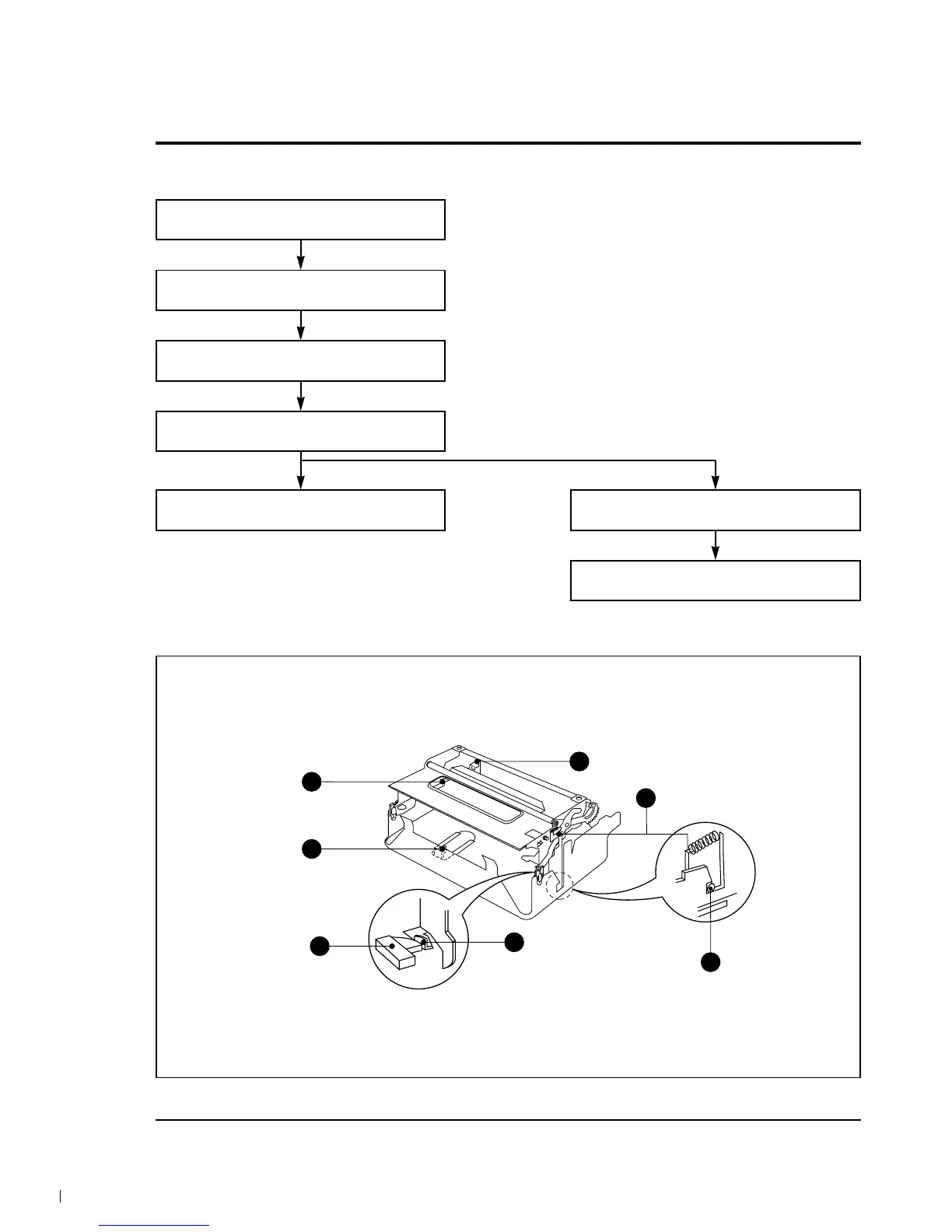

Fig. 1-13
Cassette in
Catch 1 of Housing releases the
cassette - lid lock.
Housing down.
Chassis Sub’s front edge 2 opens
cassette lid.
Key release 3 of Chassis Sub releases
reel lock of cassette tape.
Lever Locker 4 hooks on Chassis Sub
Catch 5 , and Housing is locked.
Lever Locker’s Front Edge 6 turns on
S/W Push 7 .
1-4 Mode Position Change
