Samsung SCL770 - Drum Disassembly and Reassembly

Samsung Electronics 3-3
Disassembly and Reassembly

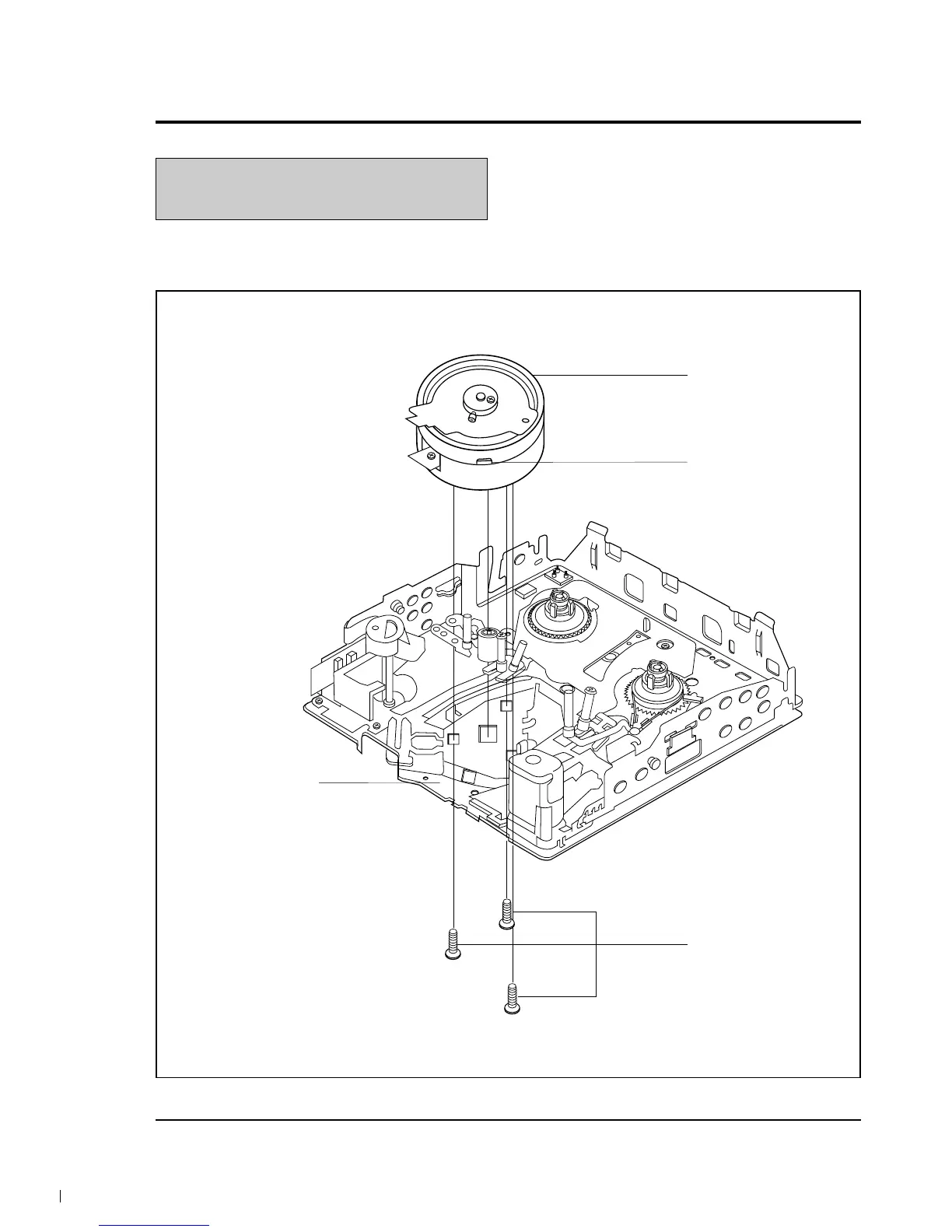

Fig. 3-3 Drum
3 DRUM ASS'Y
4 HEAD TIP
2 3 SCREWS
1 MAIN CHASSIS
3-3 Drum
3-3-1 Disassembly
1. Remove 3 screws 2 , then lift the Drum Ass’y 3 .
3-3-2 Reassembly
1. Mount the Drum Ass’y 3 to the Main Chassis 1
and then secure with 3 screws 2 .
Note : Be extremely careful when removing the
Drum 3 . Do not touch the Head tip 4 during
servicing.
