Samsung Electronics 1-3
Operation
1-2 Switch Mode
Modes 1 2 3 Rotation angle of Switch Mode Mechanical status
EJECT 0 0 1 -30° ~ -22.5° Ejected
BL 2 0 0 0
UNLOAD 0 1 1 -2.5° ~ 5° Standby Cassette down
BL 3 0 0 0
SUB LOAD 0 1 0 97.5° ~ 173° Chassis Sub loading
BL 4 0 0 0
STOP 1 1 0 202° ~ 208° Stopped
BL 5 0 0 0
PLAY 1 0 0 262.5° ~ (287°) In REC/CUE/REV/FF/REW/PAUSE

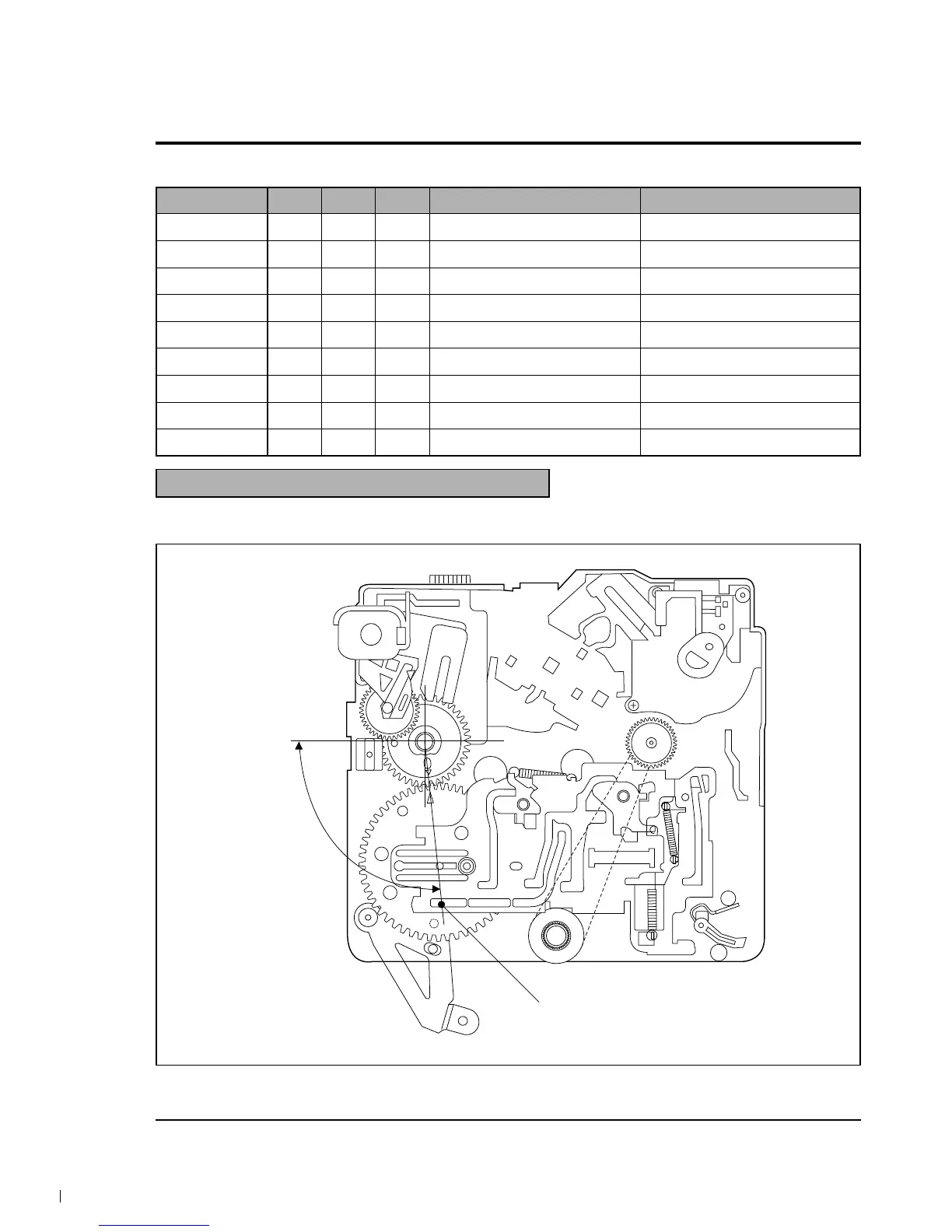

Table 1-1 Switch Mode Code
NOTE : 0 : Opened 1 : Connected with COMMON
Fig. 1-3
REFERENCE LINE OF SWITCH MODE AND
GEAR CAM MAIN
