Samsung Electronics 2-1
2. Adjustment
2-1 Operation Without Housing Assembly

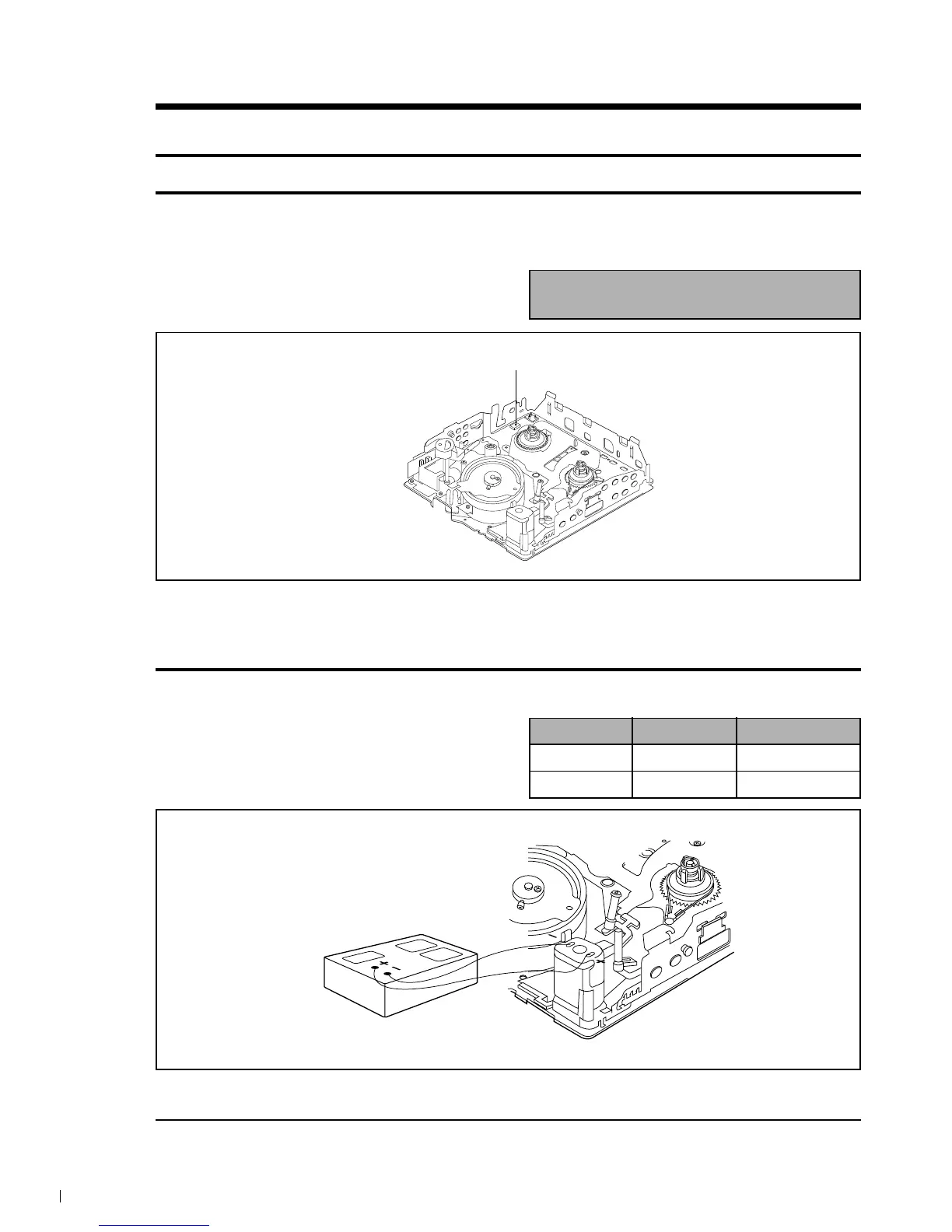

Fig. 2-2
Fig. 2-1
1. Remove the Housing Ass’y from the recorder
unit.
2. Connect the mechanical chassis to the recorder
circuit to supply voltage.
3. Set to Unload mode.
4. Press the S/W Push (Keep ON status) and make
loading.
5. Push the Play key.
Drum side Opposite side Movement of Chassis
+ – Loading
– + Unloading
Table 2-1
2-2 Setting Mechanical Mode (Without Recorder Circuit)
1. Set the power-supply output to approx. 3V.
2. Choose the polarity (depending on whether
loading or unloading).
3. Supply the voltage to the Motor Loading, and set
to the desired mode.
Note : For the removals of the Housing Ass’y,
refer to 3-2.
S/W PUSH
CONNECTED TO THE
RECORDER CIRCUIT
