Samsung Electronics2-4
Adjustment

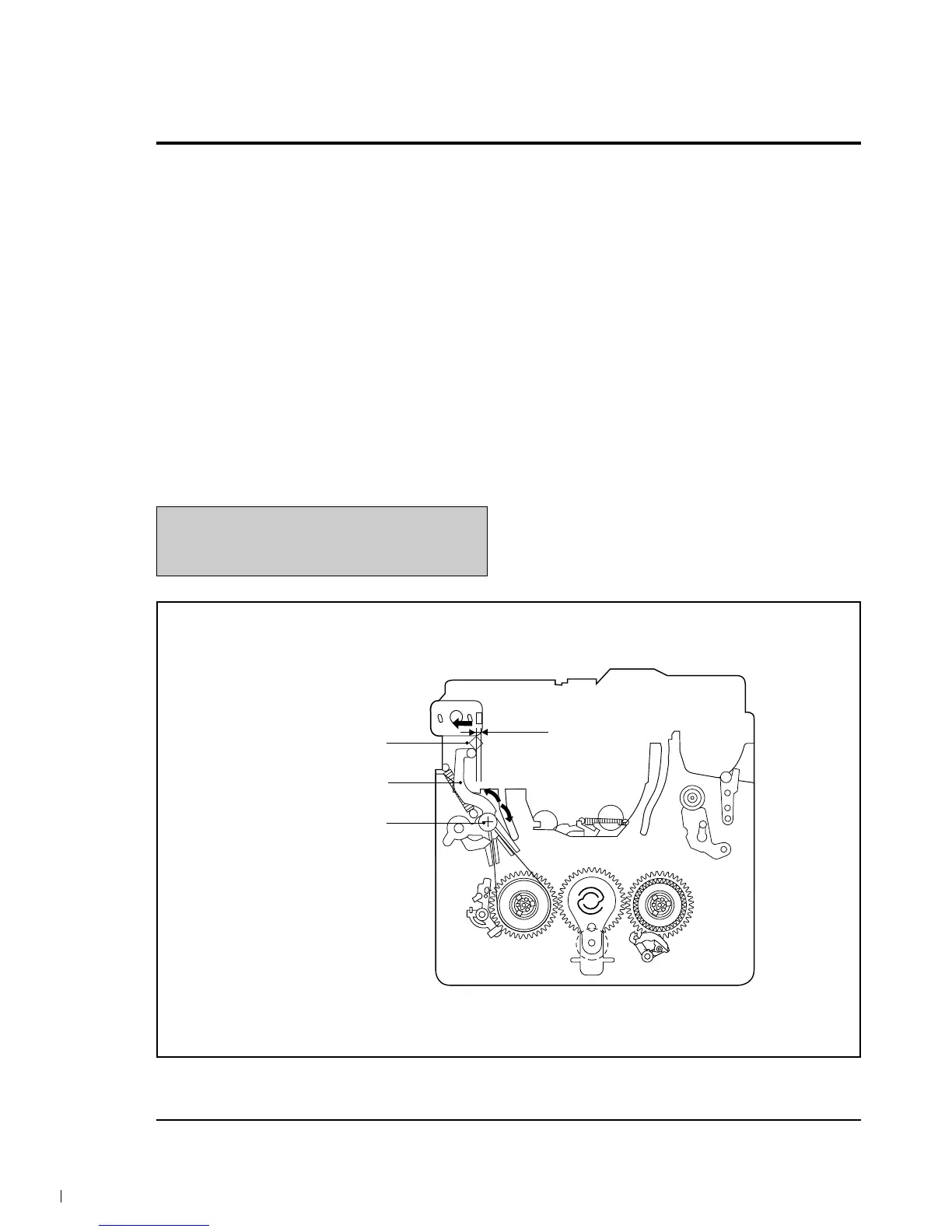

Fig. 2-5
2-4-1 Tension Regulator Adjustment
2-4-1 (A) DISASSEMBLY
1. Refer to 3-2 to remove the Housing Ass’y.
2-4-1 (B) ADJUSTMENT
1. Set to PB mode (without cassette tape).
2. Check that the overlap between external surface
of Chassis Sub and external surface of Arm
Tension is
0 ~ 1mm. (Fig. 2-5)
3. If necessary, proceed to step 4.
4. If the Arm Tension 1 is located inside the
position specified, adjust the Band Adjust
Tension 2 toward arrow A.
If it is located outside, adjust toward arrow B.
2-4-1 (C) REASSEMBLY
1. Refer to 3-2, to mount the Housing Ass’y.
Hole of Holder Loading
ARM TENSION 1
BAND ADJUST TENSION 2
C
B
A
0~1mm
Note :
Check if the arm tension can be moved
toward arrow C in PB mode. Use the tape which
is fed to the end.
2-4 Mechanical Check and Adjustment
