3-10 Motor Loading, Gear Loading
3-10-1 Disassembly
1. Remove 2 screw 1 and the 2 Hooks 2 .
2. Lift the Motor Loading Ass’y 3 to remove.
3. Lift the Gear Loading 6 .
3-10-2 Reassembly
1. Mount the Gear Loading 6 .
2. Mount the Motor Loading Ass’y 3 so that the
1 Boss 4 and 2 Hooks 2 of the Motor-Loading
Ass’y 3 are inserted into the Main Base.
3. Secure 2 screw 1 .
Samsung Electronics3-10
Disassembly and Reassembly

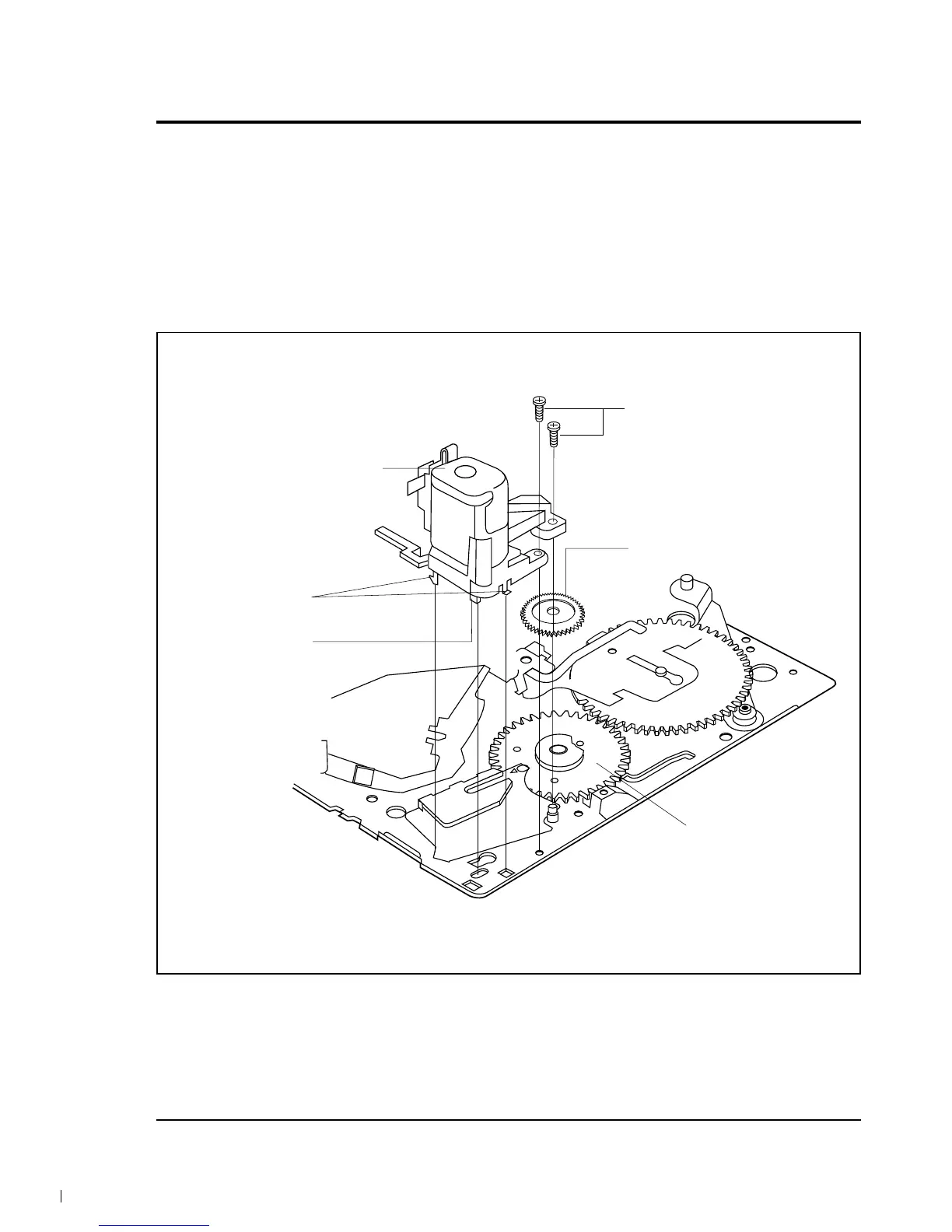

Fig. 3-10 Motor Loading, Gear Loading
1 2 SCREW
6 GEAR LOADING
3 MOTOR LOADING ASS'Y
2 2 HOOKS
4 BOSS
5 S/W MODE ASS'Y
