Mechanical Disassembly

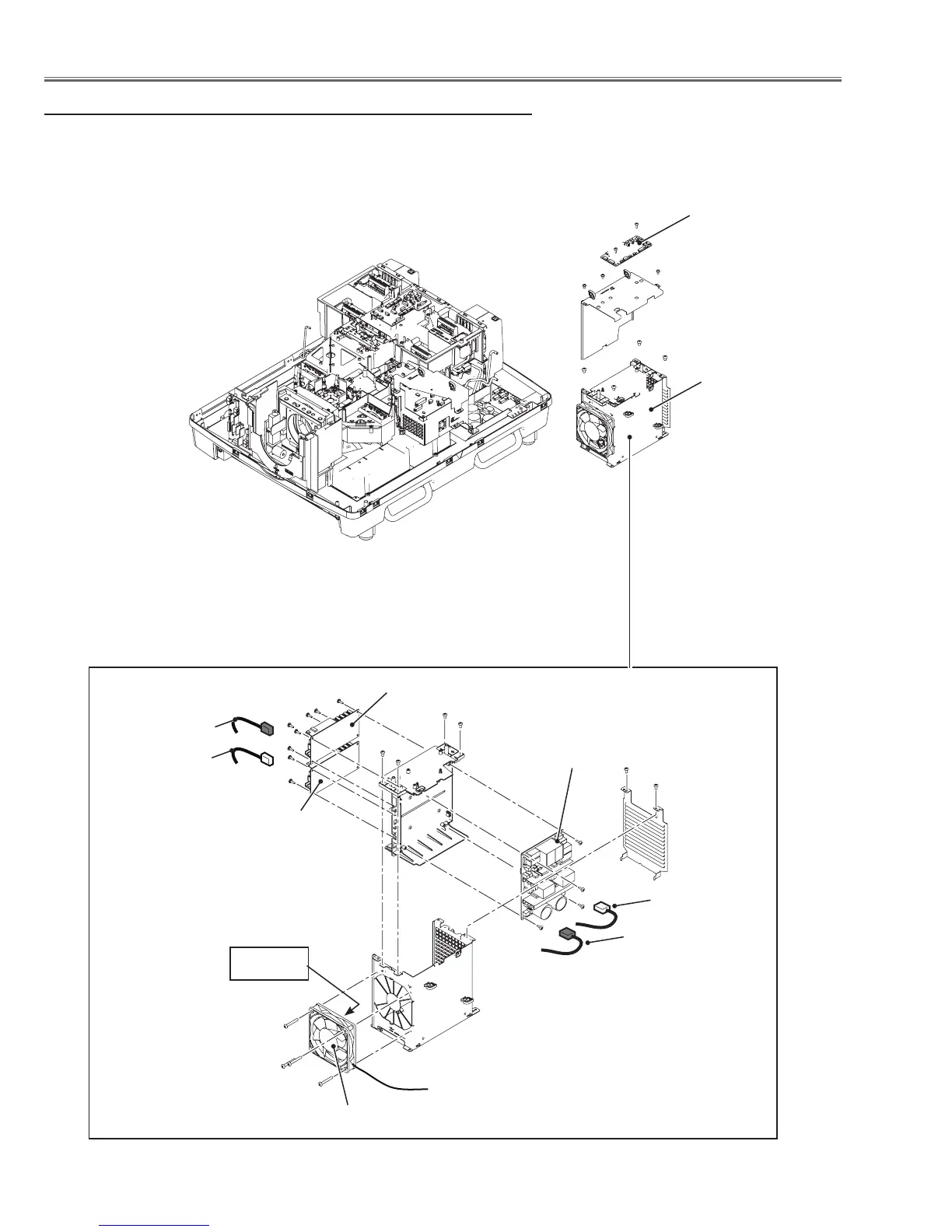

7 PFC-1 & Ballast-1/2 box removal
1 Remove 2 screws-A(T3x8) to remove the PFC Net 1 board.
2 Remove 3 screws-B(M3x6) to remove the shield case cover
3 Remove 4 screws-C(M4x6) to remove the PFC-1 & Ballast-1/2 box.
PFC Net 1 board
A
A
B
B
B
C
C
C
PFC-1 & Ballast-1/2 box
PFC-1 board
FN907
Ballast 1 board
Ballast 2 board
C
(M3x6)x2
(T3x8)x4
(M3x6)x4
(T3x8)x4
(T3x8)x4
(M4x30)x4
Label side
White connector
Black connector
White connector
Black connector
To: K36G
