3 Loading the Ribbon and Media
44
S84-ex/S86-ex Operator Manual

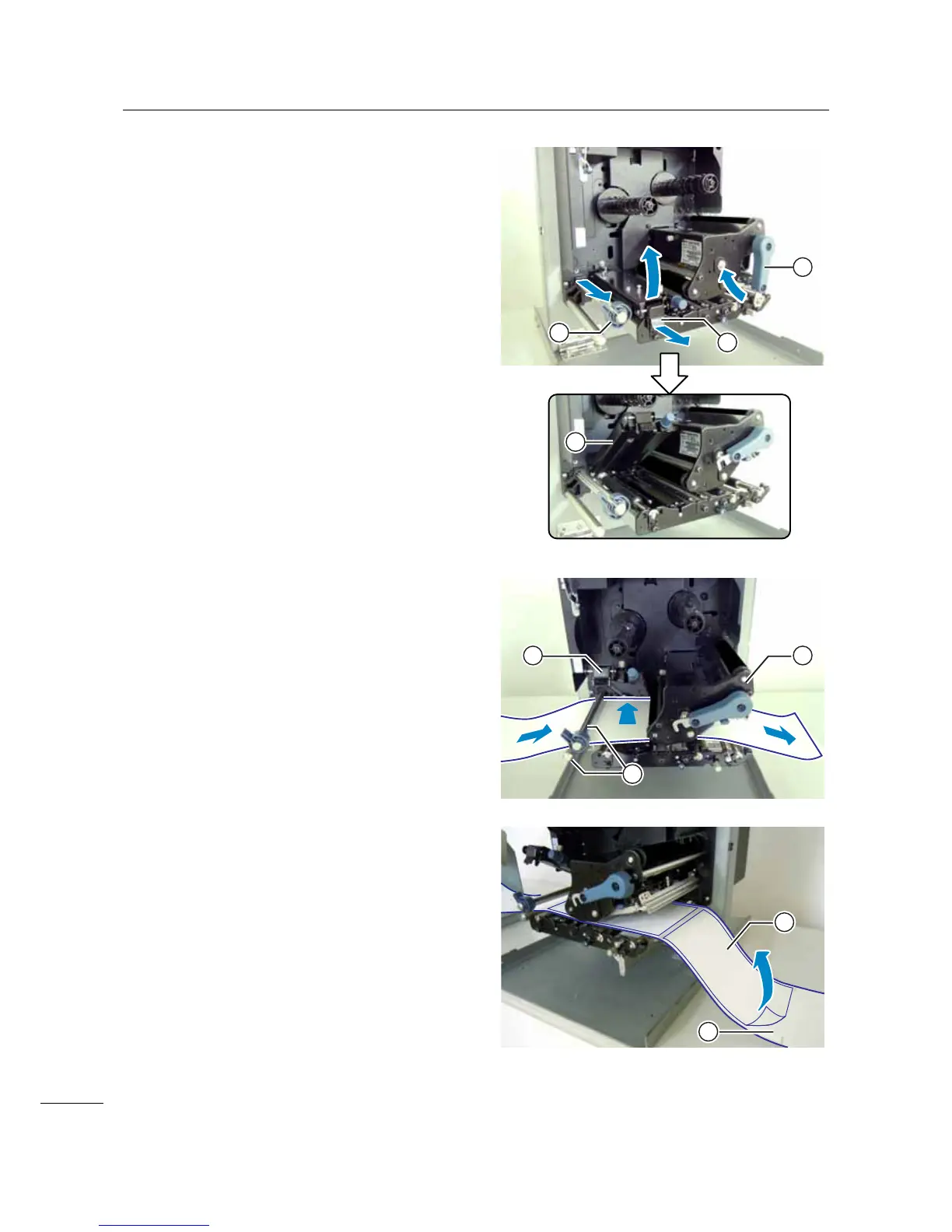

2 Turn the head lock lever clockwise to
unlock the print head.
3 Pull the feed lock latch to unlock the
feed roller and media sensor assembly
.
The feed roller and media sensor assembly will flip
open.
4 Pull the media guide away from the
printer.
5 Pass the media between the media shaft
, below the feed roller and media
sensor assembly , and the print head
assembly and extend it out the
discharge outlet.
Make sure that the end of the media extends out the
discharge outlet.
6 Push the media until the innermost edge of
the media lightly touches the printer center
frame.
7 Pull the label out from the discharge outlet.
Remove about 30 cm (11.8”) of labels
from the liner .
