SATO S84 - Operation and Configuration

3 Loading the Ribbon and Media
45
S84-ex/S86-ex Operator Manual

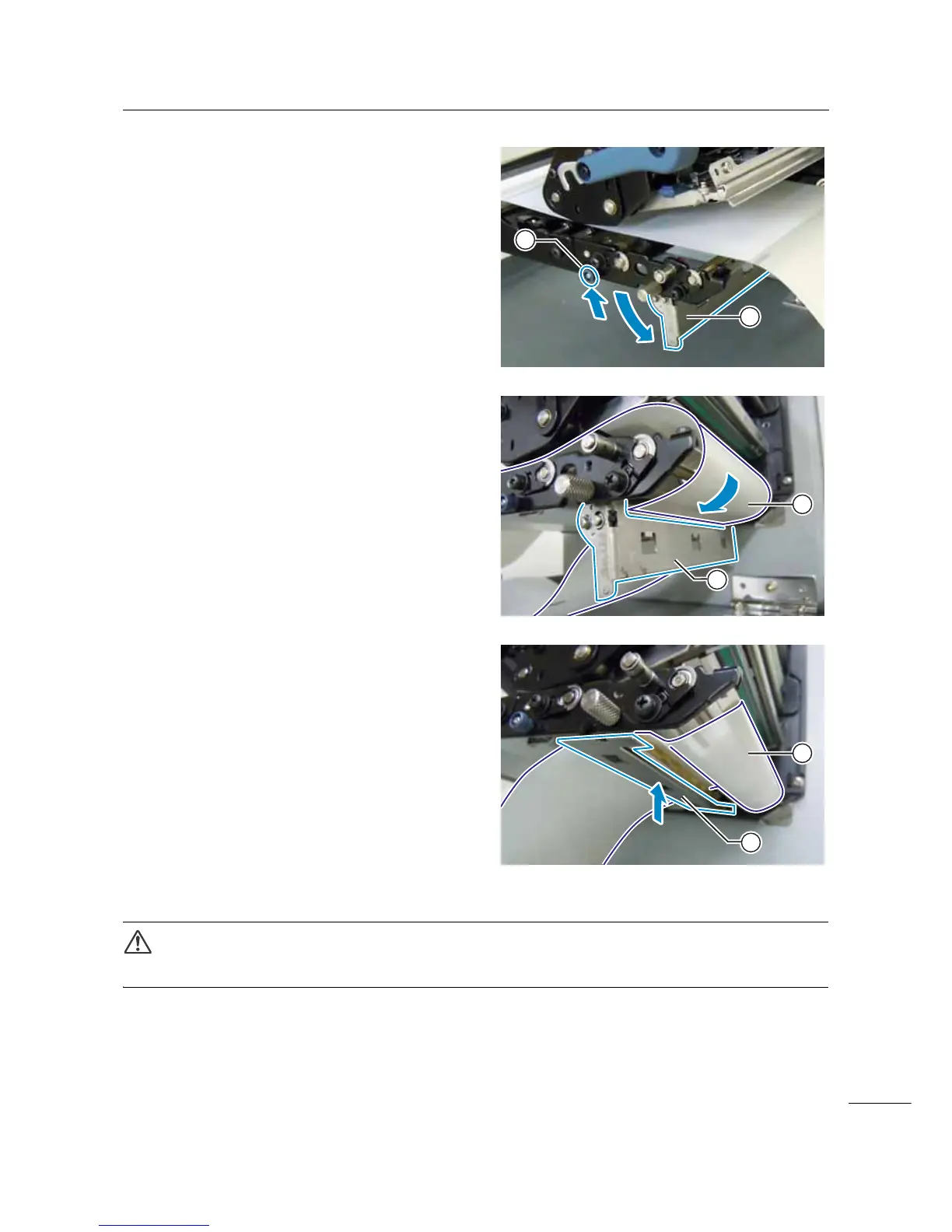

8 Push the pressure roller release tab  up
to release the pressure roller plate .
9 Pass the liner  through the gap of the
pressure roller plate .
10 Push the center of the pressure roller
plate  to latch it in place.
11 Turn the head lock lever counterclockwise
to lock the print head.
12 Close the top cover.
13 After loading the media and ribbon, perform
a test print to make sure that the media is
loaded correctly.
Refer to the Section 4.2.16 Test Print Mode for
details on how to perform a test print.
CAUTION
• When closing the top cover, be careful not to pinch your fingers.
