Application-related measure:
• Using an operator in the PLC program, the activation of the outputs while bypassing the
alarm state for this time is prevented.

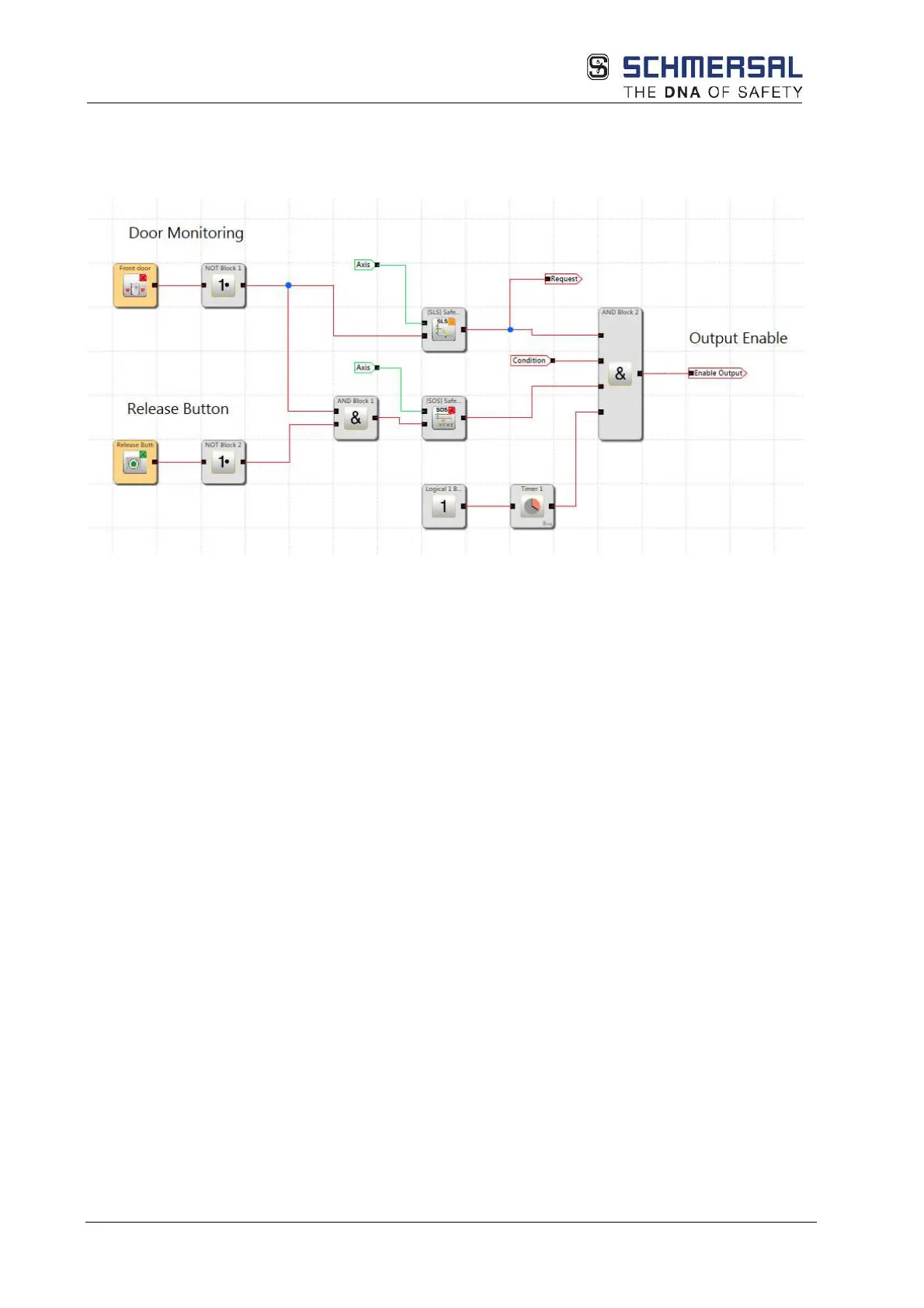

Example 1:
• The enable function for the outputs (AND function) is also linked to a "reset timer". This
operator prevents the activation of the outputs for t > 3 sec after a reset => the renewed
action of time monitoring is safeguarded.
