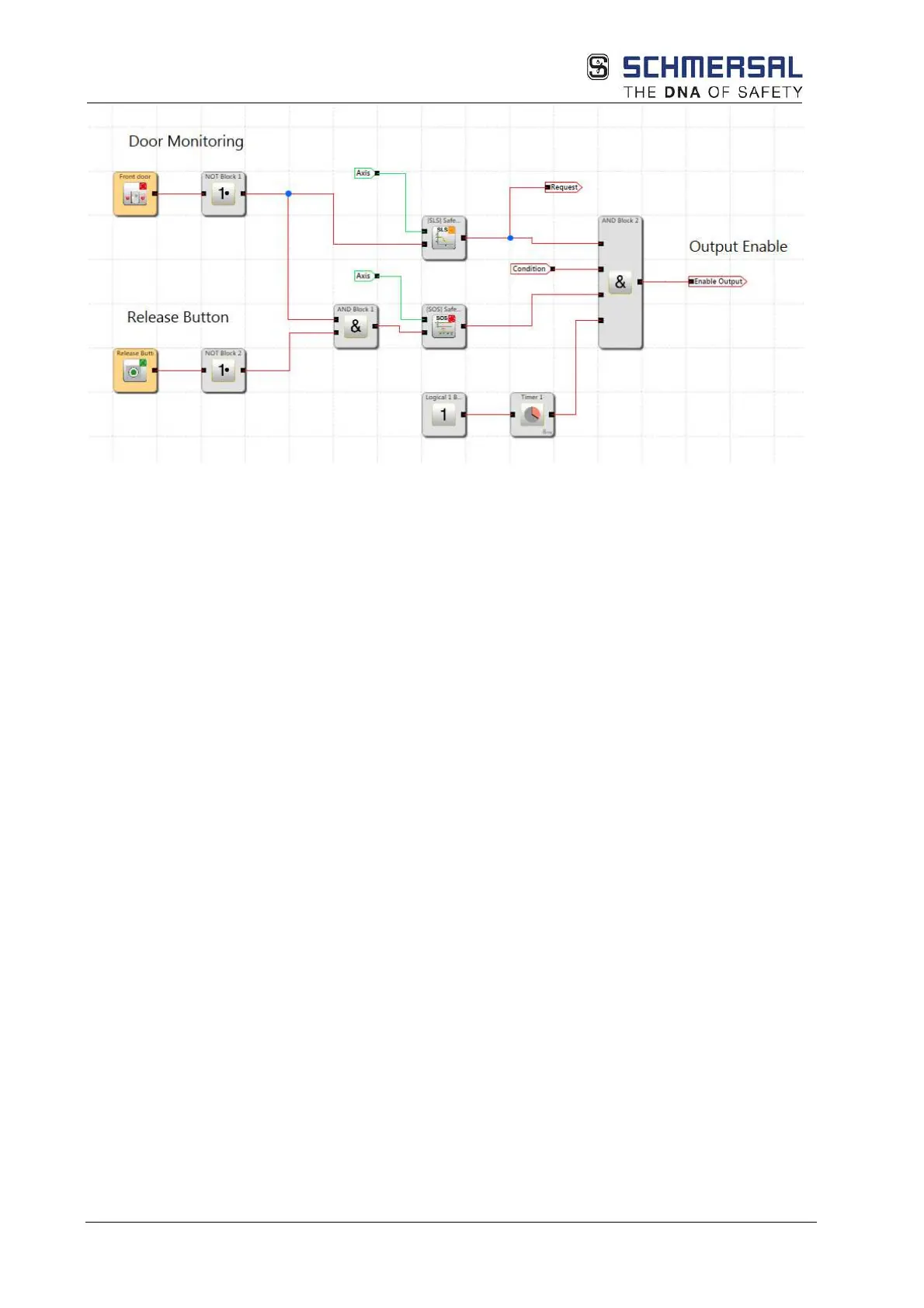

Example 2:
• The enable function for the outputs (AND function) is also linked to FF. This operator
prevents the activation of the outputs after a reset if there is a fault present in the input
circuit. The outputs are only enabled after an error-free input signal has been applied
once.
