Installation manual
HB-37420-810-01-25F-EN PSC1-C-100 Installation manual - V2.2.docx Page 82 of 201
Version: 25F
Q0_P
X21
X12
Q1_N
Q2_P
Q3_N
NC
NC
Y0
Y1
X13
I12
I13
T0
T1
L +
L -

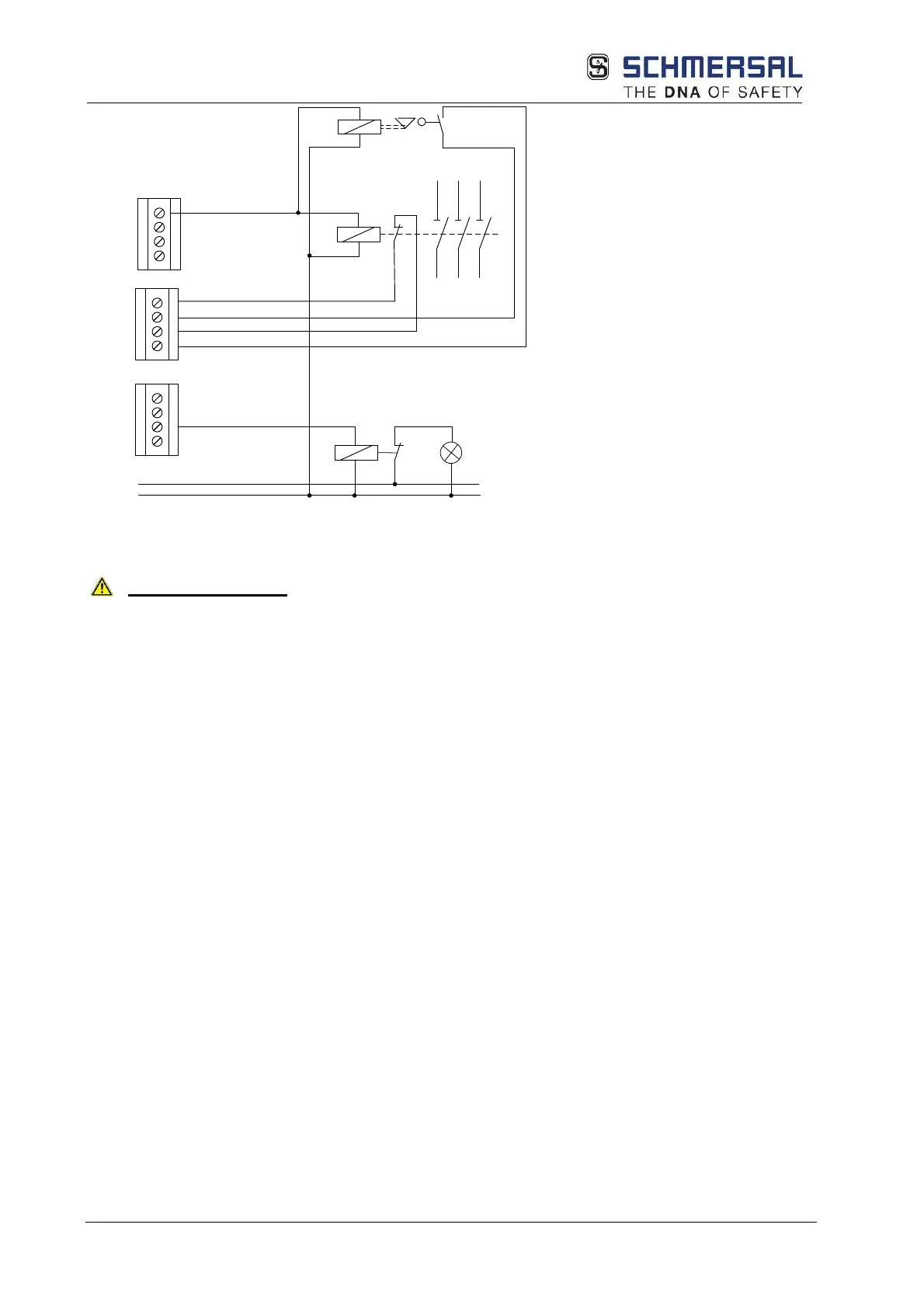

Single-channel switching output Q0_P with dual-channel external circuit as combination of electromechanical
element and hydraulic/pneumatic valve monitoring on two inputs
Safety instructions:
• Only recommended to a limited extent for safety applications! On this topic, see also the
information in EN ISO 13849-1 on usage and the fault exclusions necessary.
• For PL c and higher a signalling/warning device is required that immediately makes clear
the hazardous situation to the operator
• With increased requirements, it must be noted that at least 1 switching process must
take place every 24 hours to test the switching ability of the external contactor.
