Installation manual
HB-37420-810-01-25F-EN PSC1-C-100 Installation manual - V2.2.docx Page 85 of 201
Version: 25F

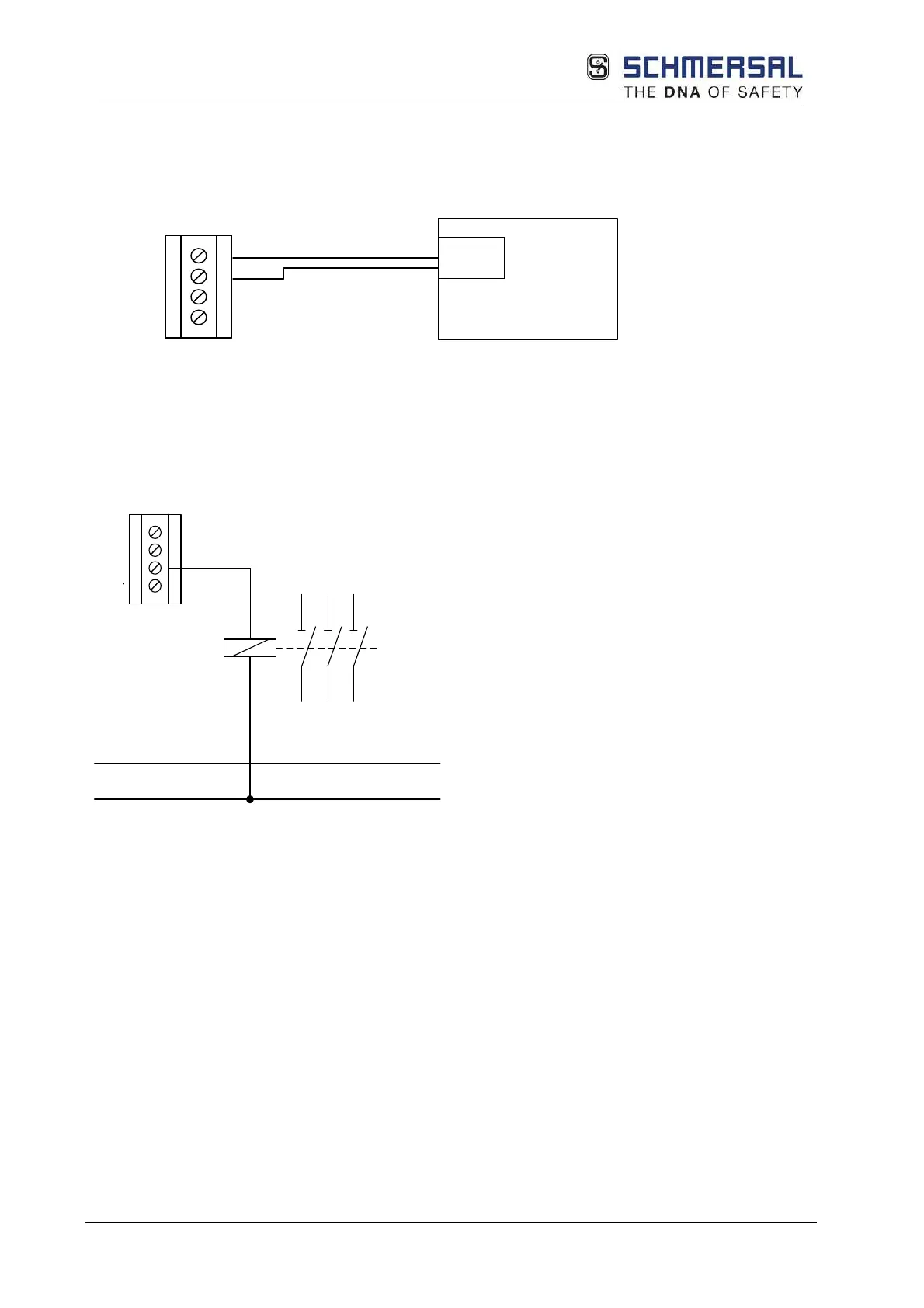

4.3.4.1.7 Dual-channel output with semiconductor output and external control circuit in PL e
For safety applications from PL d and higher according to EN ISO 13849-1. The external circuit
is operated using two channels via semiconductor outputs. PL e is required for the external
circuit for PL e according to EN ISO 13849-1.
STO
Pl e
Q0_P
X21
Q1_N
Q2_P
Q3_N
Dual-channel output with semiconductor output and external control circuit in PL e
4.3.4.1.8 Connecting a signal output
The semiconductor outputs implemented in the PSC1-C-100 module can be used for functional
applications. The outputs are not pulsed.
L+
L-
Y0
Y1
X13
Connecting a signal output
Applications with auxiliary outputs are not allowed for safety applications!
