4.3.5.2.5 Redundant dual-channel output
Suitable for PL d or higher according to EN ISO 13849-1. Use of two outputs IQQx in
conjunction with a dual-channel external circuit.
4.3.5.2.5.1 Dual-channel circuit in same group
IQQ00
X12
X21
IQQ01
T0
T1
L+
L-
IQQ02
IQQ03
IQQ04
IQQ05
IQQ06
IQQ07
IQQ08
IQQ09
X22

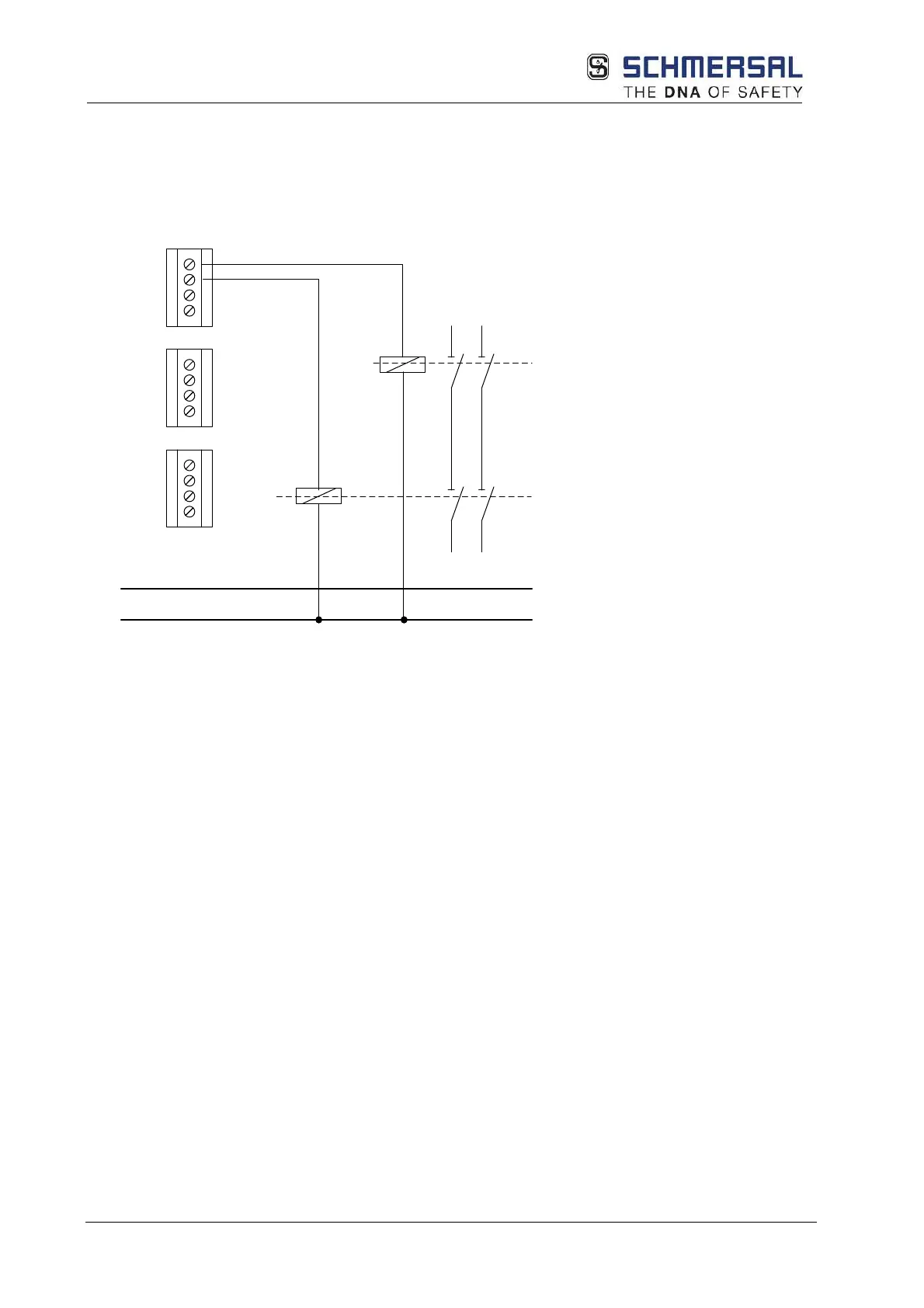

Redundant dual-channel outputs in same group in conjunction with dual-channel shutdown circuit
