A: Photometric mode: Abs B: Photometric mode: T%

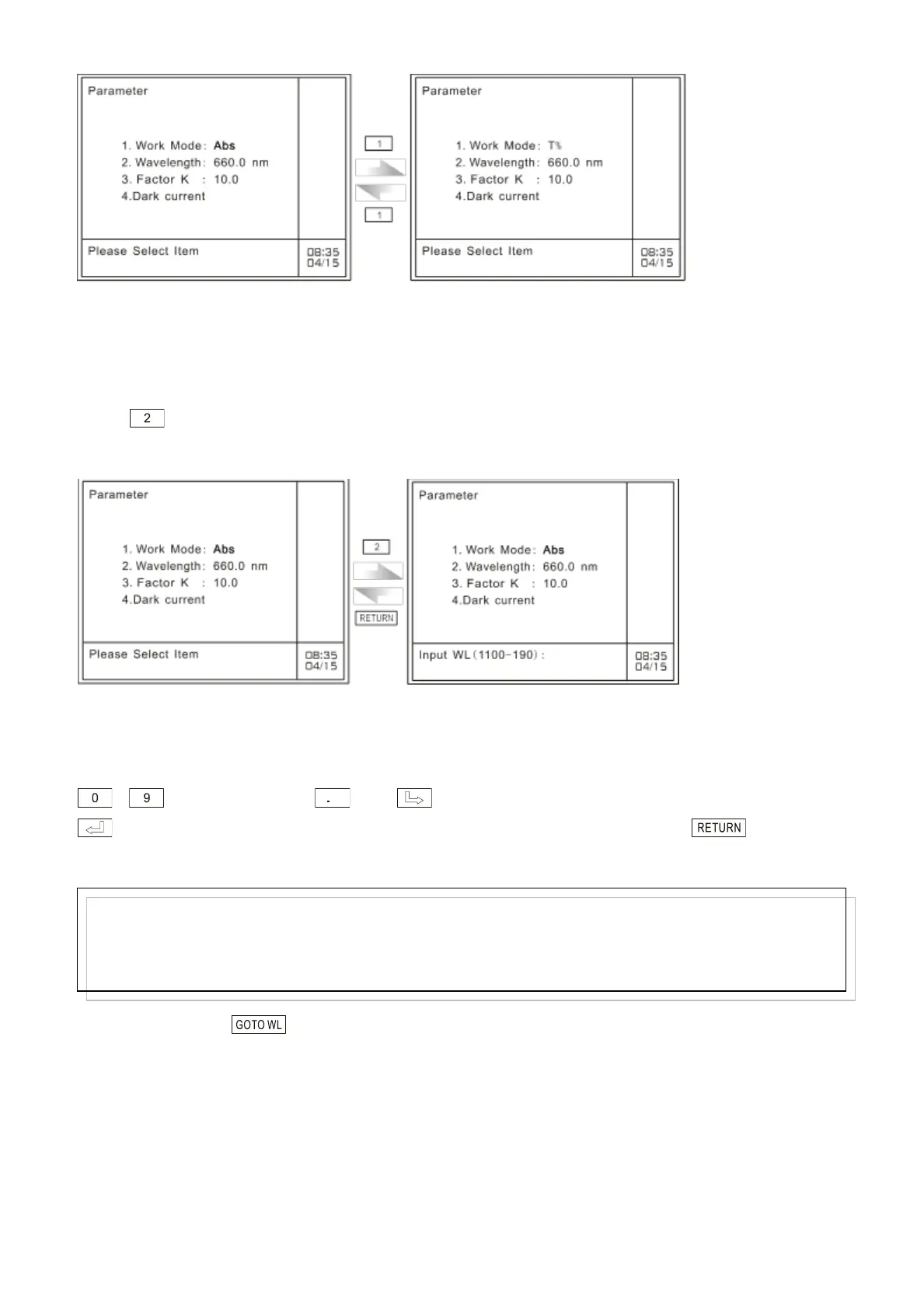

Fig. 3.4 Set work mode
3.2.2 Set measuring wavelength
Press key to set the measuring wavelength in photometric mode. The indicating message
prompts the user to input the measuring wavelength, as shown in Fig.3.5:
A: Parameters setting page in photometric mode B: Wavelength setting page
Fig. 3.5 Wavelength setting page in photometric mode (1)
At the bottom of this page, enter the desired wavelength value by pressing the numeric keys
― and decimal point . The key is used to clear off the preceding entry. Press
key to confirm the numeric entry and quit. If nothing is to be entered, press key to quit
this page and return to photometric mode menu.
You also can press on the photometric mode menu (as shown in Fig. 3.2) to set working
wavelength in the photometric mode, as shown in Fig. 3.6:
Note:
The input wavelength value should be an integer value or with one digit precision. The range is
from 190 to 1100. If the input value exceeds 6 digits (including decimal point) or exceeds the range, the
system will delete what has been entered automatically and you should start a new entry again.
