8 Mega-800 SCINCO
1.2 Components description

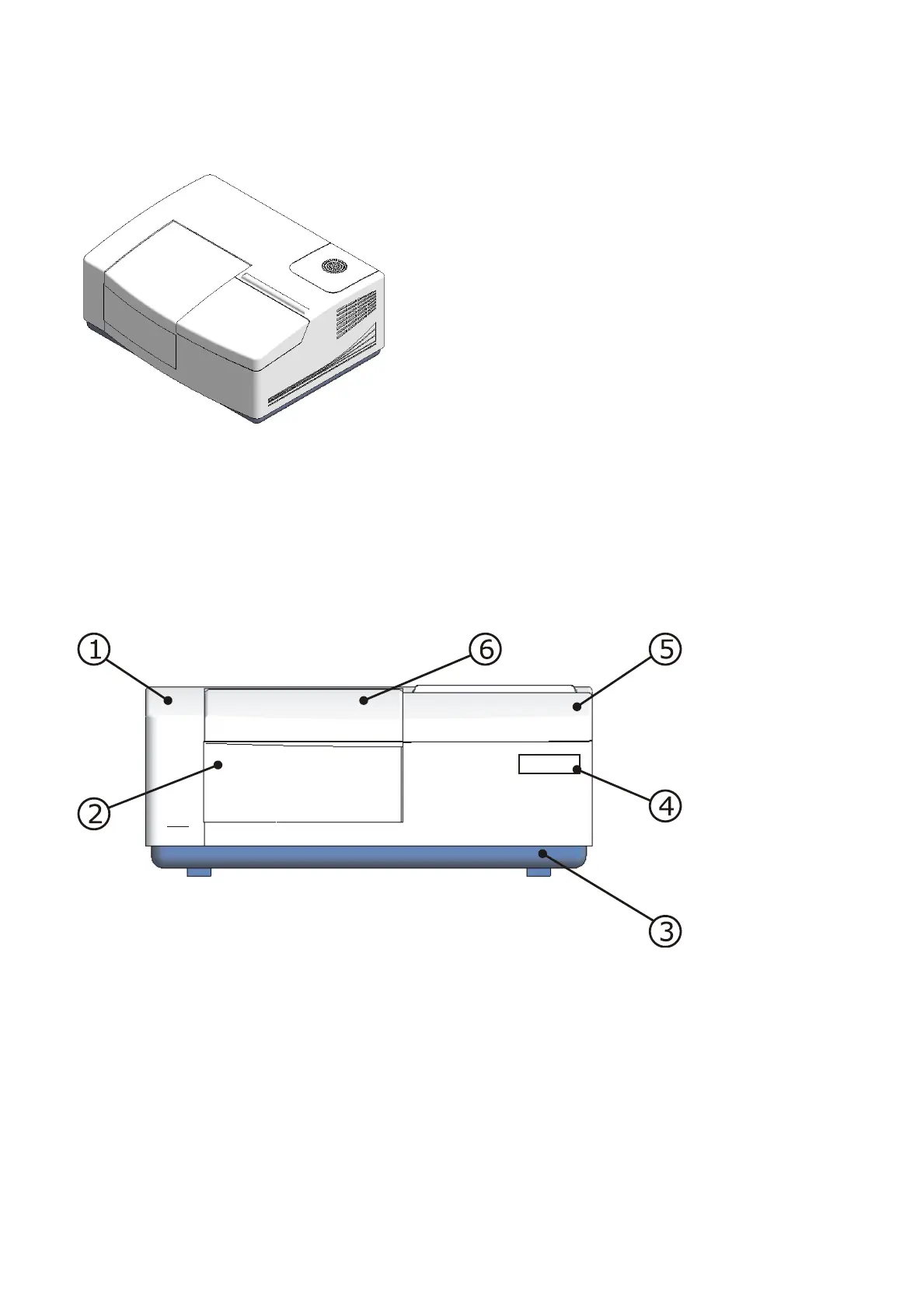

When unpacking, the instrument is present as shown in Fig. 1.1.
Fig. 1.1 Instrument overview
1.2.1 Front view
The front view is shown as Fig. 1.2.
Fig. 1.2 Front view
① Instrument cover
② Front baffle of sample compartment—standard front baffle for sample compartment. It should
be replaced when using some accessories.
③ Chassis—The steel made chassis can greatly reduce vibration, and ensures the credibility of
the instrument.
④ Instrument label
⑤ Keypad and display—320×240 dots high resolution LCD and 27 keystrokes.
⑥ Sample compartment cover— Open the cover to gain access to the sample compartment.
