71 Mega-800 SCINCO

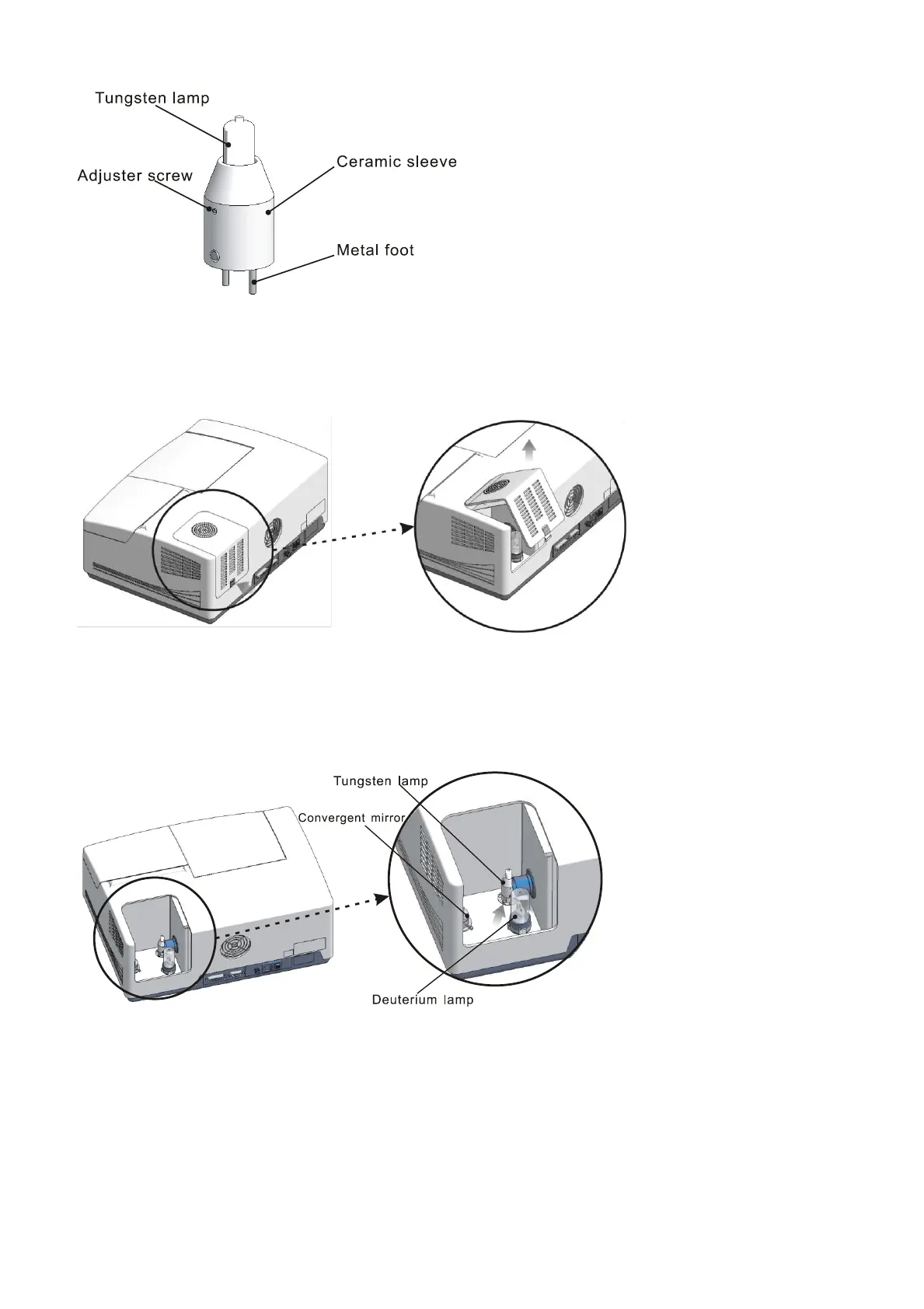

Fig. 9.1 Tungsten lamp set
Open the light source house cover. Push upwards where the arrow points in Fig. 10., and then take
off the cover of the light source house.
Fig. 9.2 Open the light source house cover
Loosen the two holding screws on the W lamp socket and remove the W lamp holder, as shown in Fig.
10.3.
Fig. 9.3 Loosen the two holding screws
Replace a new W lamp holder. Clean the surface of the W lamp with a clean cloth socked with alcohol.
Insert the W lamp holder into the W lamp socket in the light source house and tighten the two holding
screws.
