1 – Description and definitions MultiExact Gas Analyser
Key
Description
Key
Description
1. Regional compliance symbols **
2. Transducer 1 sample gas inlet
3. WEEE compliance symbol
4. Transducer 2 sample gas inlet *
#
5. Transducer 2 sample gas inlet
†#
6. AC supply voltage symbol
7. Functional earth (ground) terminal
8. Electrical supply plug and on/off
switch
9. Ethernet or profibus connector
(option)
10. Earth (ground) terminals for cable
screening
11. Transducer 2 mA output/voltage
output connector
#
12. Transducer 2 status relay connector
(option)
#
13. Transducer 2 auto val/cal connector
(option)
#
14. Transducer 1 mA output/voltage
output connector
15. Transducer 1 status relay connector
(option)
16. Transducer 1 auto val/cal connector
(option)
17. RS485 connector (option)
18. "Caution – refer to manual" symbol
19. RS232 connector
20. "Earth (ground)" symbol
21. Transducer 2 sample gas outlet
†#
22. Transducer 2 sample gas outlet *
#
23. Transducer 1 sample gas outlet
*
CO, CO
2
, N
2
O, and CH
4
trace transducers and valve block.
†
TCD, O
2
trace, O
2
purity and control transducers.
#
Analysers configured for 2 measurements only.
**
This product has been tested to the requirements of CAN/CSA–C22.2 No. 61010–1, second
edition, including Amendment 1 or a later version of the same standard incorporating the same
level of testing requirements.
☞
Optional external filters (not shown) may be fitted to the sample gas inlet (1, 2) on an
analyser with a CO, CO
2
, N
2
O, or CH
4
trace transducer. Refer to Section 8.4
for
details of these external filters. Trace O
2
transducers have internal oil and particle
filters which are not replaceable.

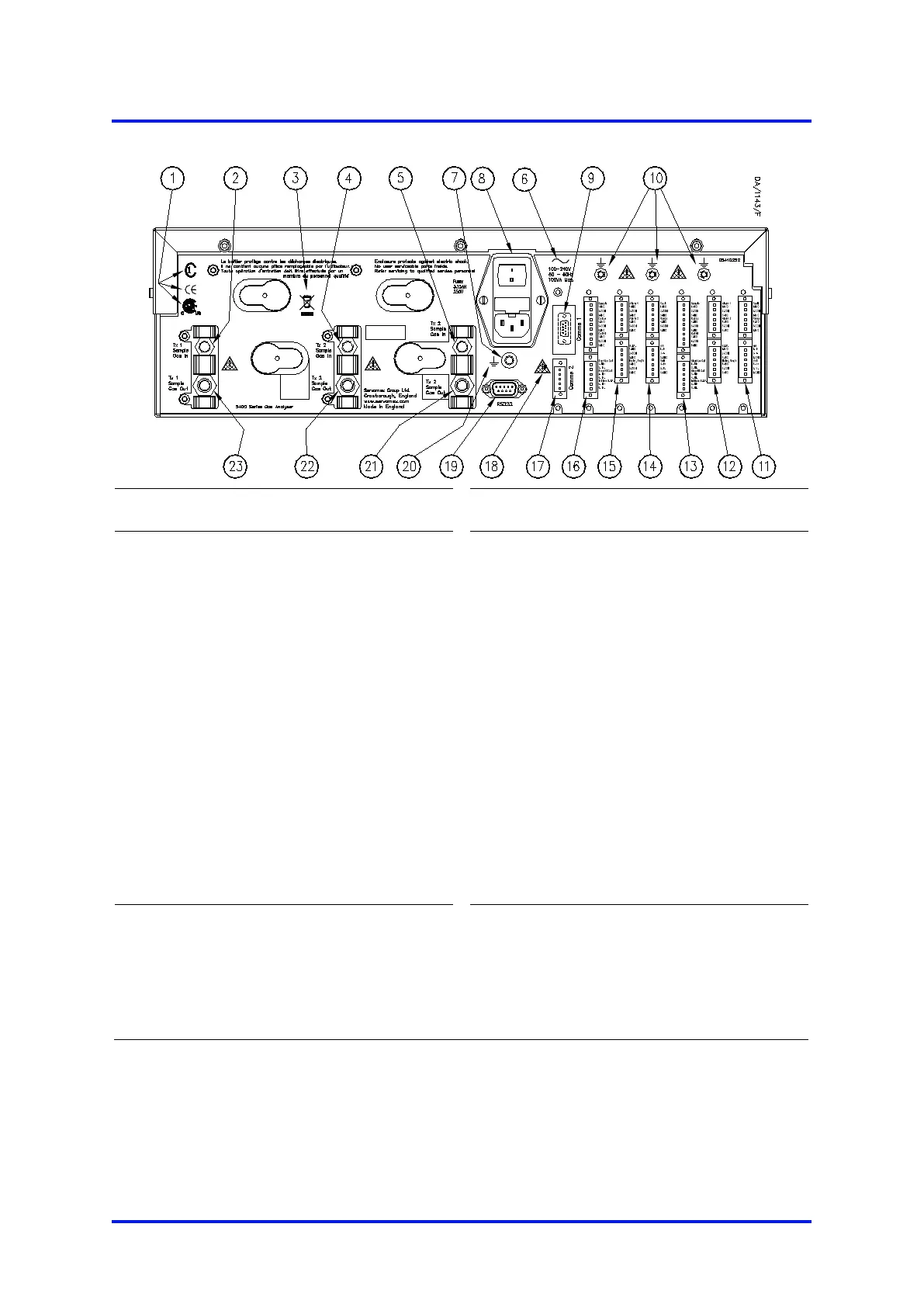

Figure 2 – Rear of the analyser
