5 – Installation and set-up MultiExact Gas Analyser
3. If you changed the pre-warning
setting from 'Off' to 'On', the
Auto val/cal pre-warning timer
scree
(see Figure 38
time as described in Section 4.10.

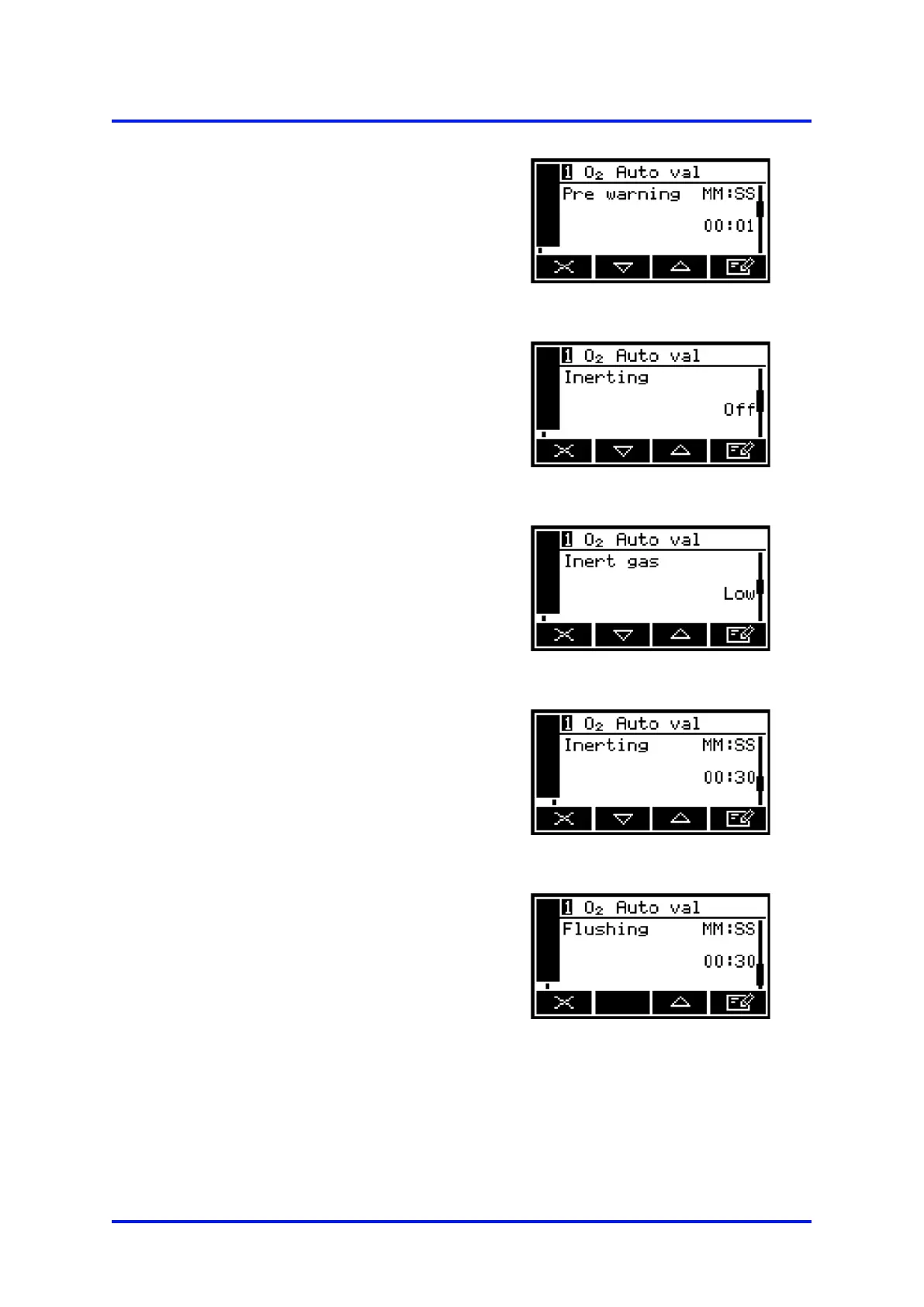

Figure 38 – The Auto val/cal
pre-warning timer screen
4. Select 'On' or 'Off' for inerting.
Figure 39 – The Auto val/cal
inerting screen
5. If you have changed the Inerting
setting from 'On' to 'Off', continue at
Step 9.
6. Select the correct inert gas: 'Low' or
'High'.
Figure 40 – The Auto val/cal
inert gas screen
7. Scroll to the auto val/cal inerting
timer screen, showing the currently
selected inerting time setting.
8. Edit the time as described in
Section 4.10.
Figure 41 – The Auto val/cal
inerting timer screen
9. Scroll to the auto val/cal flushing
screen, showing the currently
selected flushing time setting.
10. Edit the time as described in
Section 4.10.
Figure 42 – The auto val/cal
flushing screen
48 05410001A / Revision 6
