Installation
Installing options and accessories
Operating Instructions – MOVIDRIVE
®
modular
100

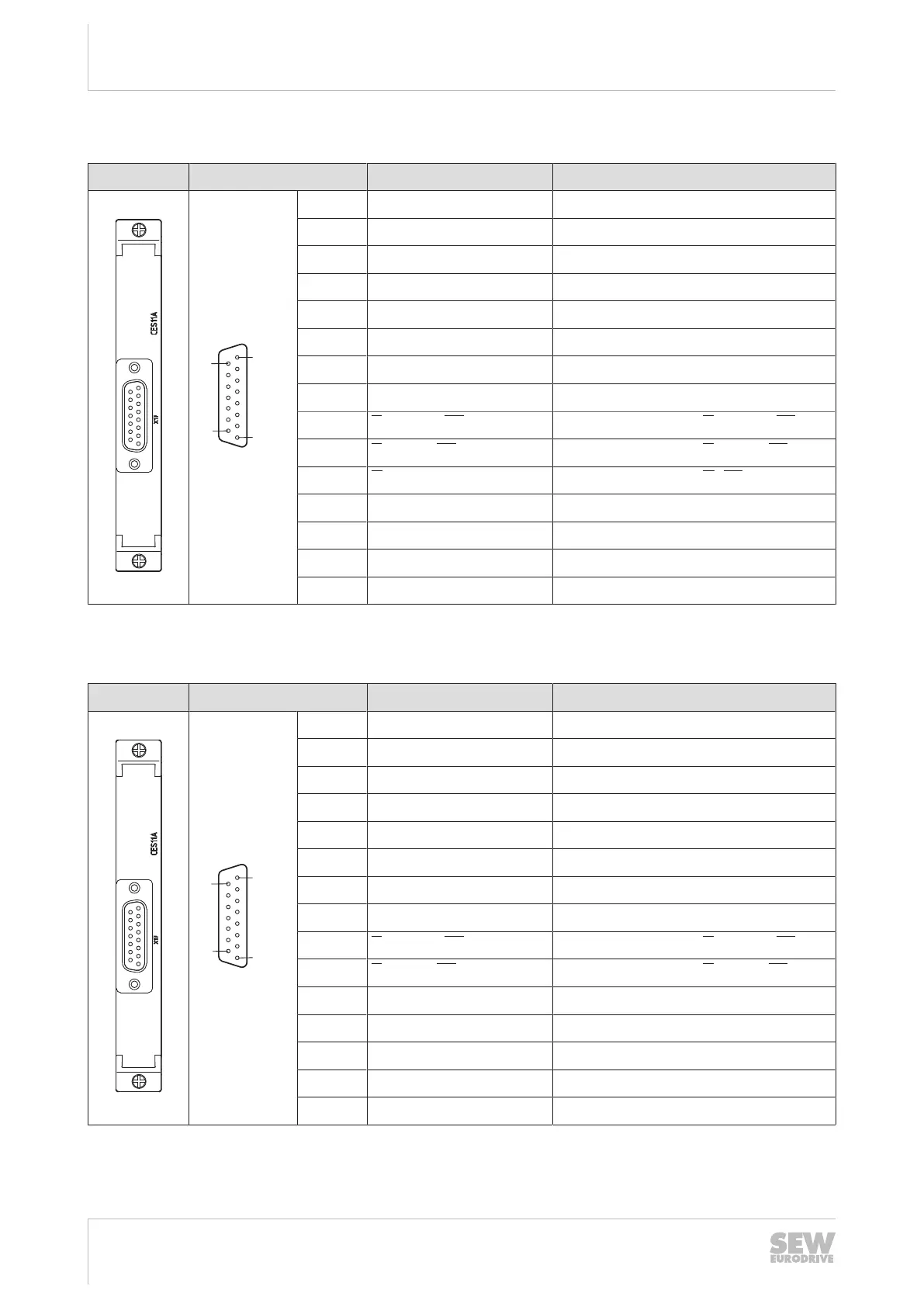

Terminal assignment of TTL, HTL, SIN/COS encoder
card Terminal Connection Short description
15
9
1
8
X17:1 A (COS+) (K1) Signal track A (COS+) (K1)
X17:2 B (SIN+) (K2) Signal track B (SIN+) (K2)
X17:3 C Signal track C (K0)
X17:4 DATA+
1)
Data cable for electronic nameplate
X17:5 Reserved –
X17:6 -TEMP_M Motor temperature evaluation
X17:7 Reserved –
X17:8 GND Reference potential
X17:9 A (COS-) (K1) Negated signal track A (COS-) (K1)
X17:10 B (SIN-) (K2) Negated signal track B (SIN-) (K2)
X17:11 C Negated signal track C (K0)
X17:12 DATA-
1)
Data cable for electronic nameplate
X17:13 V
S24VG
24V encoder supply
X17:14 +TEMP_M Motor temperature evaluation
X17:15 V
S12VG
12V encoder supply
1) For encoders from SEW‑EURODRIVE with electronic nameplate in type E.7S
Terminal assignment HIPERFACE
®
and encoder from SEW‑EURODRIVE (RS485)
card Terminal Connection Short description
15
9
1
8
X17:1 A (COS+) (K1) Signal track A (COS+) (K1)
X17:2 B (SIN+) (K2) Signal track B (SIN+) (K2)
X17:3 Reserved –
X17:4 DATA+ Data line
X17:5 Reserved –
X17:6 -TEMP_M Motor temperature evaluation
X17:7 Reserved –
X17:8 GND Reference potential
X17:9 A (COS-) (K1) Negated signal track A (COS-) (K1)
X17:10 B (SIN-) (K2) Negated signal track B (SIN-) (K2)
X17:11 Reserved –
X17:12 DATA- Data line
X17:13 V
S24VG
24V encoder supply
X17:14 +TEMP_M Motor temperature evaluation
X17:15 V
S12VG
12 V encoder supply
