3
Unit structure, axis system structure
Card slots
Operating Instructions – MOVIDRIVE
®
modular
47

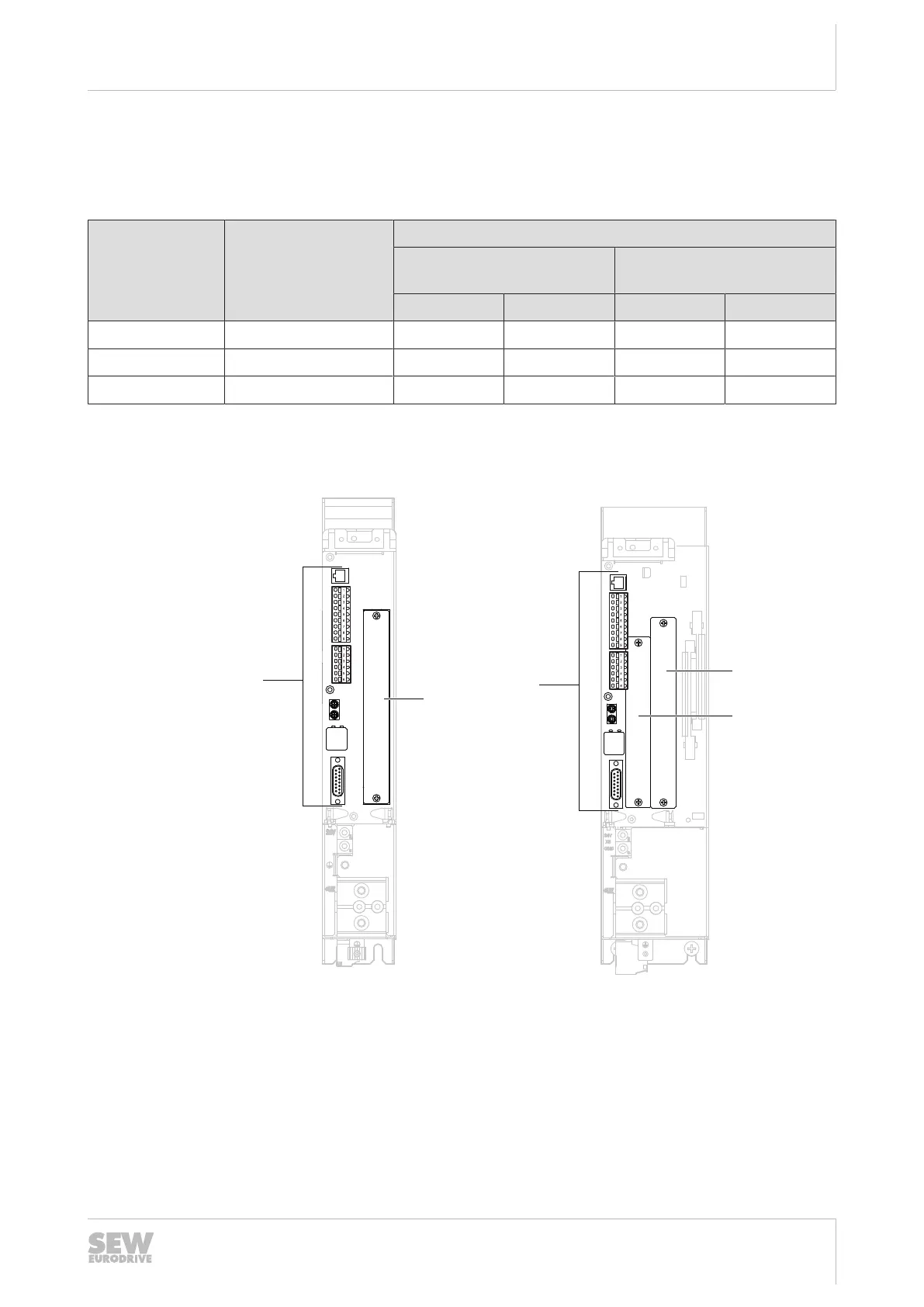

3.9 Card slots
The application inverters can have up to 2 cards installed. The following section de-
scribes the assignment of the slots and possible combinations of cards.
Type designation Description Slot in
MDA90A-... single-axis
module
MDD90A-... double-axis
module
0020 – 0120 0160 – 1800 0020 – 0040 0020 – 0080
CES11A Multi-encoder card [2] [2] - -
CID21A, CIO21A Input/output cards - [3] - -
CS..A Safety card [2] [2] [2] [2]
3.9.1 Single-axis modules
MDA90A-0020, 0040, 0080, 0120 MDA90A-0160 – 1800
RUN ERR
X15
X21 X20 X31
S1
S2
24V
GND
+UZ
-UZ
X4
X5
+UZ-UZ
[1]
[2]
RUN ERR
X15
X21 X20 X31
S1
S2
+UZ
-UZ
X4
+UZ-UZ
[1]
[2]
[3]
9007212169660939
[1] Connector panel of basic device
[2] Safety card/additional encoder slot
[3] I/O expansion slot
