Installation
Terminal assignment
Operating Instructions – MOVIDRIVE
®
modular
134

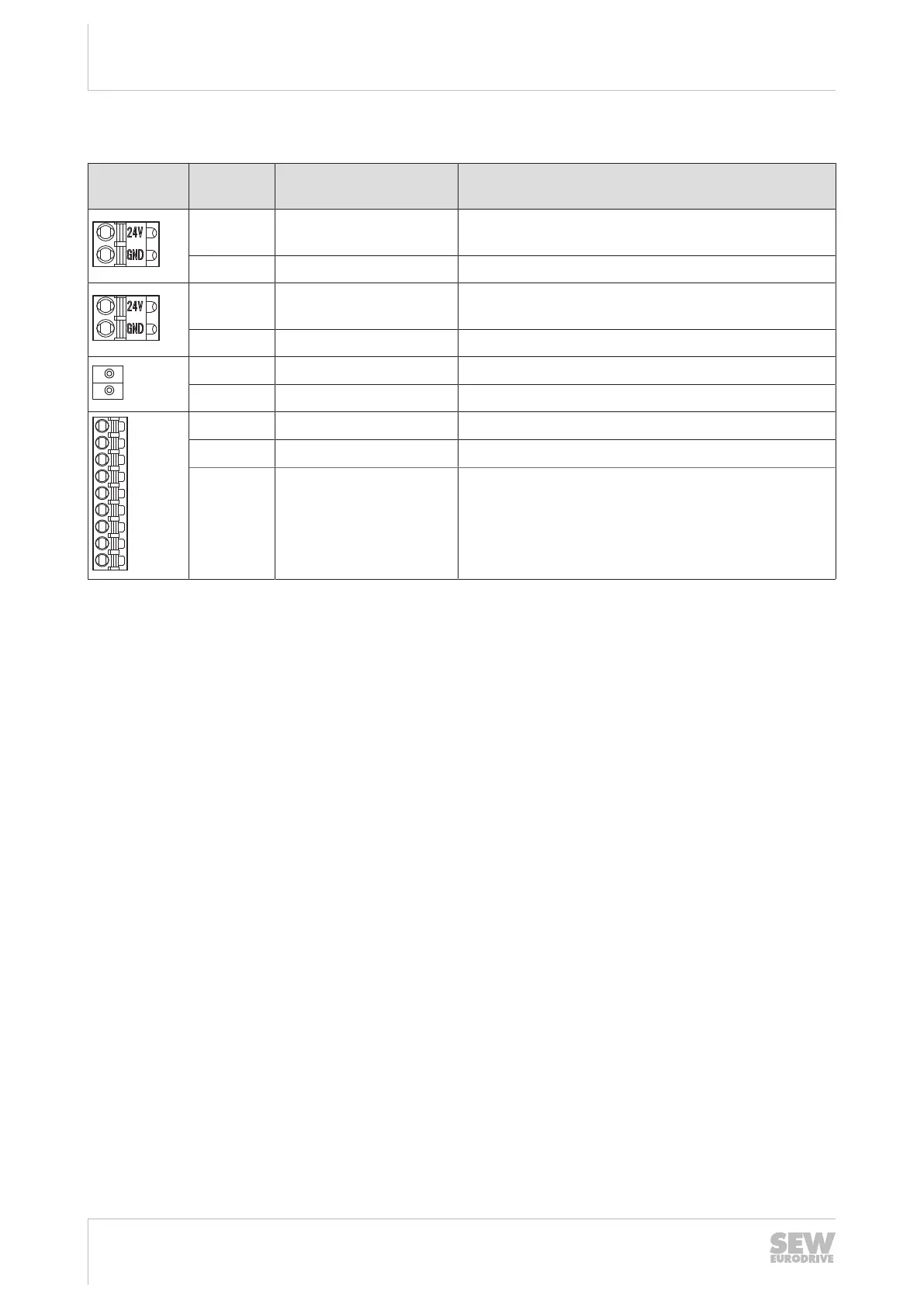

4.12.4 Terminal assignment of master module UHX45A/MDM90A
Representa-
tion
Terminal Connection Short description
X5_A:24V V
I
24 V External DC 24V supply voltage from housing MD-
M90A
X5_A:GND GND Reference potential housing MDM90A
X5_B:24V V
I
24 V Output of DC 24V supply voltage from housing MD-
M90A
X5_B:GND GND Reference potential housing MDM90A
24 V
GND
X5:24V V
I
24 V DC 24 V supply voltage UHX45A
X5:GND GND Reference potential UHX45A
X85:1-3 RS485 RS485 interface (in preparation)
X85:4-6 CAN1 System bus CAN 1 – non-floating (in preparation)
X85:7-9 CAN2 System bus CAN 2 – non-floating (in preparation)
