4
Installation
Covers
Operating Instructions – MOVIDRIVE
®
modular
62
4.4.5 Protection caps
To achieve degree of protection IP20 according to EN60529 with larger modules, the
connectors must be secured against touch using a protection cap. The protection caps
are included in the accessory bag.
• Power supply modules MDP90A-0500-.. and larger, line connection X1, braking
resistor connection X3
• Supply and regenerative modules MDR91A-0500-.. and larger
• Axis modules MDA90A-0640-.. and larger: Motor connection X2

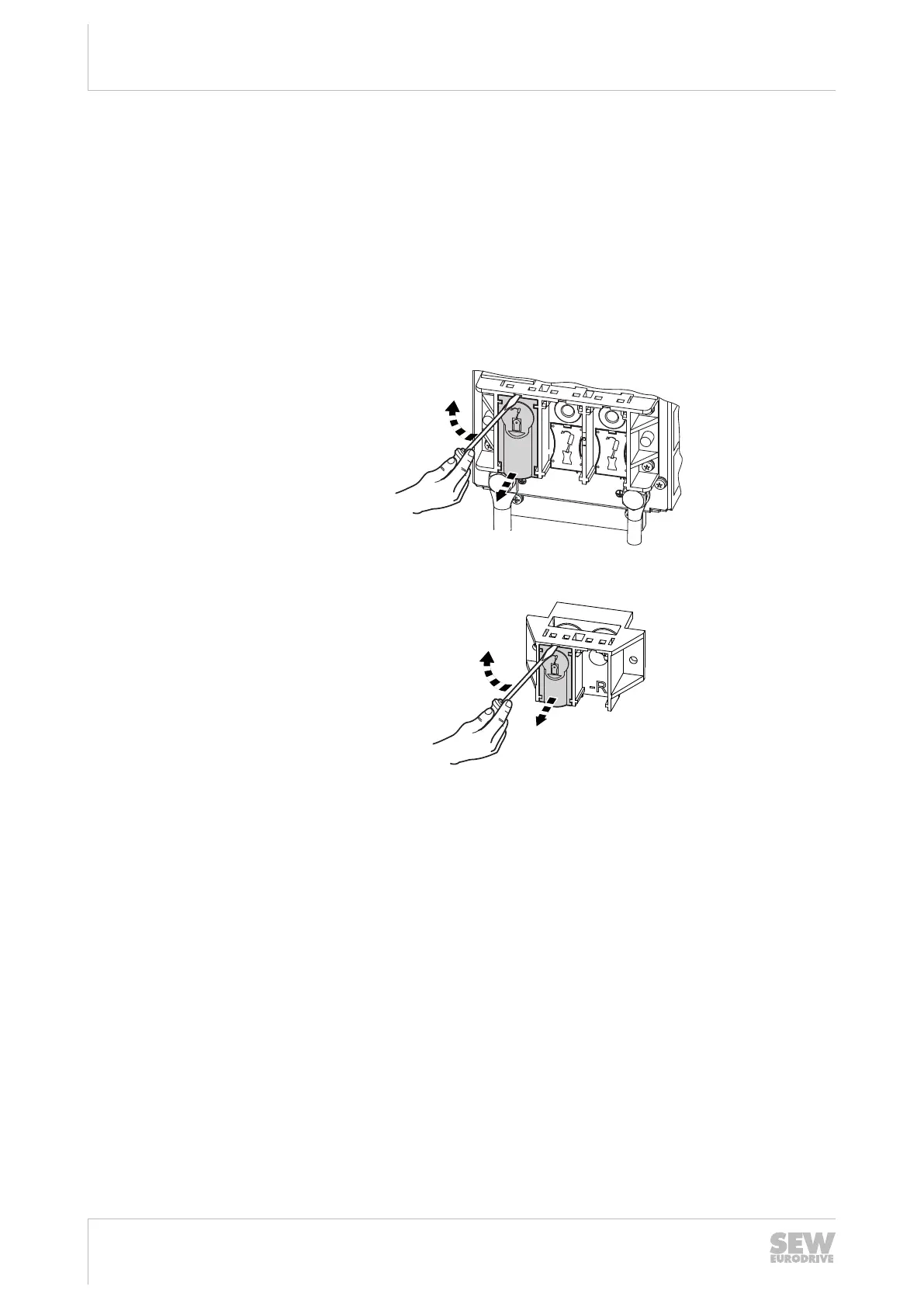

Protection caps installed can be remove as depicted in the following figures.
Line connection,
motor connection
20109660043
Braking resistor
connection
20109663883
To ensure degree of protection IP20, the protection caps must be reinstalled after the
cables are connected.
24748536/EN – 11/2017
