Unit structure, axis system structure
Connection variants
Operating Instructions – MOVIDRIVE
®
modular
24

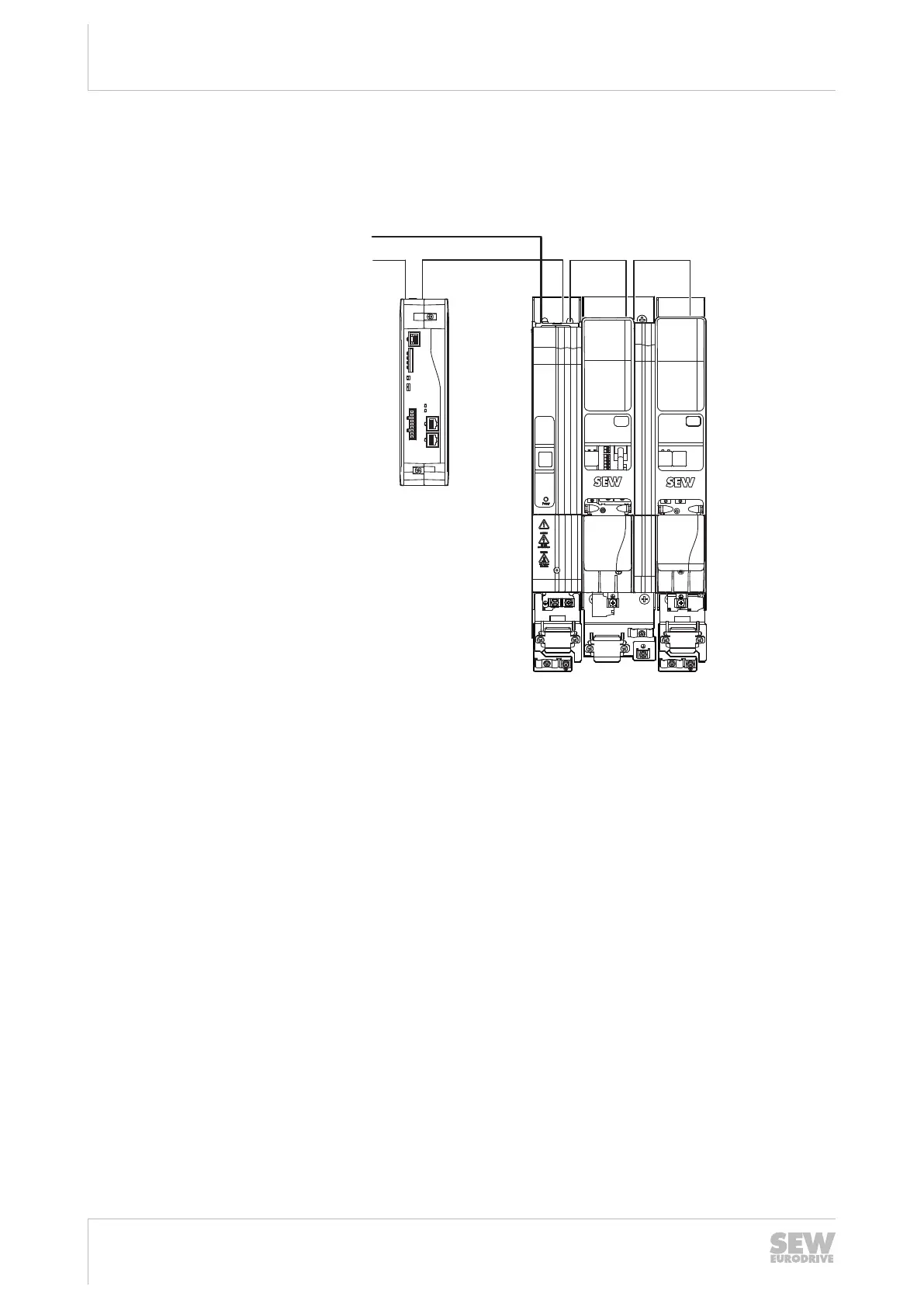

3.1.3 Axis system with MOVI-C
®
CONTROLLER advanced
MOVIDRIVE
®
modular
RUN ERR
X15
X21 X20 X31
S1
S2
+UZ
-UZ
X4
+UZ-UZ
24V
X5
+UZ
X4
-UZ
-UZ +UZ
GND
X31X20_1X21_1
X20_2X21_2
X15_1
X15_2
S1
S2
RUN ERR
+UZ
X4
X5
24V
GND
-UZ
+ UZ- UZ
[4] [5] [6]
[1]
L/ A
L/ A
L/ A
L4
L3
L2
L1
T1
S3
L5
L6
BF
US1
X4 1
X4 0
X8 0
X8 5
XM
[2]
[3]
20841208075
[1] Line voltage 3 × AC 380 – 500V
[2] Industrial Communication
[3] MOVI-C
®
CONTROLLER advanced
[4] MOVIDRIVE
®
modular power supply module MDP..
[5] MOVIDRIVE
®
modular single-axis module MDA.
[6] MOVIDRIVE
®
modular double-axis module MDD..
24748536/EN – 11/2017
