4.6.10 Installing touch guards and closing covers

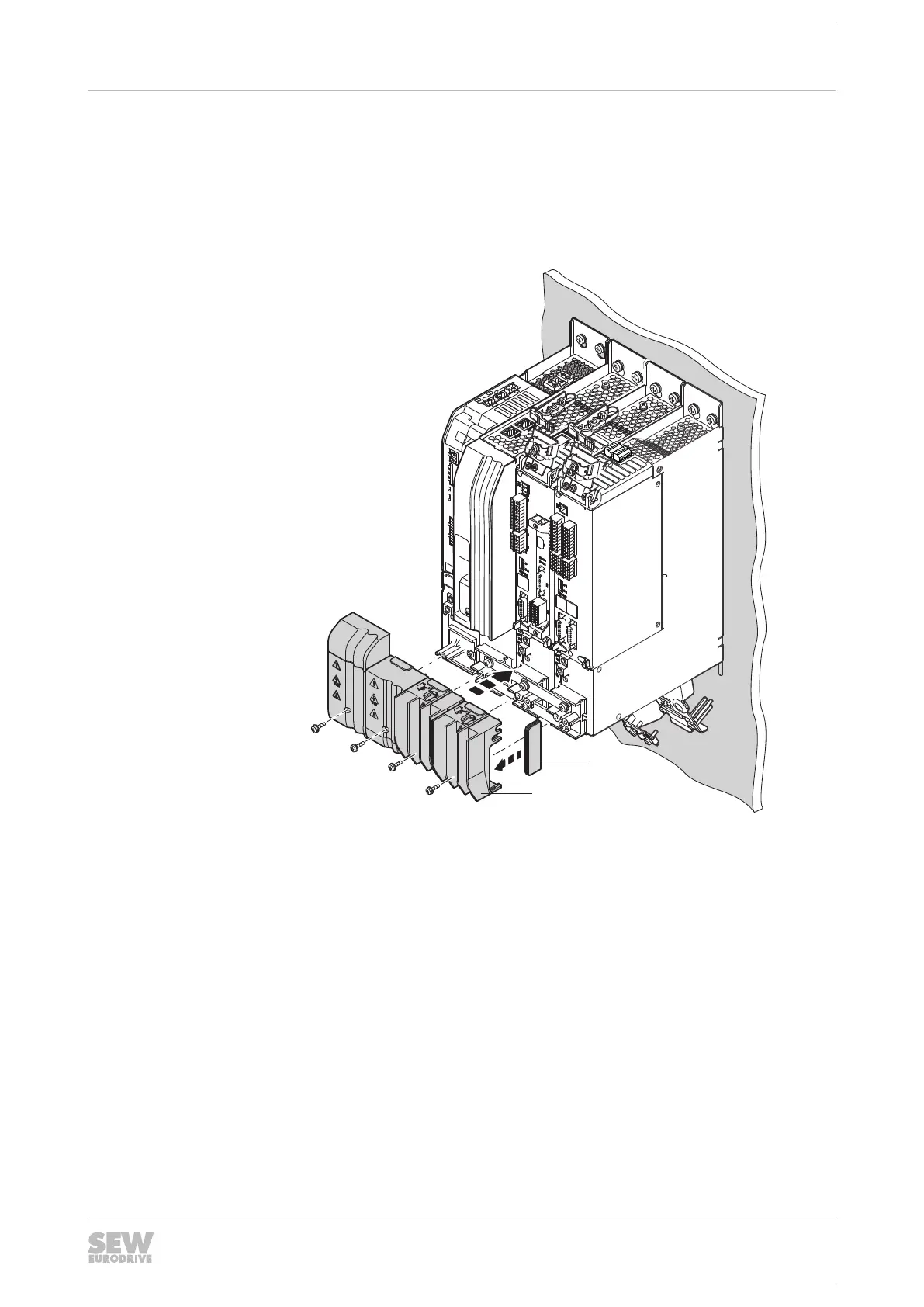

All modules of the application inverter are equipped with touch guards [1] and the
outer modules of the axis system have closing covers [2], see the following figure. If
the axis system contains a master module, the closing cover [2] only needs to be at-
tached at the last module in the axis system.
