4
Installation
Electrical installation
Operating Instructions – MOVIDRIVE
®
modular
86
Without master
module
[1]
[2]
5
4
3
2
1
5
4
3
2
1
18014412466136331

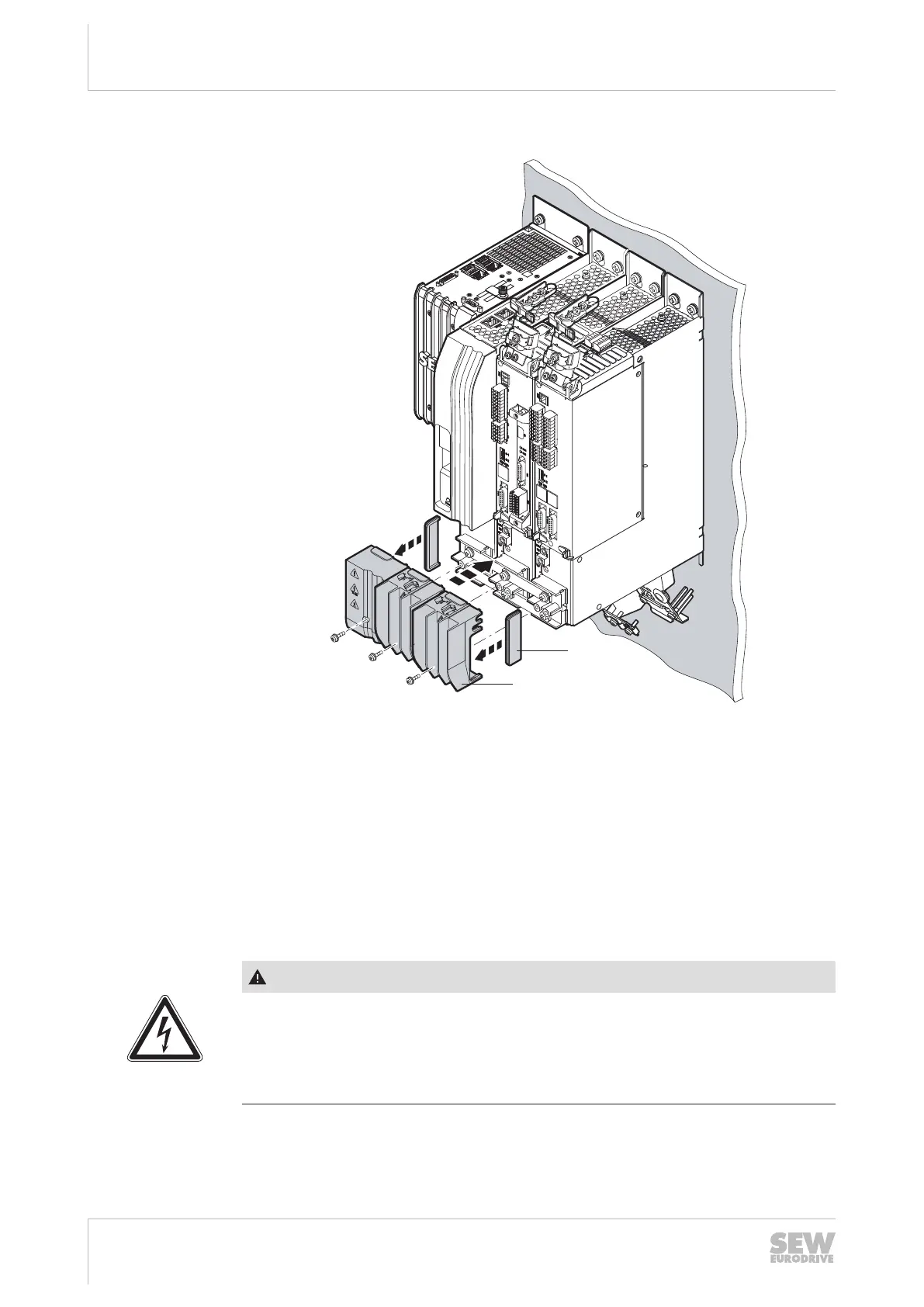

[1] Touch guard
[2] Closing cover
Reinstall all touch guards [1] after installation work.
1. Insert the closing cover [2] into the touch guard [1].
2. Install the touch guard [1] on the respective module. Insert the screws and tighten
them with the specified tightening torque "Permitted tightening torques"(→252).
Install one closing cover [2] each at the outer modules of the axis system. The closing
covers prevent that the DC link can be touched. Two closing covers are included with
each power supply module.
WARNING
Missing touch guards and closing covers.
Severe or fatal injuries from electric shock.
• Install all touch guards.
• Install closing covers at the first and last module in the axis system.
24748536/EN – 11/2017
