4.4.2 Touch guards

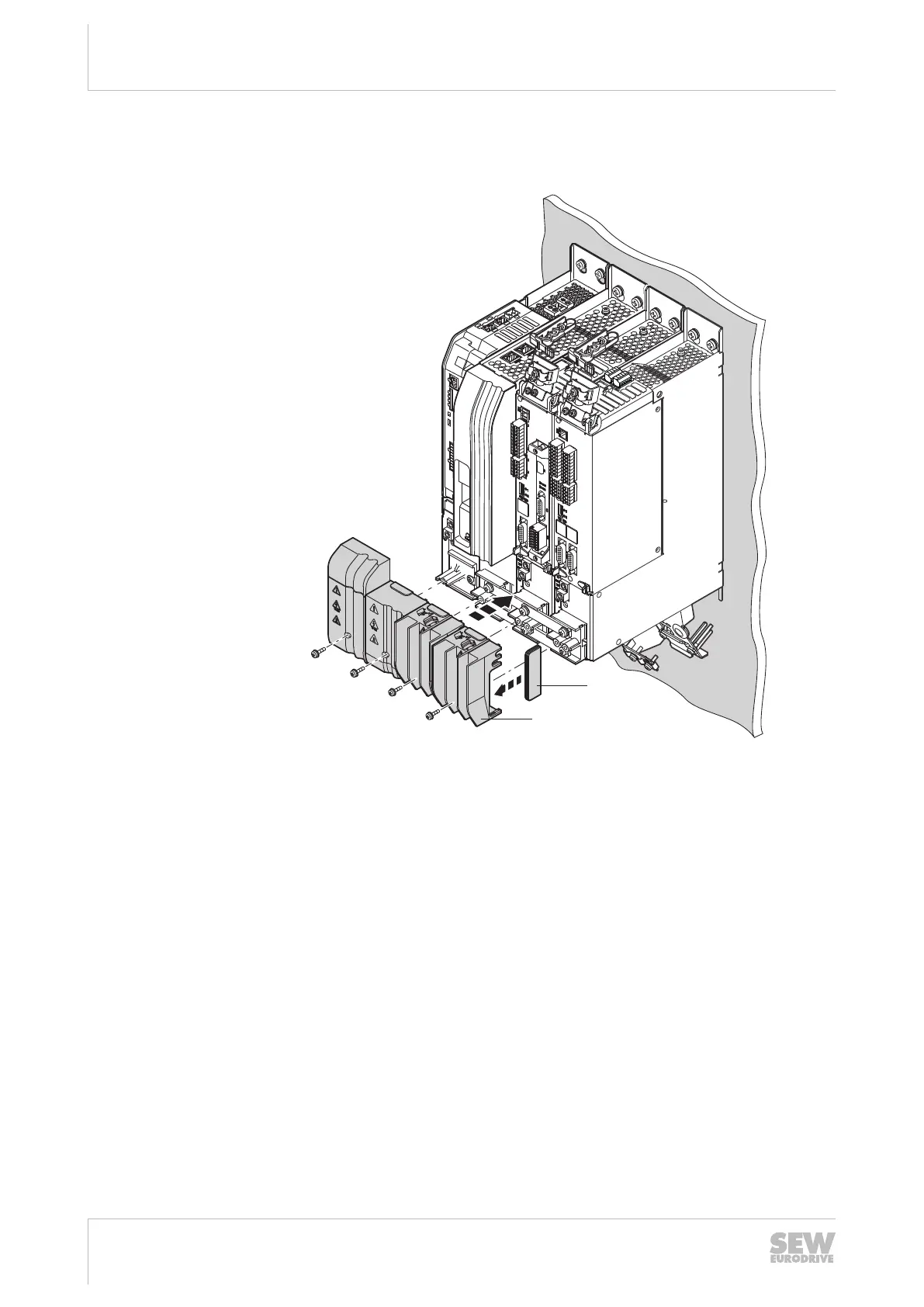

Axis system with master module
[2]
5
4
3
2
1
5
4
3
2
1
[1]
20918974091
1. Insert the closing covers [2] into the touch guards covers [1] of the first and last
module in the axis system.
2. Attach the touch guard covers [1] to the modules. Insert the screws and tighten
them securely with the specified tightening torque (→252).
