Installation
Terminal assignment
Operating Instructions – MOVIDRIVE
®
modular
124

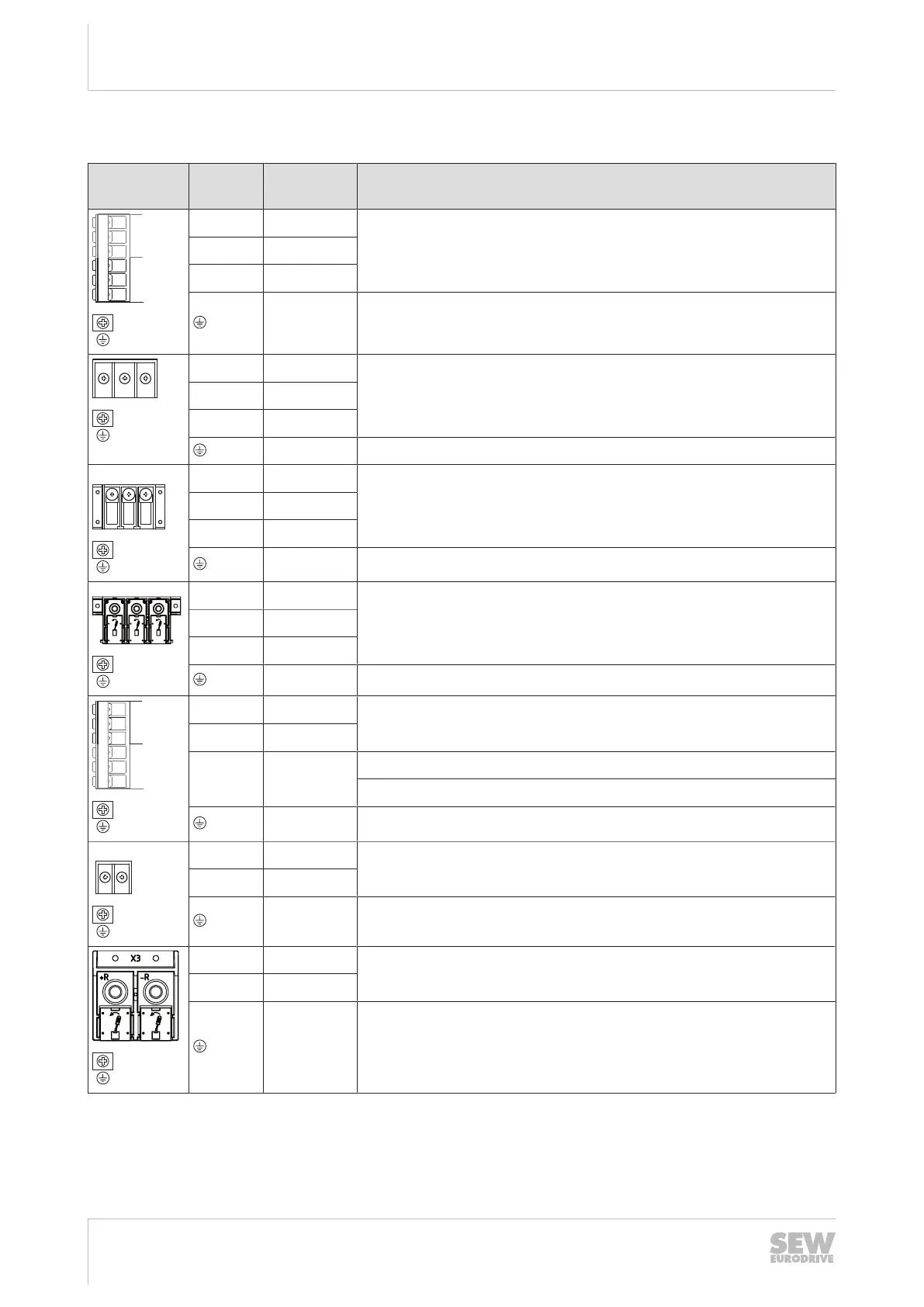

4.12.1 Terminal assignment at MDP power supply module
Representa-
tion
Terminal Connec-
tion
Short description
X1
X3
X1:L1 L1
Line connection MDP90A-0100-.. (size 1)X1:L2 L2
X1:L3 L3
PE PE connection
X1:L1 L1
Line connection MDP90A-0250-.. (size 2)X1:L2 L2
X1:L3 L3
PE PE connection
L1 L2 L3
X1:1 L1
Line connection MDP90A-0500 – 0750-.. (size 3)X1:2 L2
X1:3 L3
PE PE connection
L1 L2 L3
X1:1 L1
Line connection MDP90A-1100-.. (size 4)X1:2 L2
X1:3 L3
PE PE connection
X3
X1
X3:+R +R
Braking resistance connection MDP90A-0100-.. (size 1)
X3:-R -R
X3:R
i
R
i
Reserved with size 1 as no R
i
available
Connection of internal braking resistor to MDP..C00 (R
i
)
PE
PE connection
-R
+R
X3:+R +R
Braking resistance connection MDP90A-0250 – 0750-.. (Sizes 2, 3)
X3:-R -R
PE PE connection
X3:+R +R
Braking resistance connection MDP90A-1100-.. (size 4)
X3:-R -R
PE PE connection
