4.11.5 Line filter connection
Limit the length of connection cables between line filter and inverter to the absolute
minimum needed.
In general, filtered and unfiltered cables must not be routed together. For this reason,
route incoming and outgoing line filter cables separately.
4.11.6 Braking resistor connection

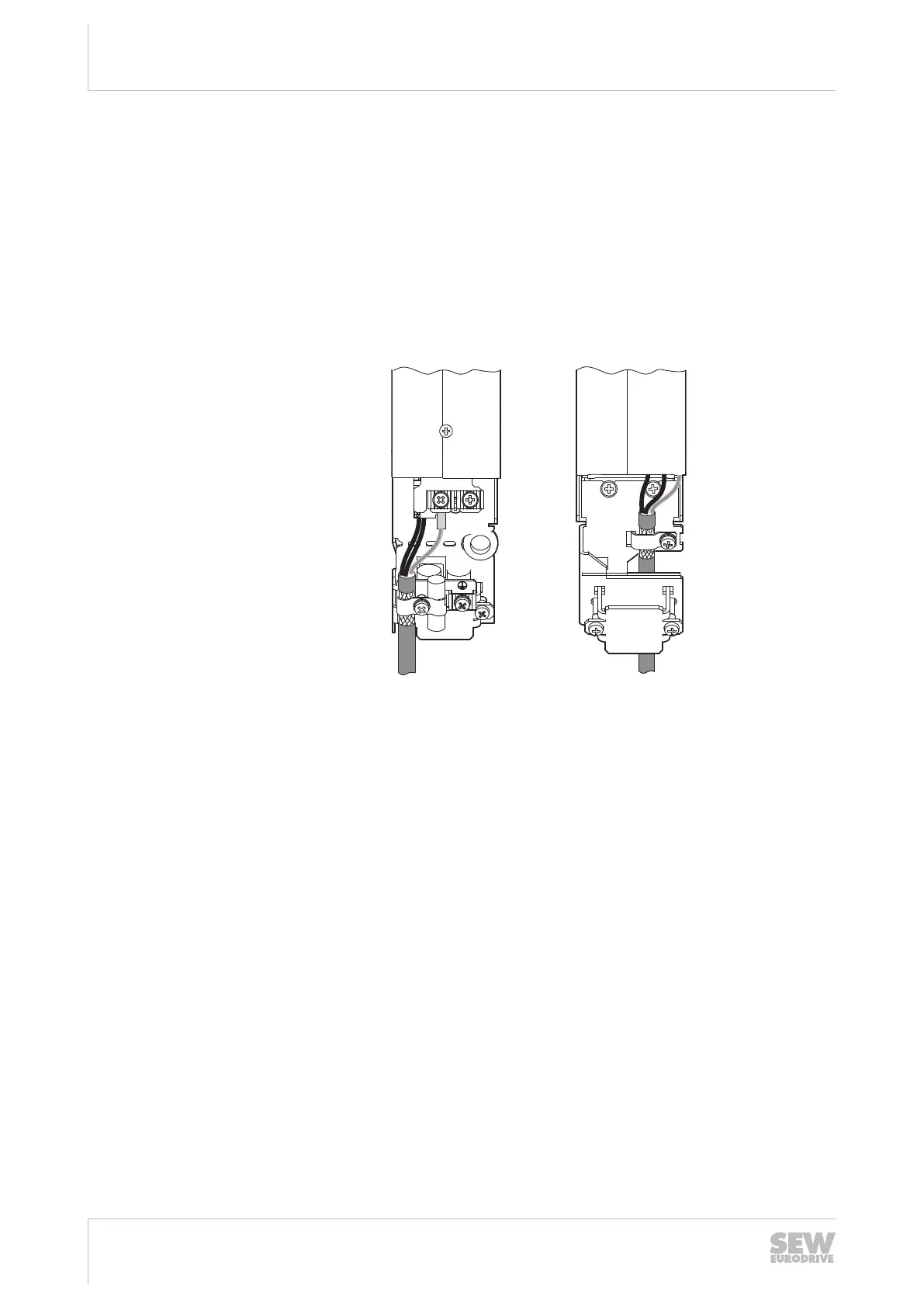

For connecting braking resistors, use 2 closely twisted conductors or a shielded power
cable. Connect the braided shields of shielded cables over the entire circumference.
Use the designated shield plates at the basic device to connect the shield.
