Installation
Covers
Operating Instructions – MOVIDRIVE
®
modular
56
4.4 Covers
For transportation, the safety covers of the power supply modules MDP90A 25 kW
and larger, and of the axis modules MDA90A 64A and larger are protected with card-
board.
Remove this protection before startup.
Observe that when the devices must not be gripped at the safety covers while lifting
the device.
4.4.1 Covers
All MDA and MDD axis modules of the application inverter are equipped with a safety
cover [1], see following figures.

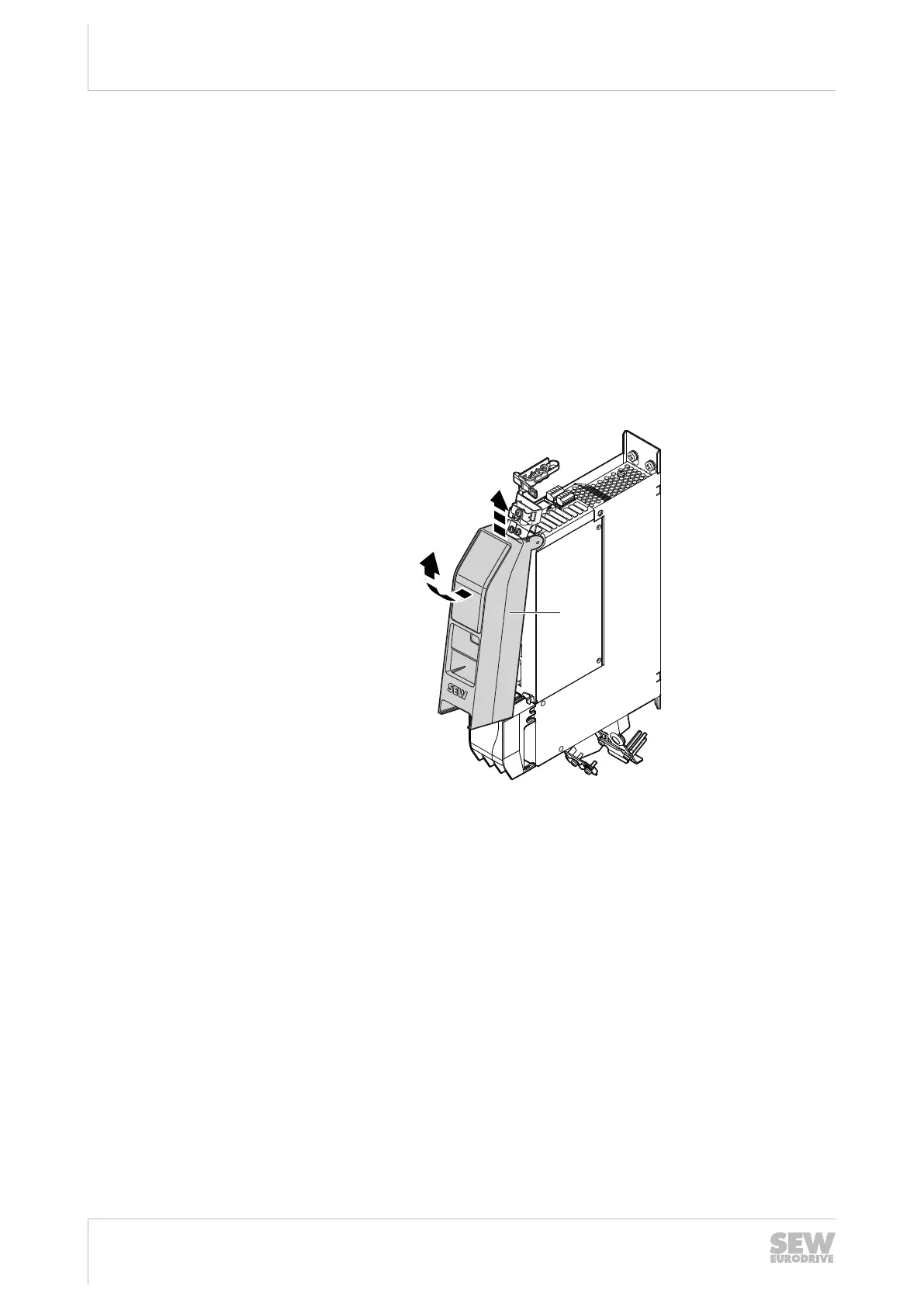

Removing the
safety cover
1.
2.
[1]
5
4
3
2
1
5
4
3
2
1
27021611749935499
• The safety cover [1] has a latching mechanism at the bottom. Put your finger in
one of the openings of the safety cover and pull it away from the application in-
verter to unlatch it.
• Pivot the safety cover forward and lift it to remove it from the application inverter.
