Installation

Covers

Operating Instructions – MOVIDRIVE

modular

Installing the

safety cover

[1]

9007214394878475

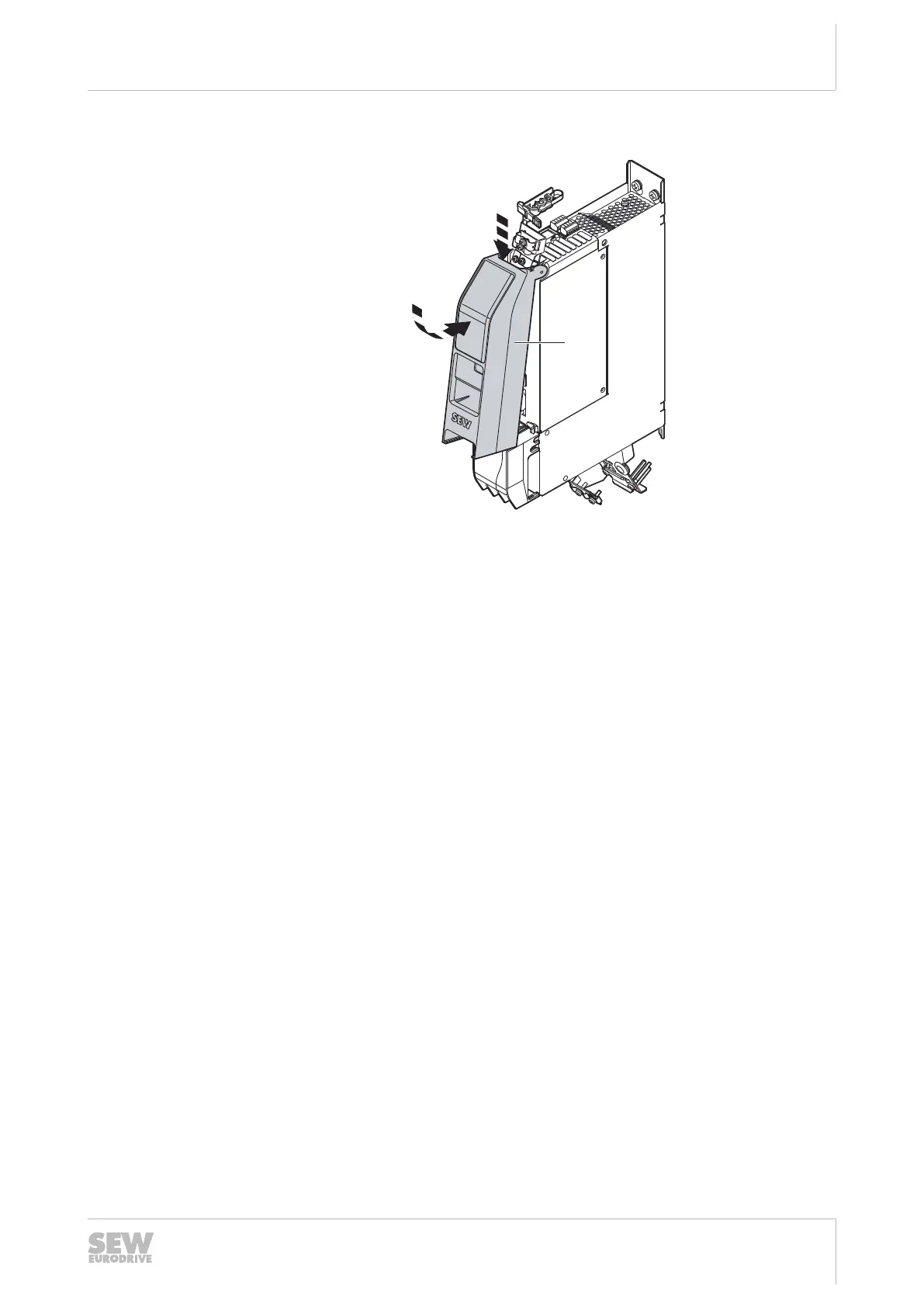

• Place the safety cover [1] into the upper recess and move it towards the applica-

tion inverter until it clicks into place.

Reinstall all safety covers [1] after installation work.

24748536/EN – 11/2017
