SEW-Eurodrive MOVIDRIVE MDA90A-0640-503-X-S00

4
Installation

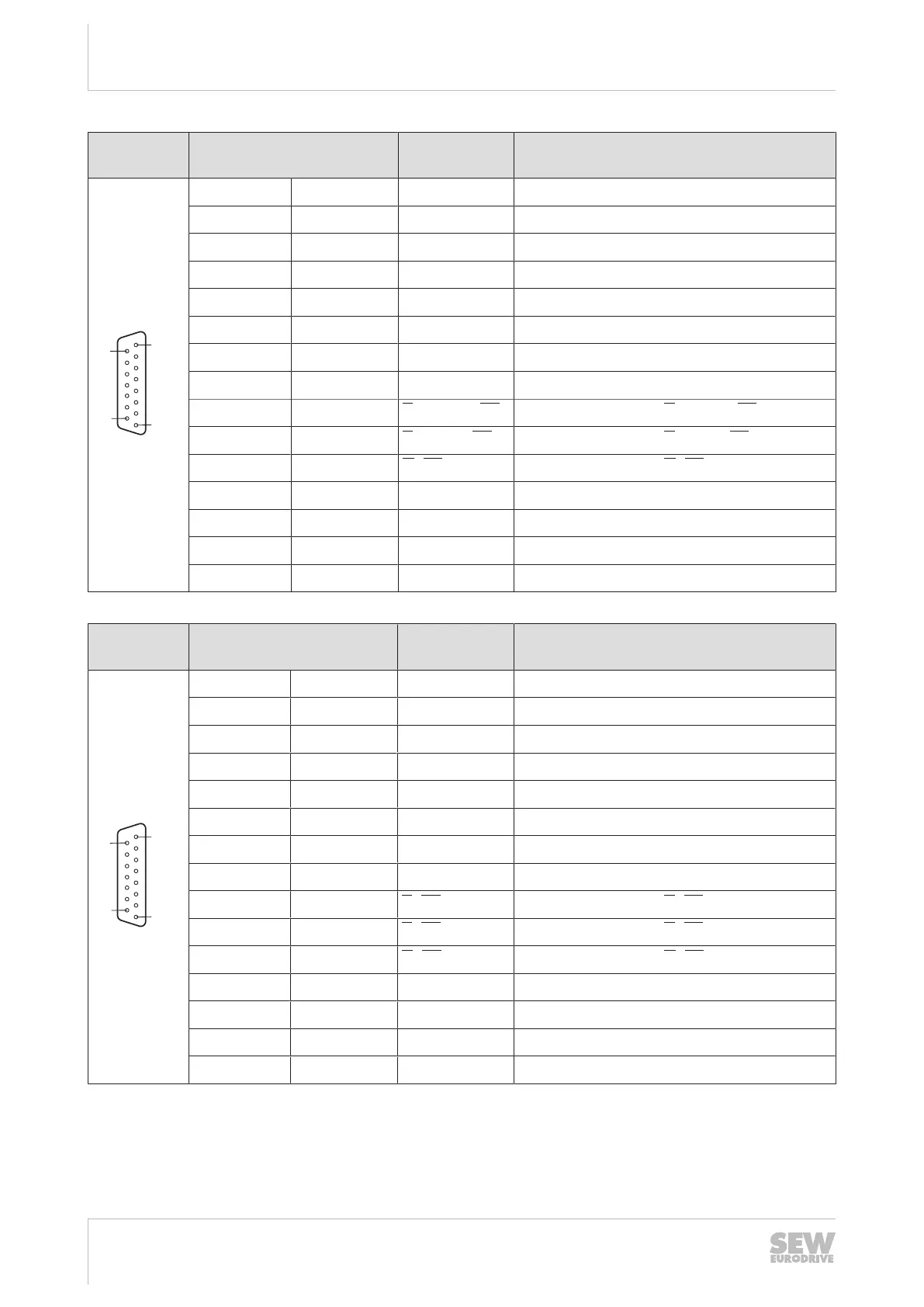

Terminal assignment
Operating Instructions – MOVIDRIVE
®
modular
132
Representa-
tion
Terminals Connection Brief description motor encoder Sin/Cos
encoder, TTL encoder
15
9
1
8
X15_1:1 X15_2:1 A (COS +) (K1) Signal track A (COS+) (K1)
X15_1:2 X15_2:2 B (SIN +) (K2) Signal track B (SIN+) (K2)
X15_1:3 X15_2:3 C (K0) Signal track C (K0)
X15_1:4 X15_2:4 DATA+
1)
Data cable for electronic nameplate
X15_1:5 X15_2:5 Reserved –
X15_1:6 X15_2:6 -TEMP_M Motor temperature evaluation
X15_1:7 X15_2:7 Reserved –
X15_1:8 X15_2:8 GND Reference potential
X15_1:9 X15_2:9 A (COS -) (K1) Negated signal track A (COS-) (K1)
X15_1:10 X15_2:10 B (SIN -) (K2) Negated signal track B (SIN-) (K2)
X15_1:11 X15_2:11 C (K0) Negated signal track C (K0)
X15_1:12 X15_2:12 DATA-
1)
Data cable for electronic nameplate
X15_1:13 X15_2:13 U
S24VG
24 V encoder supply
X15_1:14 X15_2:14 +TEMP_M Motor temperature evaluation
X15_1:15 X15_2:15 U
S12VG
12 V encoder supply
1) For encoders from SEW‑EURODRIVE with electronic nameplate in type E.7S
Representa-
tion
Terminals Connection Brief description motor encoder HTL en-
coder
15
9
1
8
X15_1:1 X15_2:1 A (K1) Signal track A (K1)
X15_1:2 X15_2:2 B (K2) Signal track B (K2)
X15_1:3 X15_2:3 C (K0) Signal track C (K0)
X15_1:4 X15_2:4 Reserved –
X15_1:5 X15_2:5 Reserved –
X15_1:6 X15_2:6 -TEMP_M Motor temperature evaluation
X15_1:7 X15_2:7 Reserved –
X15_1:8 X15_2:8 GND Reference potential
X15_1:9 X15_2:9 A (K1) Negated signal track A (K1)
X15_1:10 X15_2:10 B (K2) Negated signal track B (K2)
X15_1:11 X15_2:11 C (K0) Negated signal track C (K0)
X15_1:12 X15_2:12 Reserved –
X15_1:13 X15_2:13 U
S24VG
24 V encoder supply
X15_1:14 X15_2:14 +TEMP_M Motor temperature evaluation
X15_1:15 X15_2:15 U
S12VG
12 V encoder supply
24748536/EN – 11/2017
