4
Installation
Wiring diagrams
Operating Instructions – MOVIDRIVE
®
modular
144

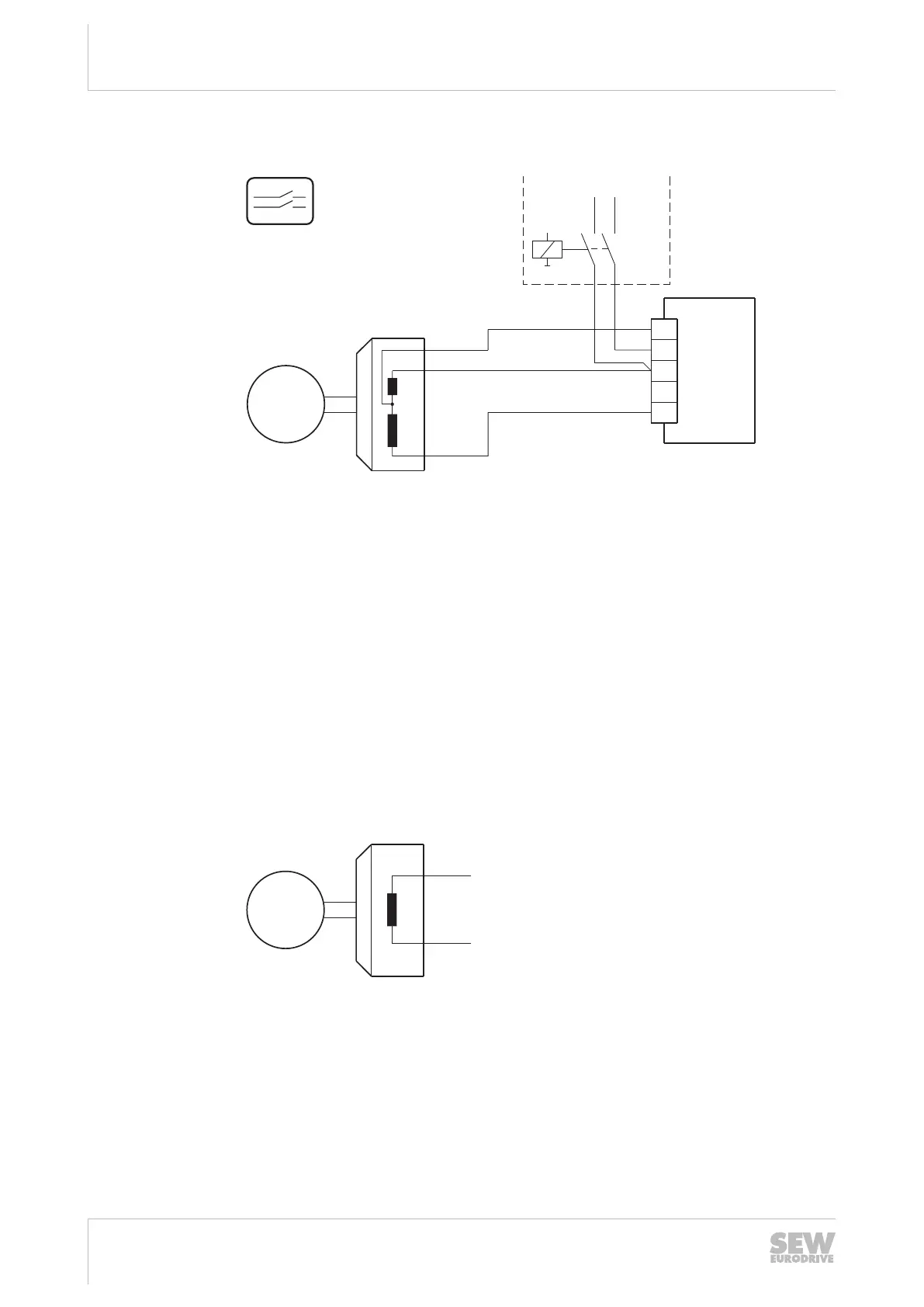

BSG brake control
M
4
1
3
2
TS
BS
BU
BSG
RD
WH
DC 24 V
+ -
5
DB00
GND
AC
DC
14324597131
Direct control DC 24V brake
If the system complies with the following specifications for direct brake control, a BK or
BP brake (holding brake) can also be controlled directly via the brake output of an ap-
plication inverter.
Specifications for direct brake control:
• Only the BK brakes of the CMP40–63 motor and the BP brake of the CMP71 mo-
tor are permitted.
• Expressly excluded are brakes of the motor types CMP80 and greater, CMPZ mo-
tors, and all non-SEW brakes.
• Only prefabricated brakemotor cables from SEW‑EURODRIVE must be used.
• The brakemotor cable must be shorter than 25 m.
• The shielding of the brake cable must be connected to the shielding plate.
Observe additional information in the "Synchronous Servomotors" catalog.
M
DB00
GND
+
-
14333605771
