Installation

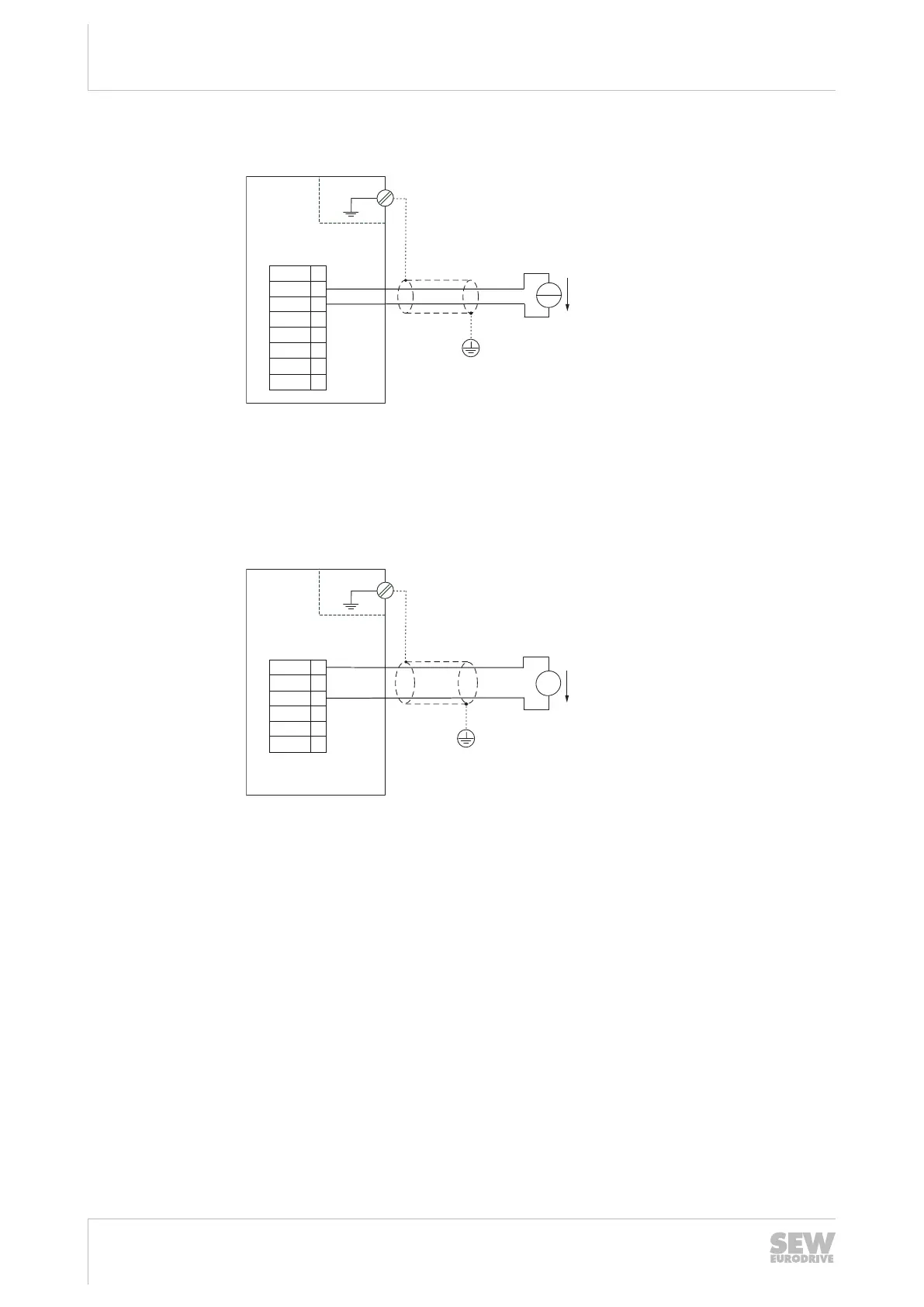

Wiring diagrams
Operating Instructions – MOVIDRIVE
®
modular
150
Current input
0 (4) – 20 mA
+
-
2
X50
1
3
4
5
6
8
7
REF1
AI21
AI22
GND
AI31
AI32
GND
REF2
9007213575398539
Connection to the terminals AI31 and AI32 is carried out analogously to the connec-
tion to the terminals AI21 and AI22 shown in the wiring diagrams.
Observe the switch position of DIP switch S50 when activating the current input.
Voltage output
-10 – 0 – +10 V
+
-
2
X51
1
3
4
5
6
AOV2
AOC2
GND
AOV3
AOC3
GND
V
18014412830141963
Connection to the terminals AOV3 and GND is carried out analogously to the connec-
tion to the terminals AOV2 and GND shown in the wiring diagram.
