Technical Data

Technical data of braking resistors, filters and chokes

Operating Instructions – MOVIDRIVE

modular

248

20917778571

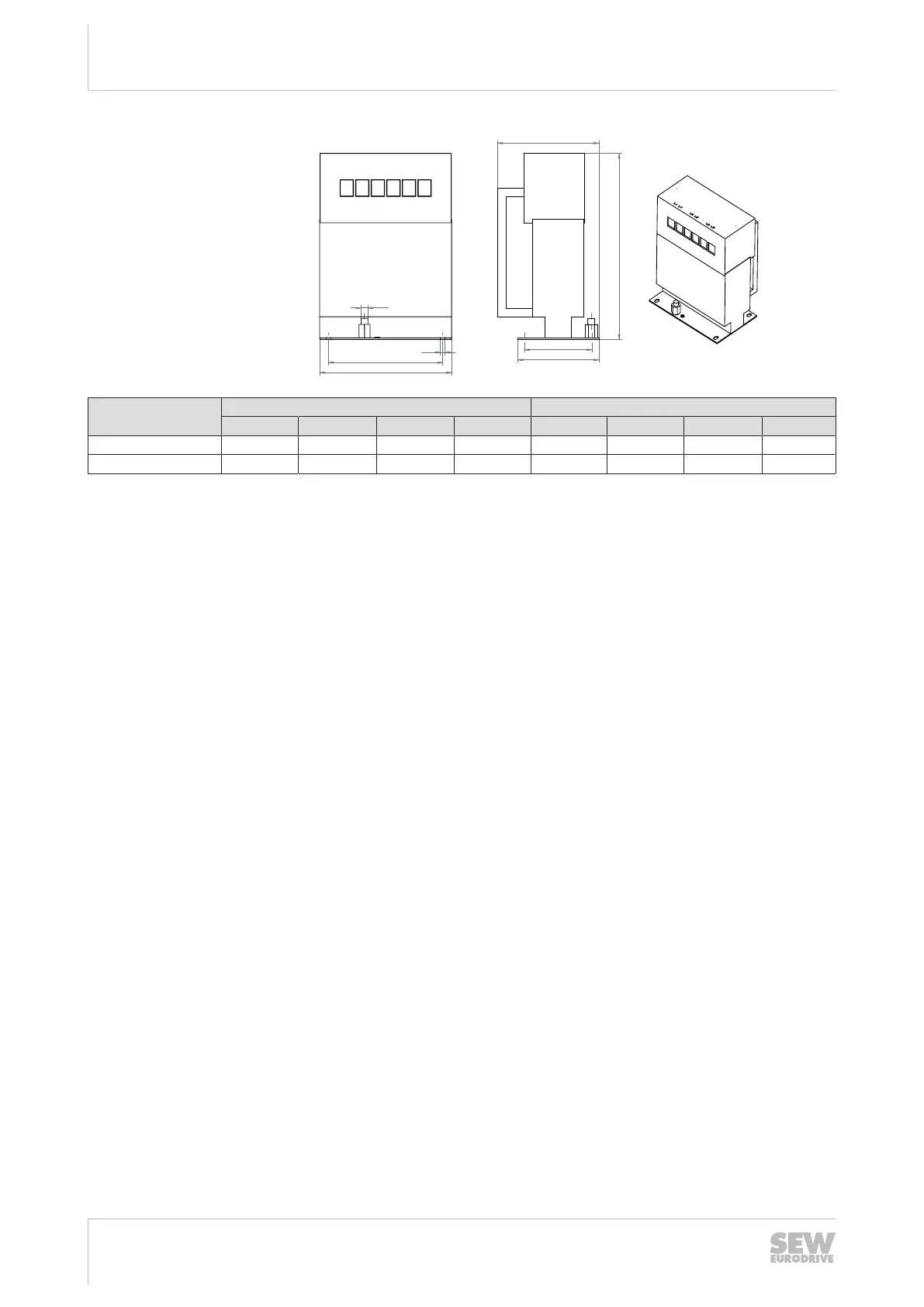

Line choke Main dimensions in mm Mounting dimensions in mm

A B C E a b d PE

ND0910-503 156 96 220 120 135 80 5.8 M8

ND1800-503 187 121 260 153 166 93 6.2 M10

24748536/EN – 11/2017
