Functional safety
Connection variants
Operating Instructions – MOVIDRIVE
®
modular
261
Wiring diagrams

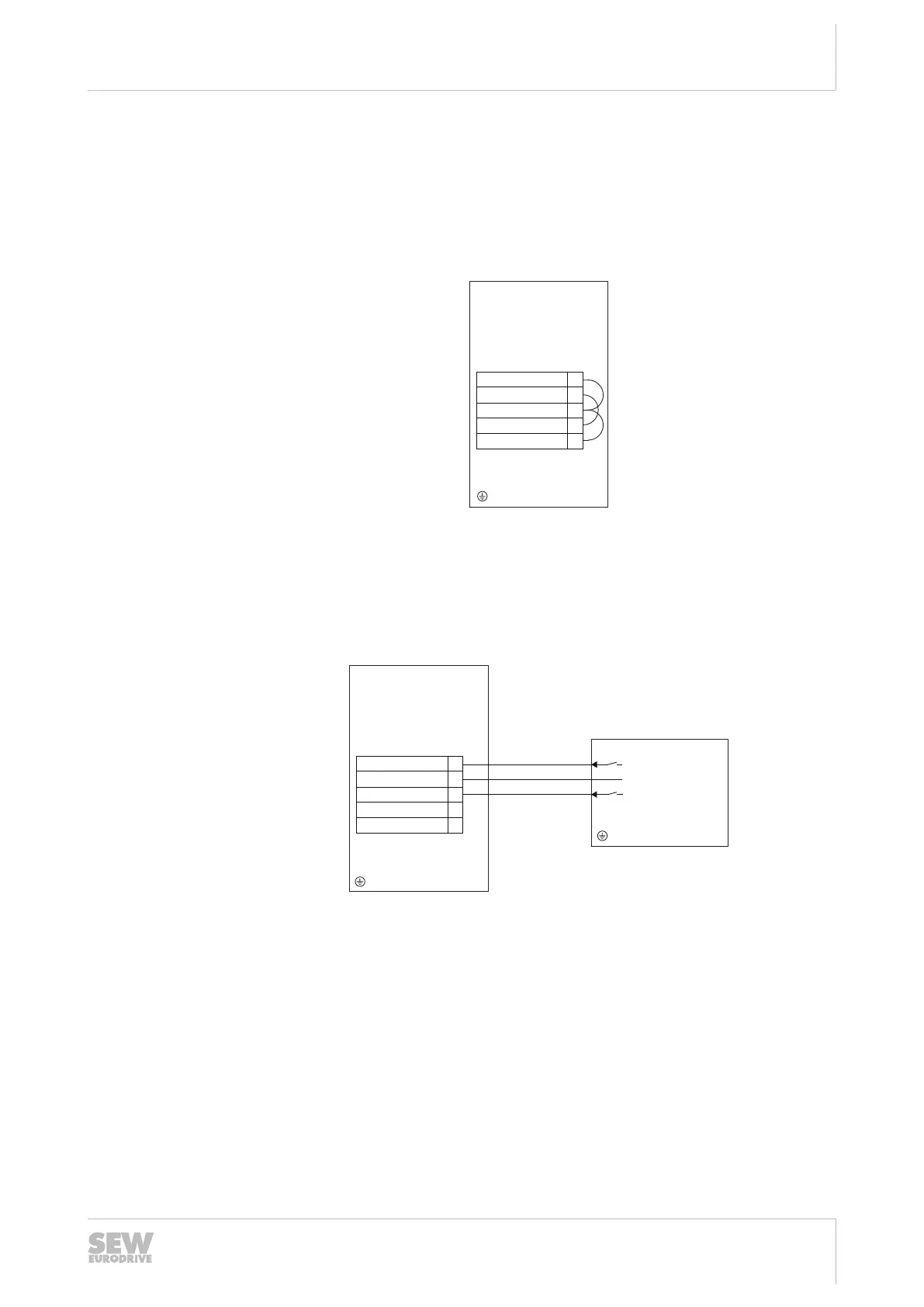

Delivery state
In delivery state, the terminals at the connection for safe disconnection X6 are
jumpered.
2
X6
1
3
4
5
F_STO_P1
F_STO_M
F_STO_P2
GND
24 V STO_OUT
[1]
9007214807030283
[1] Axis module
2-pole sourcing
[2]
2
X6
1
3
4
5
F_STO_P1
F_STO_M
F_STO_P2
GND
24 V STO_OUT
F-DO_P1
F-DO_P2
GND
[1]
9007214803886091
[1] Axis module
[2] External safety device
