Installation

Electrical installation

Operating Instructions – MOVIDRIVE

modular

Connection with 2 cables

20119708427

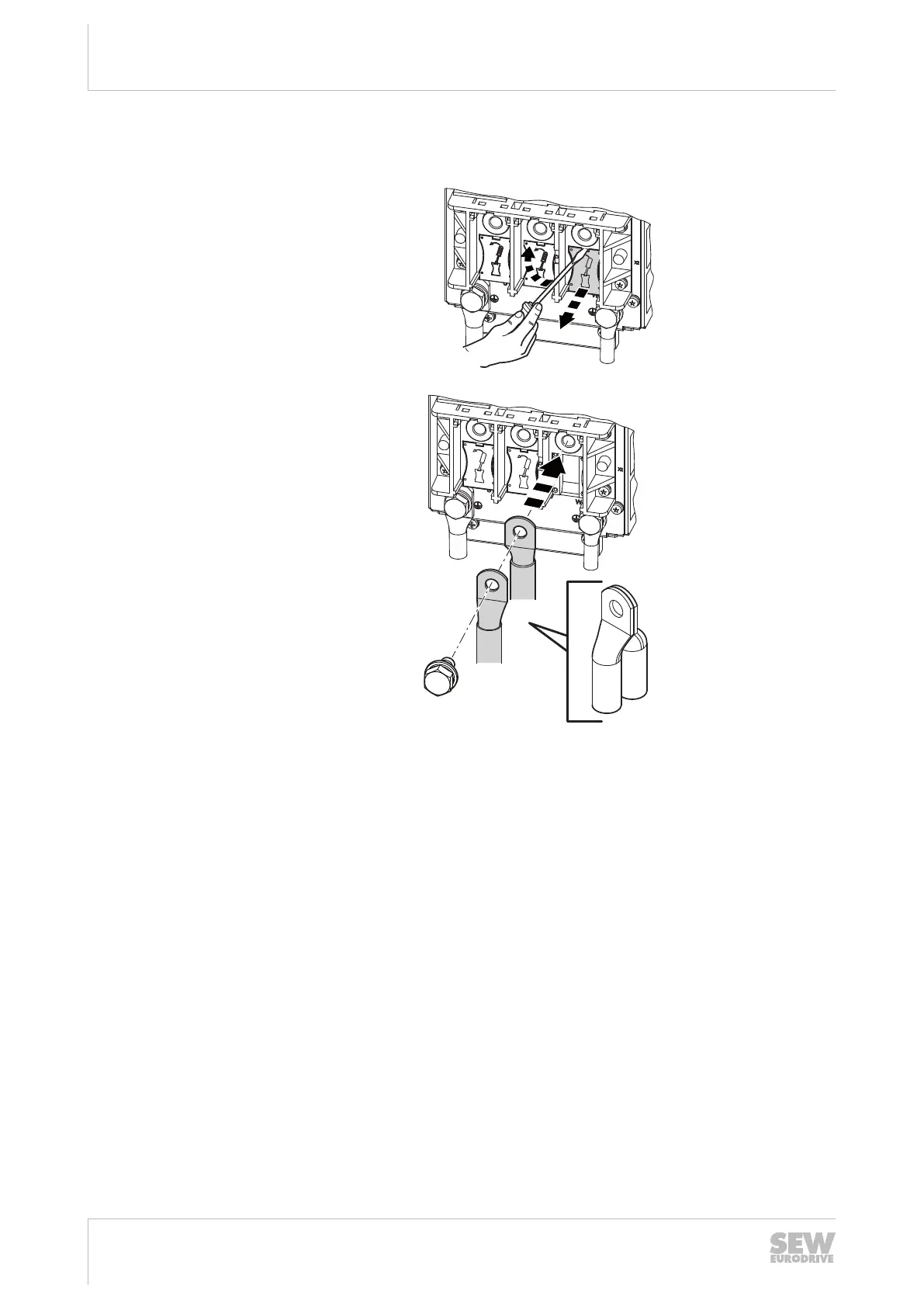

1. Remove the plastic plate in the connection block as depicted in the figure above.

2. Attach a heat shrink tubing at the ring lugs.

3. Connect the 2 cables as depicted in the figure above.

4. Attach the protection caps, see chapter "Protection caps"(→262).

24748536/EN – 11/2017
