Installation
Installing options and accessories
Operating Instructions – MOVIDRIVE
®
modular
97

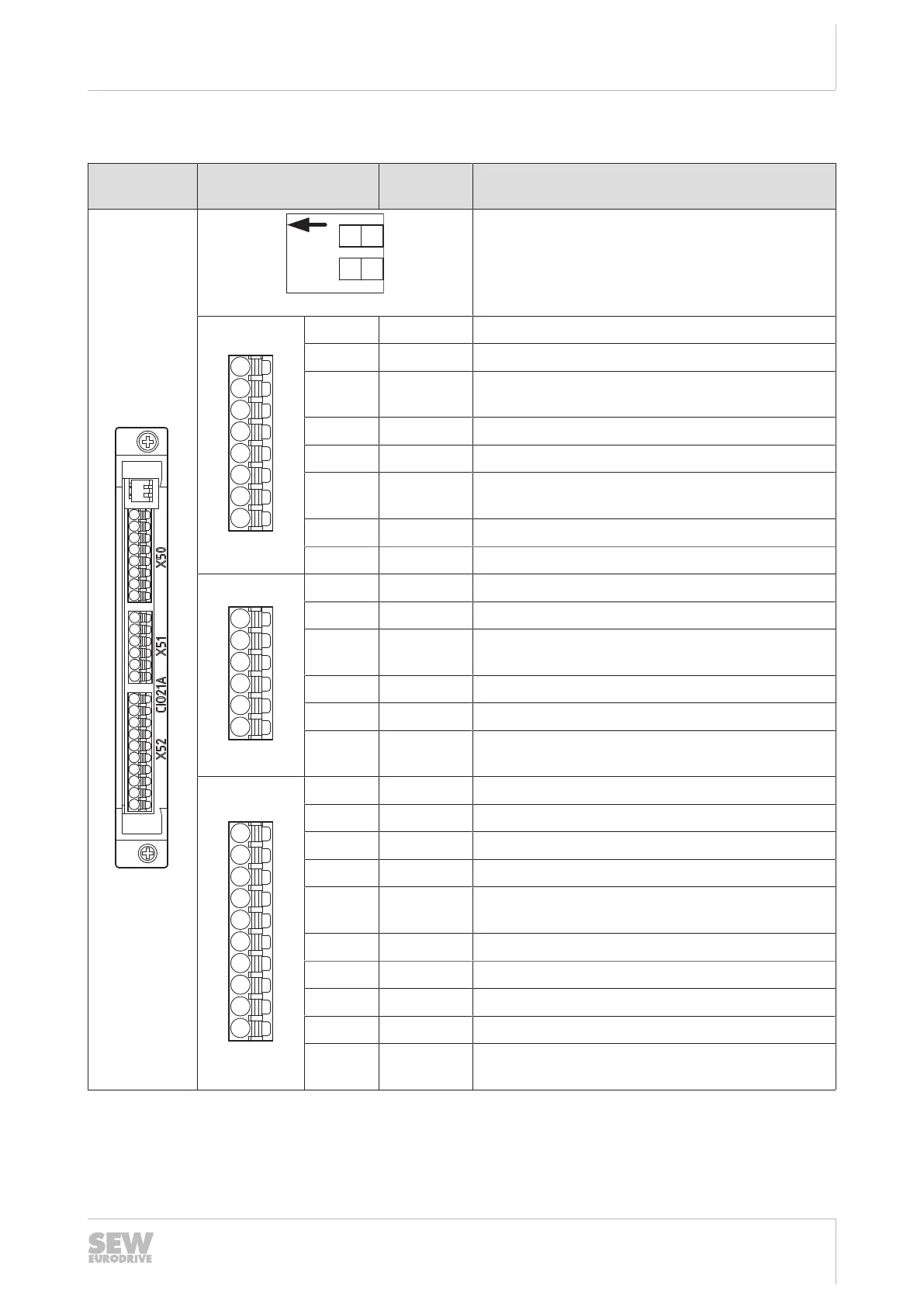

CIO21A terminal assignment
Terminal Connec-
tion
Short description
S50
ON
1
2
S50/1 on: Current input active for AI2x
S50/2 on: Current input active for AI3x
S50/1 off
1)
: Voltage input active for AI2x
S50/2 off
1)
: Voltage input active for AI3x
X50:1 REF1 +10V reference voltage output
X50:2 AI21 Analog current and voltage input
X50:3 AI22 Analog current and voltage input, reference for
AI21
X50:4 GND Reference potential
X50:5 AI31 Analog current and voltage input
X50:6 AI32 Analog current and voltage input, reference for
AI31
X50:7 GND Reference potential
X50:8 REF2 -10V reference voltage output
X51:1 AOV2 Analog voltage output 1, freely programmable
X51:2 AOC2 Analog current output 1, freely programmable
X51:3 GND Reference potential for the outputs AOV2 and
AOC2
X51:4 AOV3 Analog voltage output 2, freely programmable
X51:5 AOC3 Analog current output 2, freely programmable
X51:6 GND Reference potential for the outputs AOV3 and
AOC3
X52:1 DI10 Digital input 1, freely programmable
X52:2 DI11 Digital input 2, freely programmable
X52:3 DI12 Digital input 3, freely programmable
X52:4 DI13 Digital input 4, freely programmable
X52:5 GND Reference potential for the digital inputs DI10 –
DI13
X52:6 DO10 Digital output 1, freely programmable
X52:7 DO11 Digital output 2, freely programmable
X52:8 DO12 Digital output 3, freely programmable
X52:9 DO13 Digital output 4, freely programmable
X52:10 GND Reference potential for the digital outputs DO10 –
DO13
1) Delivery state
