MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 3

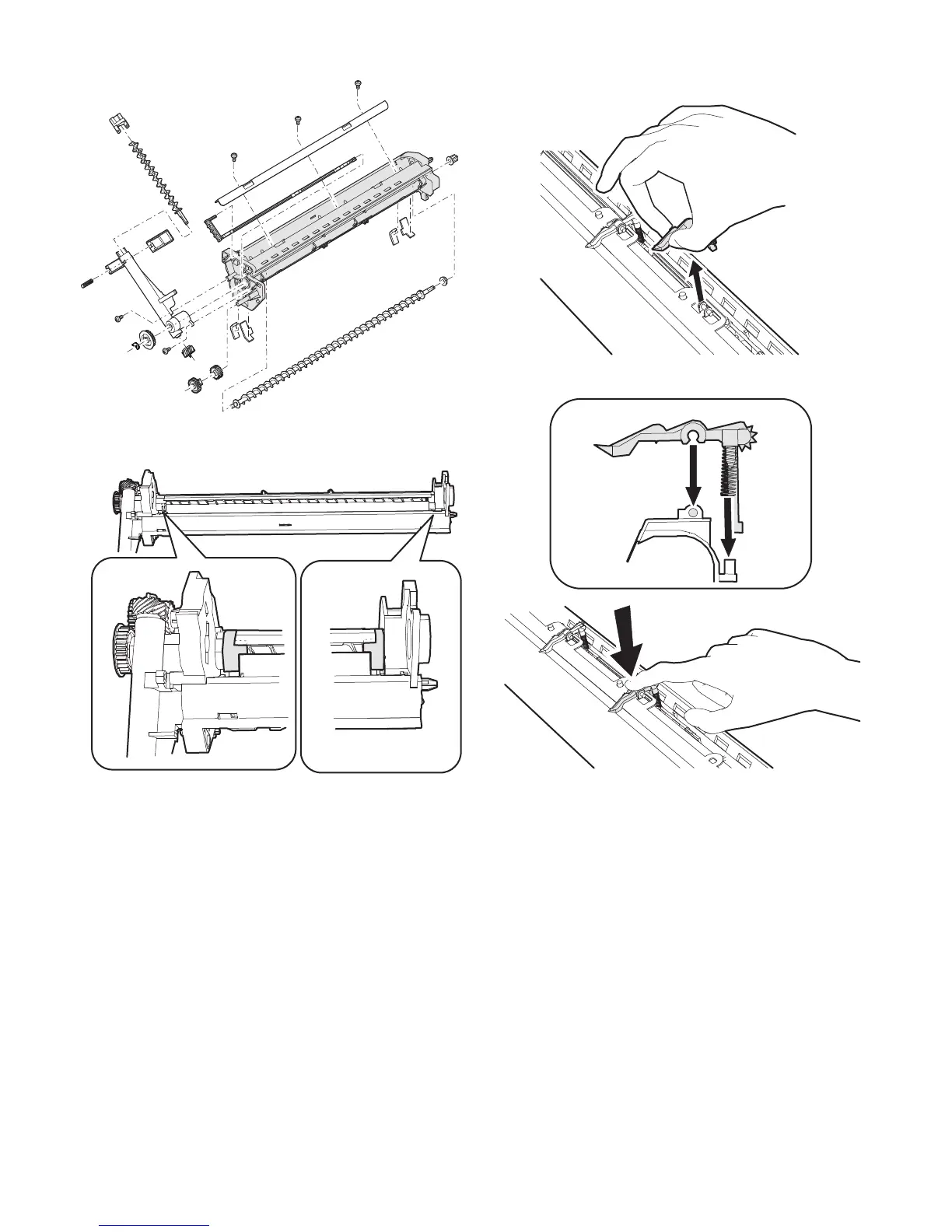

(3) Drum frame unit

(4) Moquette F/R

CAUTION: If it disturbs the blade movement, replace it and attach

new one.

(5) Separation pawl

Disassembly * Hold the tip of the separation pawl and remove it.

Assembly * Press the center of the separation pawl and install it.
