MX-M264U ADJUSTMENTS AND SETTINGS 5 – 25

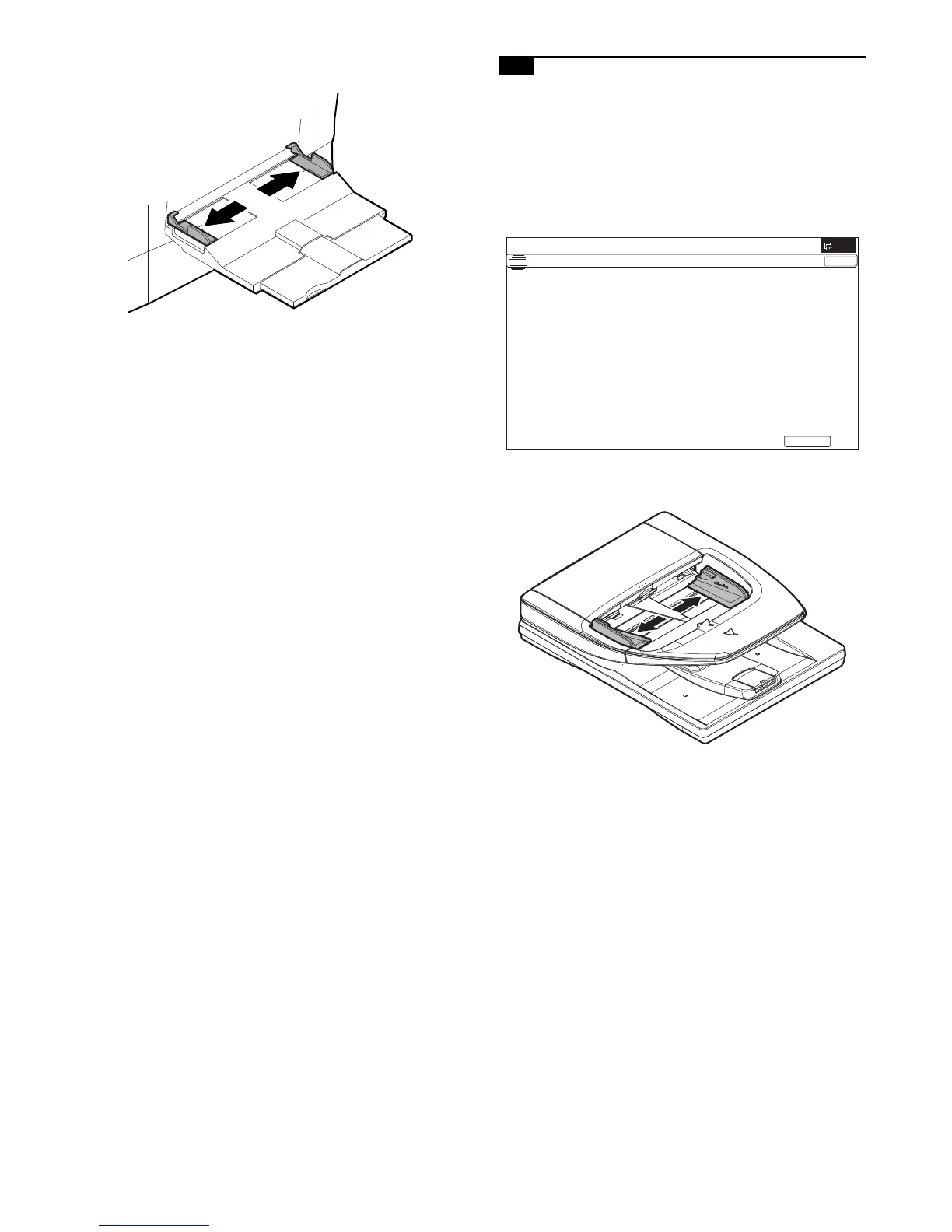

2) Open the manual paper feed guide to the maximum width posi-
tion.
3) Press [EXECUTE] key.
[EXECUTE] key is highlighted. Then it returns to the normal
display.
The maximum width position detection level of the manual
paper feed guide is recognized.
4) Set the manual paper feed guide to the A4R size.
5) Press [EXECUTE] key.
[EXECUTE] key is highlighted. Then it returns to the normal
display.
The A4R size width position detection level of the manual
paper feed guide is recognized.
6) Set the manual paper feed guide to the width for the A5R size.
7) Press [EXECUTE] key.
[EXECUTE] key is highlighted. Then it returns to the normal
display.
Set the manual paper feed guide to the width for the A5R size.
8) Open the manual paper feed guide to the minimum width posi-
tion.
9) Press [EXECUTE] key.
[EXECUTE] key is highlighted. Then it returns to the normal
display.
The minimum width position detection level of the manual
paper feed guide is recognized.
If the above operation is not completed normally, "ERROR" is dis-
played.
When the operation is completed normally, the above data are
saved to the memory and "COMPLETE" is displayed.
9-B RSPF paper feed tray document size (width)
sensor adjustment
This adjustment must be performed in the following cases:
* The RSPF paper feed tray section has been disassembled.
* The RSPF paper feed tray unit has been replaced.
* When a U2 trouble occurs.
* The scanner PWB has been replaced.
* The EEPROM on the scanner PWB has been replaced.
1) Enter the SIM 53-6 mode.
2) Open the RSPF paper feed guide to the maximum width posi-
tion.
3) Press [EXECUTE] key.
The maximum width detection level is recognized.
4) Open the RSPF paper feed guide to the width for the A4R size.
5) Press [EXECUTE] key.
The A4R width detection level is recognized.
6) Open the RSPF paper feed guide to the width for the A5R size.
7) Press [EXECUTE] key.
The A5R width detection level is recognized.
8) Open the RSPF paper feed guide to the minimum width posi-
tion.
9) Press [EXECUTE] key.
The minimum width detection level is recognized.
When each of the above operations has been completed, the
"COMPLETE" message appears; when any of the operations has
failed, the "ERROR" message appears.
