Sharp MX-M264N Service Manual

MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 18

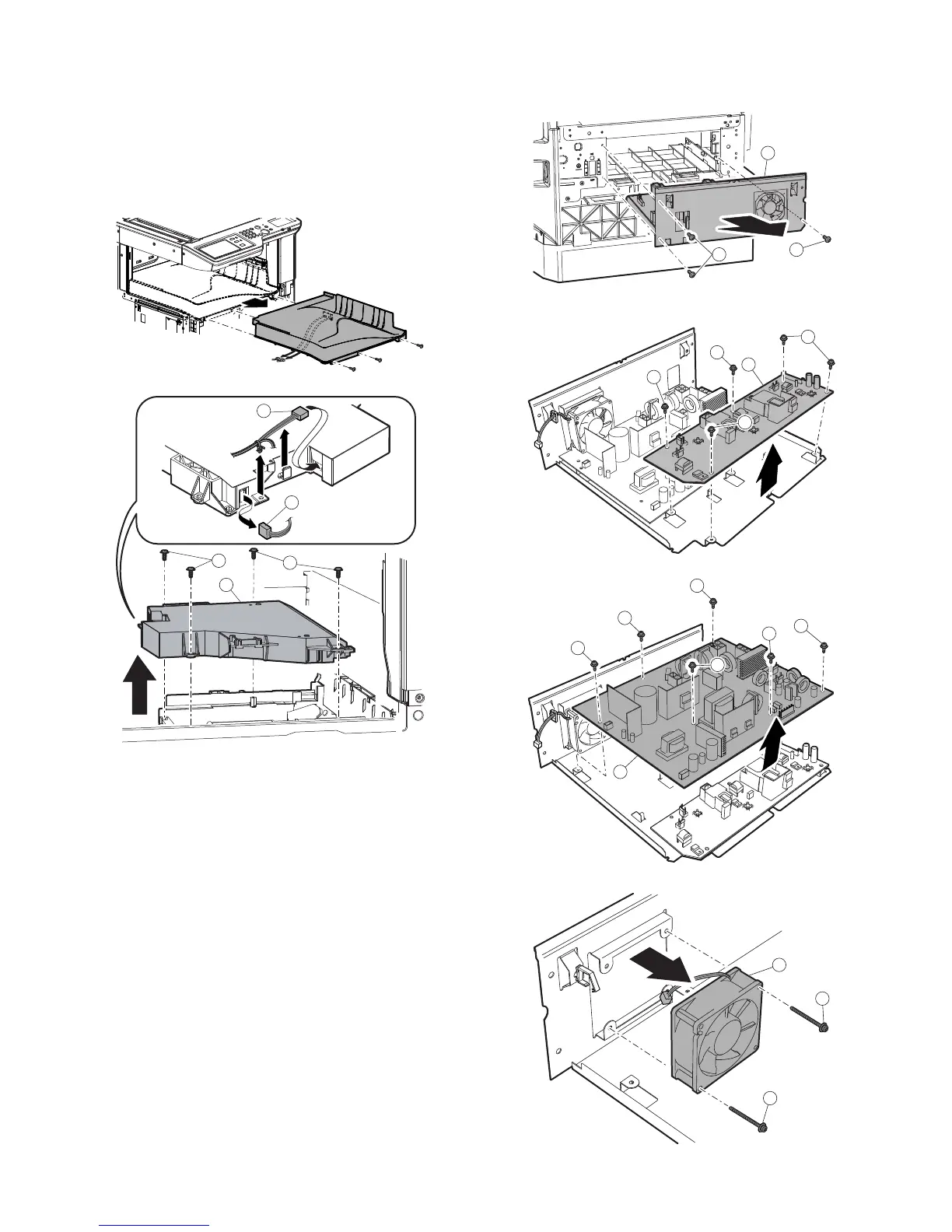

8. Laser unit
CAUTION: Do not disassemble the LSU unit.
A. LSU
1) Turn OFF the machine power, and disconnect the power plug
from the power outlet.
2) Remove the left cabinet and exit tray.
3) Disconnect the LSU connector, and remove the securing
screws to remove the LSU.
9. Power unit
A. Power source
CAUTION: Disconnect the connector, and remove the unit.
2
3
2
1
1
1
1
2
1
1
1
1
2
1
1
1
1
2
1
1
2
1
1

Sharp MX-M264N Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Standard Paper Capacity	1100 sheets
Max Paper Capacity	2100 sheets
Automatic Duplexing	Yes
ADF Capacity	100 sheets
Scan Resolution	600 x 600 dpi
Copy Speed	26 cpm
Copy Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
