Sharp MX-M264N Service Manual

MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 7

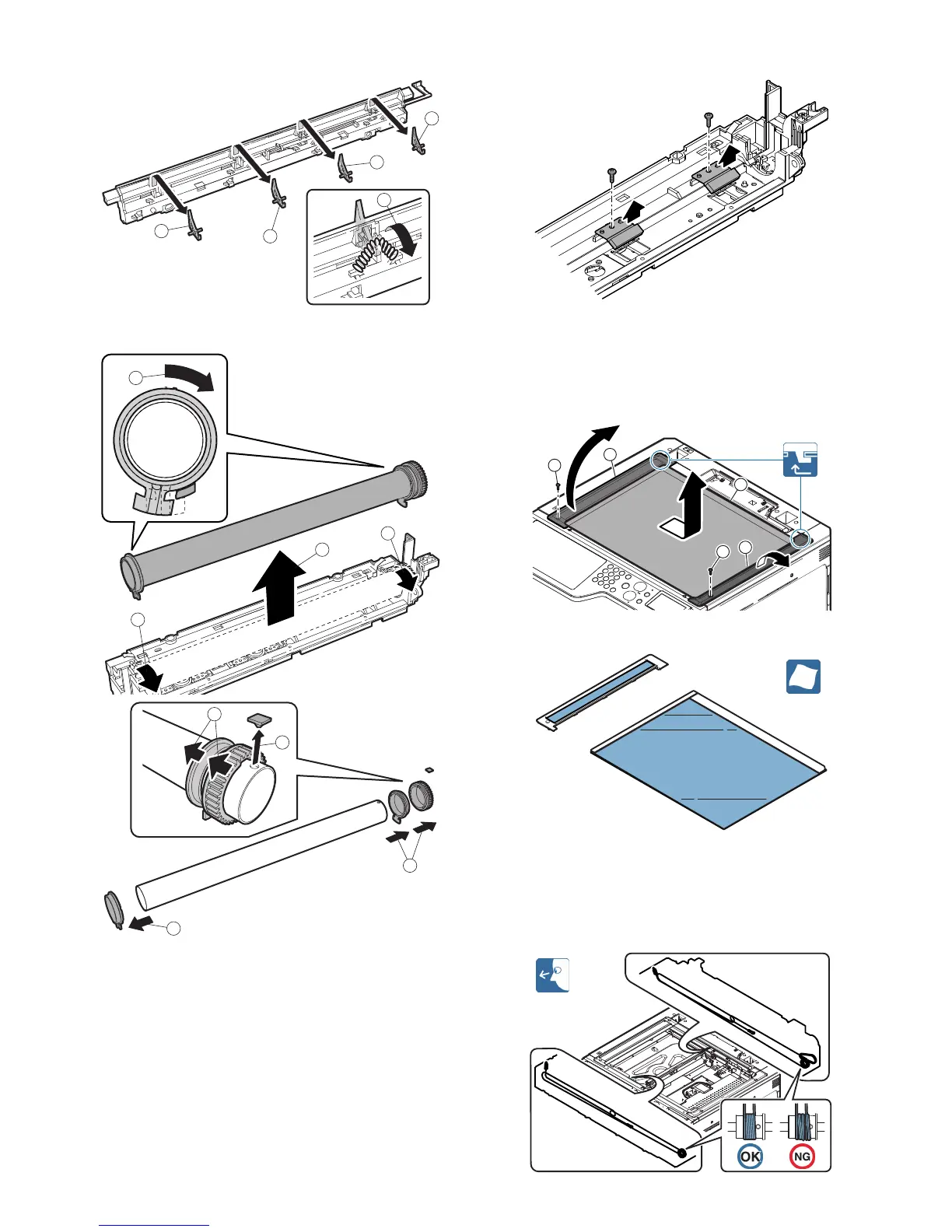

H. Fusing separation pawl (upper)
I. Upper heat roller
J. Thermistor cleaning pad
4. Optical section
A. Table glass, SPF glass
1) Remove the glass holder. and the table glass. Remove the
table glass, and the SPF glass.
2) Clean the both surfaces of the table glass, and the SPF glass.
B. Drive belt, Drive wire
1) Remove the table glass.
2) Check the tension of the drive belt and the drive wire. Check to
confirm that the drive wire in the winding pulley is wound with-
out clearance.
2
2
2
2
1
1
1
1
2
1
2
3
3
1
4
5
2
3
