Sharp MX-M264N Service Manual

MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 4

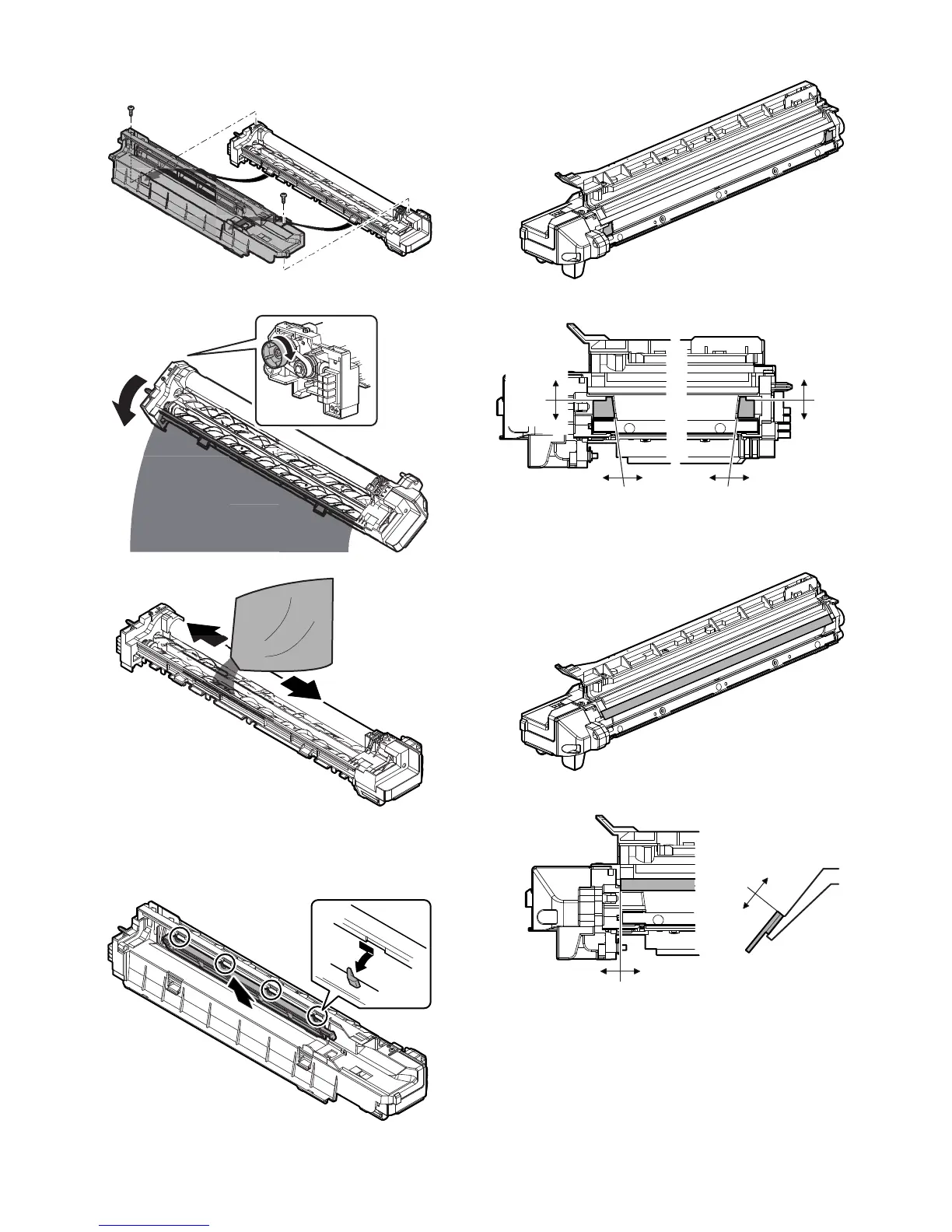

2. Developing section
A. Developer
Turn the MG roller to discharge developer.
B. Toner filter unit
With the guide AS (cover) removed, replace it.
When replacing, clean the guide AS.
C. DV side sheet F/ DV side sheet R
DV side sheet F/ DV side sheet R attachment reference
D. DV blade
DV blade attachment reference
00.5 0 0.5
0
0.3
0
0.3
Projection edge
reference
Projection edge
reference
Molt
edge
reference
Molt
edge
reference
0
0.5
[Cross-section]
0
0.5
Bump
reference
Rib reference

Sharp MX-M264N Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Standard Paper Capacity	1100 sheets
Max Paper Capacity	2100 sheets
Automatic Duplexing	Yes
ADF Capacity	100 sheets
Scan Resolution	600 x 600 dpi
Copy Speed	26 cpm
Copy Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
