Sharp MX-M264N Service Manual

MX-M264U EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 4

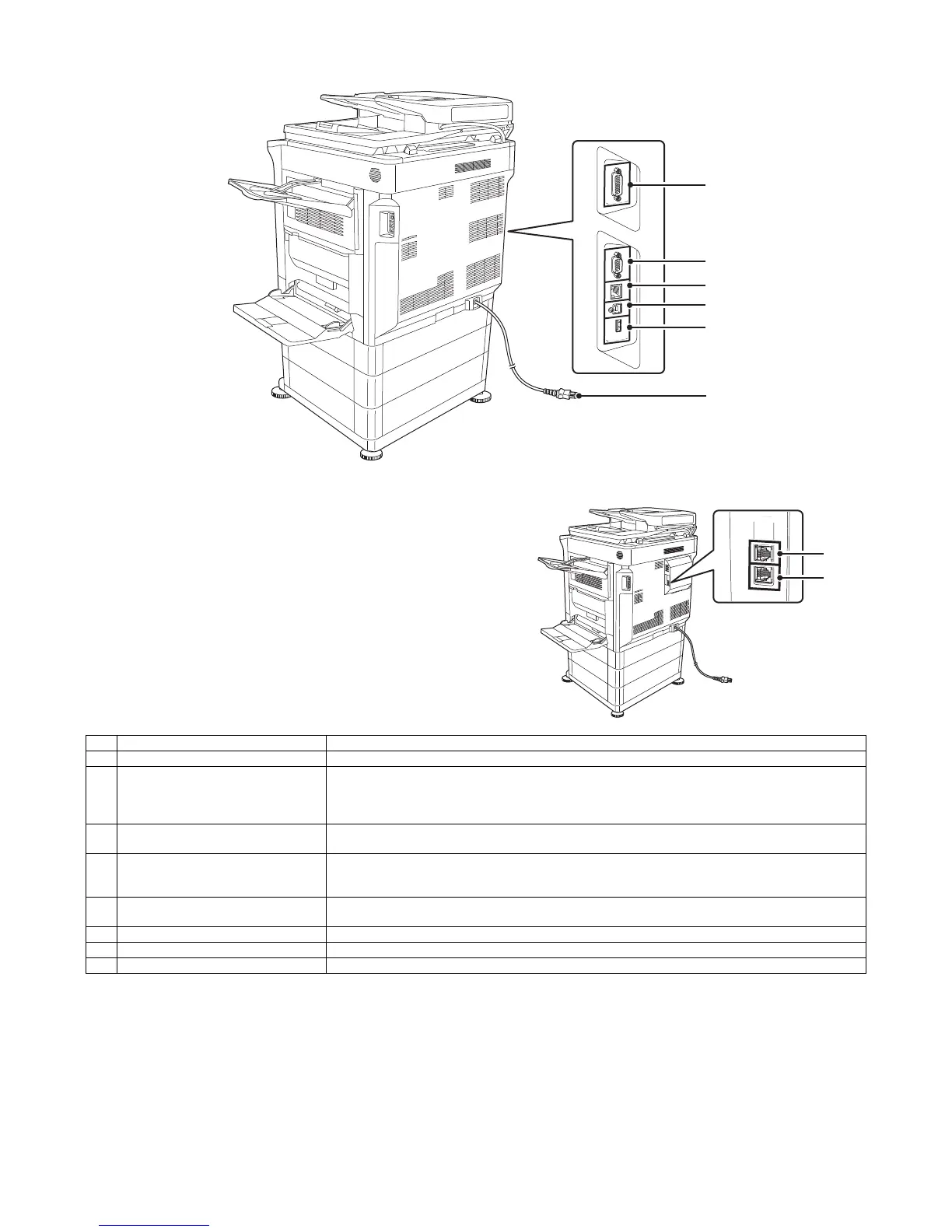

4. I/F connectors
No. Name Function/Operation
1 Connector for the finisher only Connects the finisher.
2 Service-only connector This connector is for use only by service technicians.
Connecting a cable to this connector may cause the machine to malfunction.
Important note for service technicians:
The cable connected to the service connector must be less than 118" (3 m) in length.
3 LAN connector Connect the LAN cable to this connector when the machine is used on a network.
For the LAN cable, use a shielded type cable.
4 USB connector (B type) Supports USB 2.0 (Hi-Speed).
A computer can be connected to this connector to use the machine as a printer.
For the USB cable, use a shielded cable.
5 USB connector (A type) Supports USB 2.0 (Hi-Speed).
This is used to connect a USB device such as USB memory to the machine.
6 Power plug
7 Extension phone jack When the fax function of the machine is used, an extension phone can be connected to this jack.
8 Telephone line jack When the fax function of the machine is used, the telephone line is connected to this jack.
When a fax expansion kit is installed
6
7
8
2
1
3
4
5

Sharp MX-M264N Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	26 ppm
Max Print Resolution	600 x 600 dpi
Standard Paper Capacity	1100 sheets
Max Paper Capacity	2100 sheets
Automatic Duplexing	Yes
ADF Capacity	100 sheets
Scan Resolution	600 x 600 dpi
Copy Speed	26 cpm
Copy Resolution	600 x 600 dpi
Connectivity	Ethernet, USB
