Sharp MX-M264N Service Manual

MX-M264U DISASSEMBLY AND ASSEMBLY 10 – 15

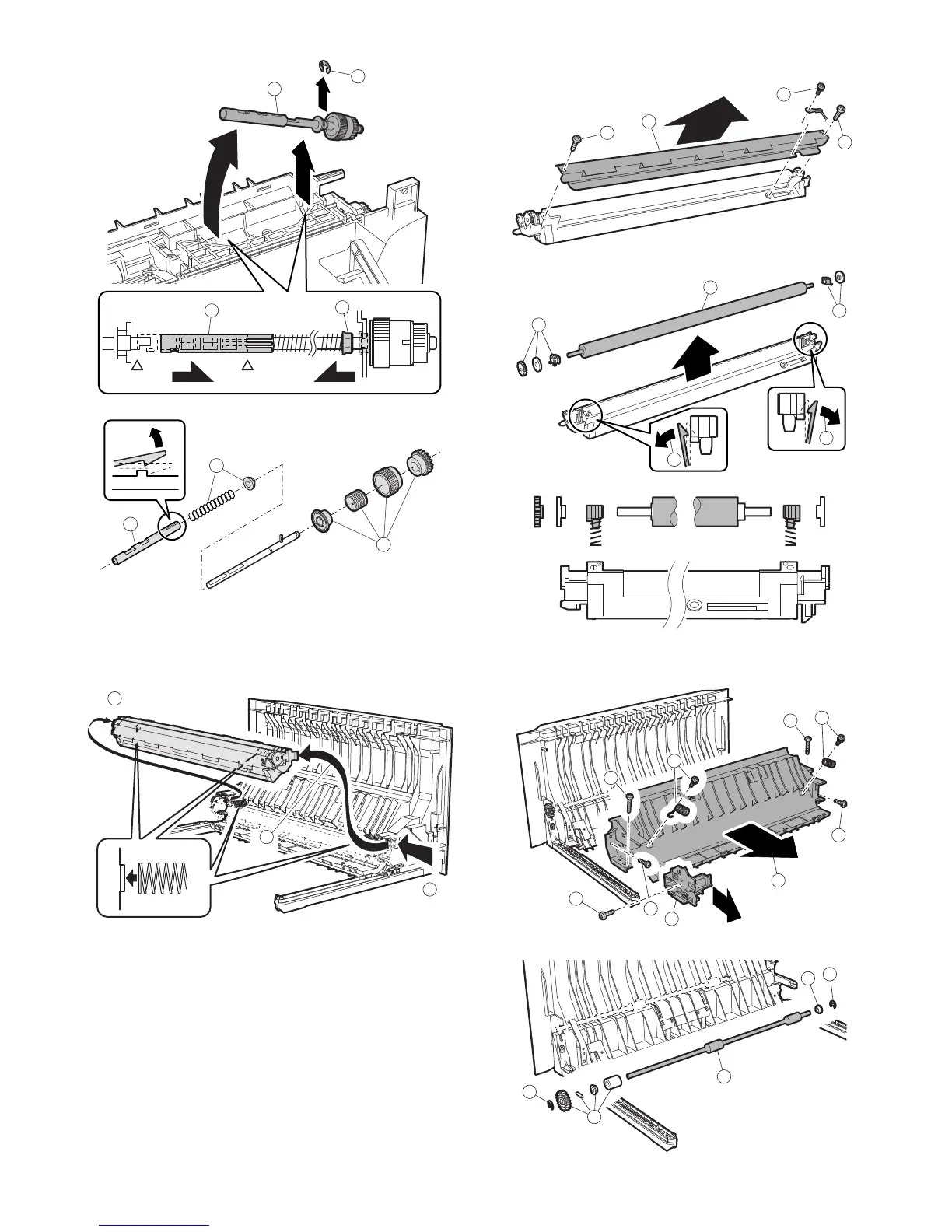

6. Side door unit
A. Transport roller unit
* Check that two springs are securely inserted into the transfer
roller unit bosses.
B. Transport roller
C. DUP transport roller
4
1
2
3
3
1
2
1
2
3
1
1
1
2
1
1
2
3
3
4
2
3
3
3
3
3
3
1
1
1
3
2
2
